Rockwell Automation 9303 DRIVE TOOLS 32 VER 2.50 GETTING STARTED User Manual
Page 50
5-10
Setting Up DH+ Direct Communications
8.
If you are using a 1336 FORCE and its drive firmware version is 0.10,
select 1336T Two Word Header (used ONLY for 1336T version 0.10).
9.
Click OK.
Connecting to the Drive
After configuring RSLinx and the DriveTools32 application, you are ready to
connect to the drive.
1.

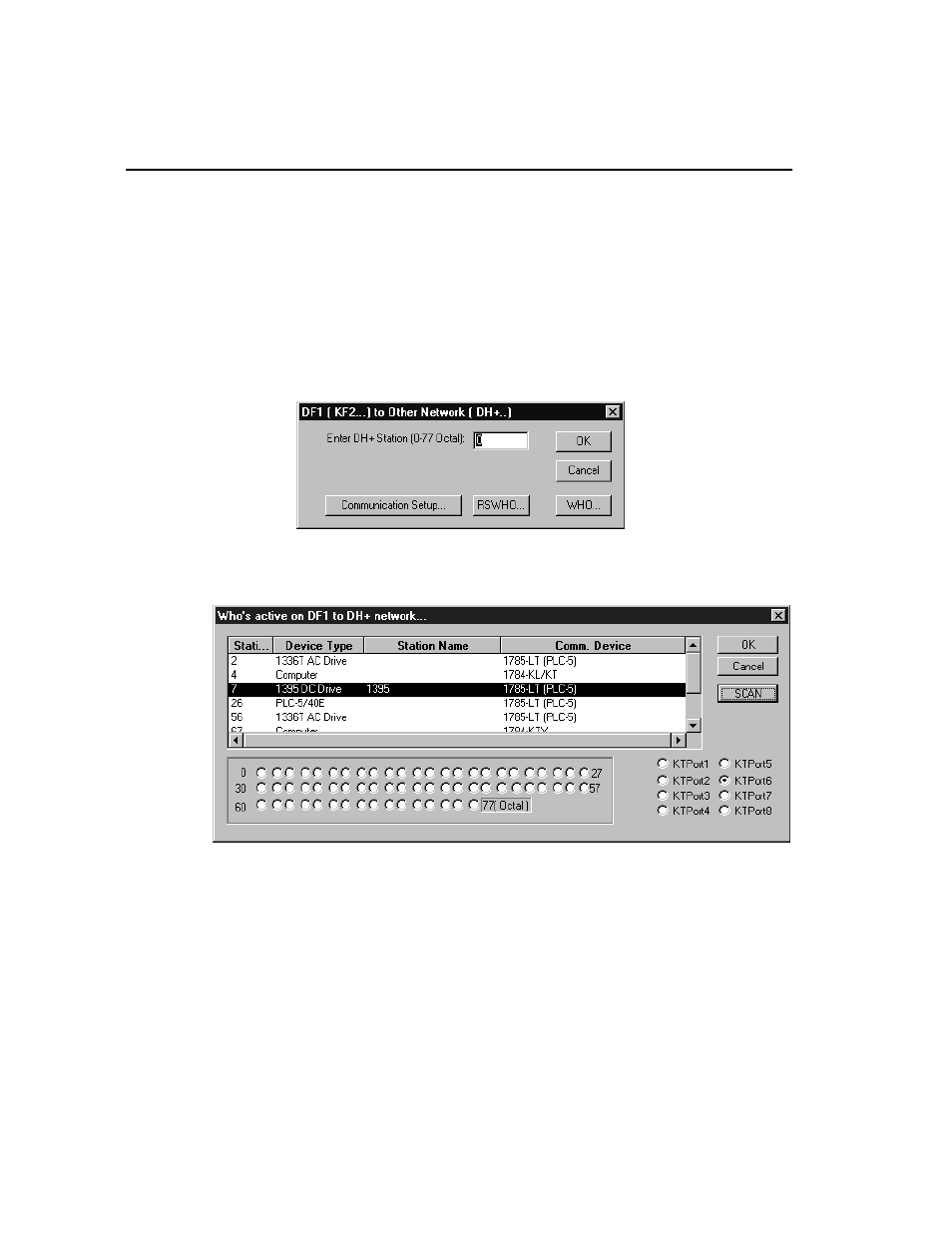

In the Drive menu, select Connect to Drive. The DF1(KF2...) to Other
Network (DH+...) dialog box appears.
2.
Click WHO. The WHO’s active on DF1 to DH+ network dialog box
appears.
3.
Double-click the station to which you want to connect.
The DriveTools32 application is now communicating with the drive. If you are
prompted to create a new database, click Yes.
Important: If a prompt appears to alert you that the application failed to
communicate with the drive, refer to Chapter 16, Troubleshooting.
