5-6 Setting Up DH+ Direct Communications
Setting Up Communications in a DriveTools32 Application
Before a DriveTools32 application can communicate with a drive, you need to
configure the application. To do so, you need to:
1. Start the DriveTools32 application.

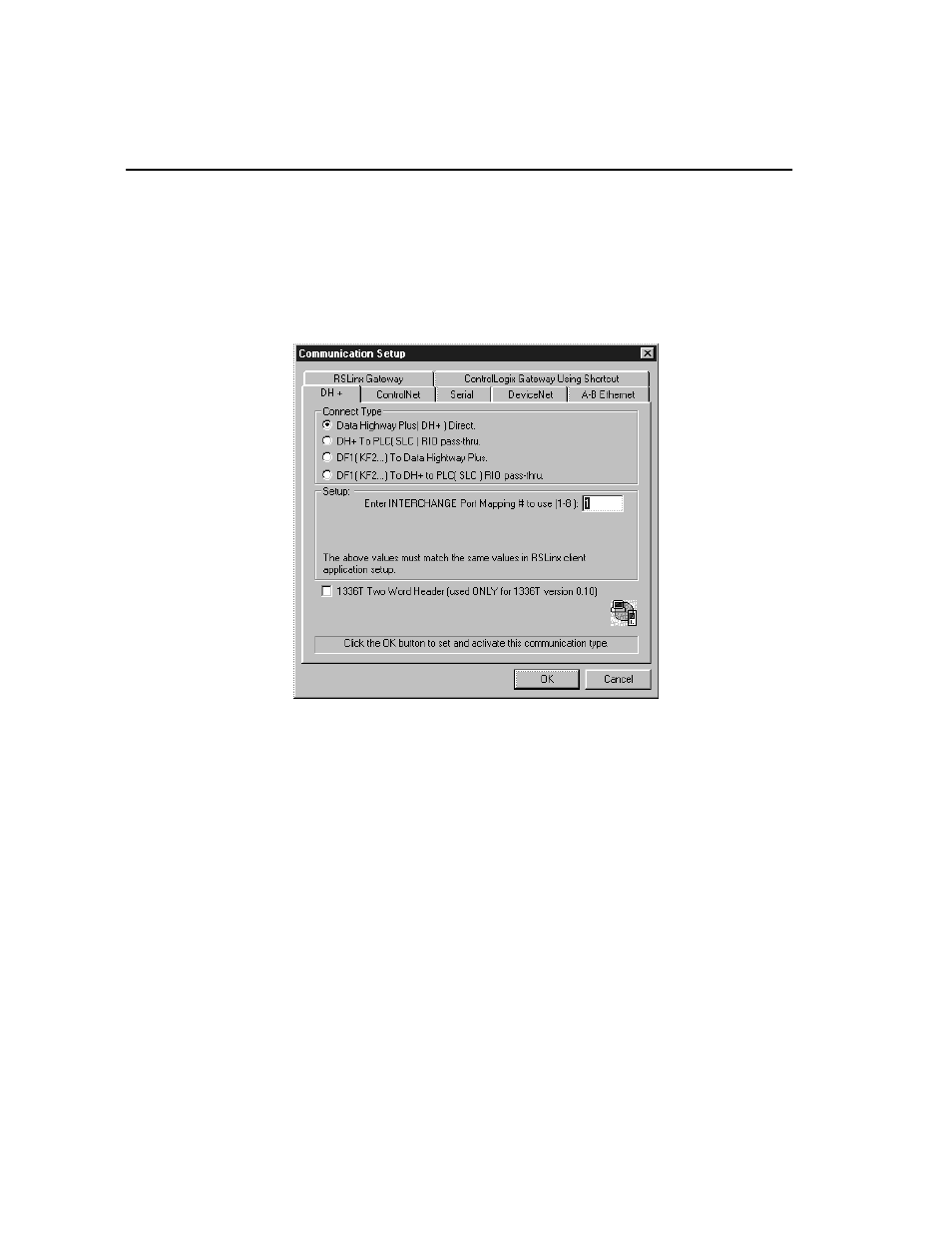

2. In the Options menu, select Communication Setup. The Communication
Setup dialog box appears.
3. Click the DH+ tab.
4. Under Connect Type, select Data Highway Plus (DH+) Direct.
5. In the Enter INTERCHANGE Port Mapping # field, type the number of
the KT:0 port used by the DH+ driver in the RSLinx Configure Client
Applications dialog box.
Important: To view the KT Port number used by the DH+ driver, select
Configure Client Applications in the RSLinx Communications menu.
6. If you are using a 1336 FORCE and its drive firmware version is 0.10,
select 1336T Two Word Header (used ONLY for 1336T version 0.10).
7. Click OK.
