3-4 Setting Up RS-232 Point-to-Point Serial Communications
5. Click OK to accept the default name. The Configure Allen-Bradley DF1

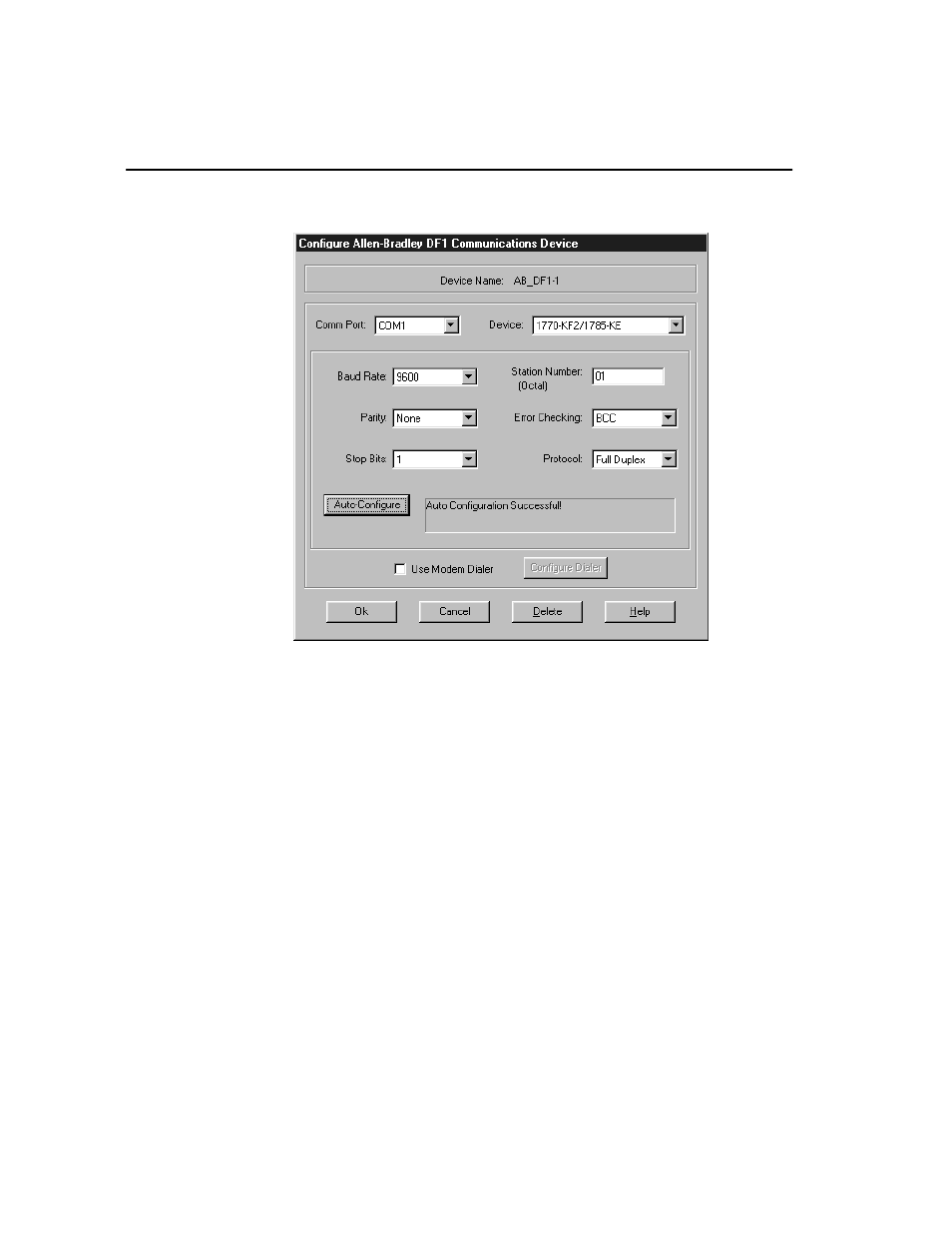

Communications Device dialog box appears.
6. In the Comm Port field, select the communications port that you computer
is using.
Important: Note the communications port and baud rate that you use. When
you configure a DriveTools32 application, you need to enter this information in
the Communication Setup dialog box.
7. In the Device field, select 1770-KF2/1785-KE. If you are using RS-232
serial to ControlNet communications, select KFC 1.5.
8. In the Station Number field, type the station number for your
communications module.
9. Click Auto-Configure to have RSLinx configure your driver automatically.
If the auto-configure was successful, a message box is displayed to inform
you that RSLinx failed to identify the device. If it was unsuccessful,
RSLinx displays why it failed next to the Auto-Configure button.
10. Click OK to acknowledge the message. “Auto-Configuration Successful”
appears next to the Auto-Configure button.
11. In the Station Number field, type a new, unique number. This number will
be the station number of the computer. The adapter and drive use the station
number that was set for the auto-configure.
