29 Publication 1769-UM018A-EN-P - October 2008 29
Chapter
3
Module Data, Status, and Channel
Configuration
Introduction

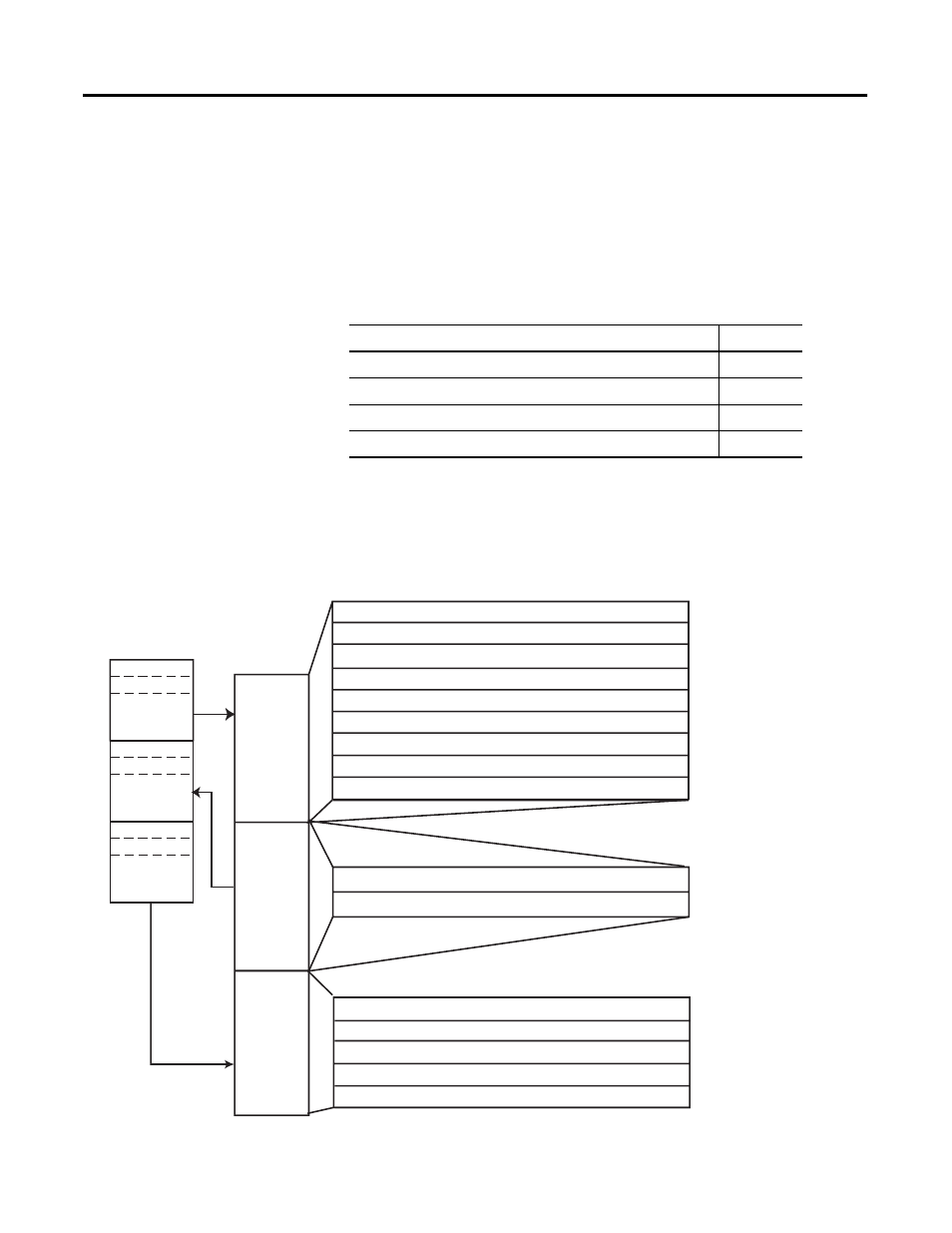

Module Addressing This memory map shows the output, input, and configuration tables
for the modules.
Memory Map
Topic Page
Module Addressing 29
Input Data File 31
Output Data File 33
Configuration Data File 34
…
…
Slot e
Input Image
File
Output Image
File
Configuration
File
Slot e
Slot e
Input
22 Words
Output
2 Words
Configuration
File
92 Words
Channel 15 Configuration Words Words 92…97
Channel 0 Configuration Words Words 2 …7
Cancel High/Low Process Alarm Latch Bits Channels 0…7 Word 0
Channel 0 Data Word Word 0
Enable Time Stamp Word 1, bit 15
Real Time Sample Rate Word 0
Word 1
Time Stamp Value Word Word 16
Channel 15 Data Word Word 15
General Status Bits Word 17
High-/Low-alarm and Over-/Under-range Status Bits Channels 0…3 Word 18
Bit 0
High-/Low-alarm and Over-/Under-range Status Bits Channels 4…7
High-/Low-alarm and Over-/Under-range Status Bits Channels 8…11
High-/Low-alarm and Over-/Under-range Status Bits Channels 12…15
Word 19
Word 20
Word 21
Cancel High/Low Process Alarm Latch Bits Channels 8…15
Bit 15
…
…
