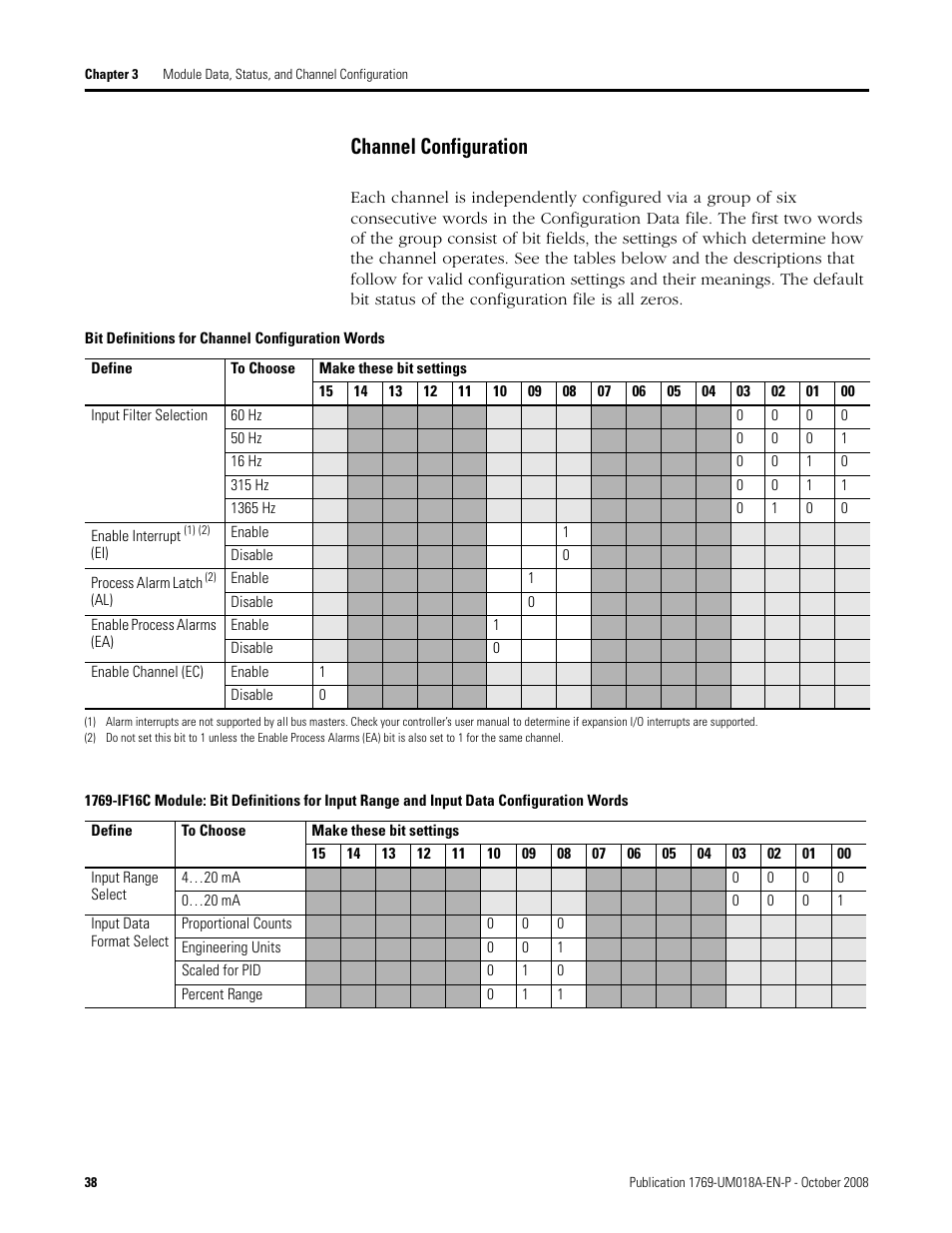

Channel configuration – Rockwell Automation 1769-IF16V Compact High Density Analog Input Modules User Manual
Page 38
