Page 90: Application setup (four channels °c
Publication 1746-UM007C-EN-P - July 2004
8-4 Application Examples
Supplementary Example
Application Setup (Four Channels °C
-
°F)
This example shows how to display the temperature of several
different thermocouples at one annunciator panel. A selector switch
(I:2/0) allows the operator to choose between displaying data in °C
and °F. A second selector switch (I:2/1) allows the operator to switch
one of the displays between the ambient temperature near the bath
and the temperature inside of the control cabinet that houses the SLC
500. Each of the displays is a 4-digit, 7-segment LED display with the
last digit representing tenths of a degree. The displays have
DC-sinking inputs and use a BCD data format.

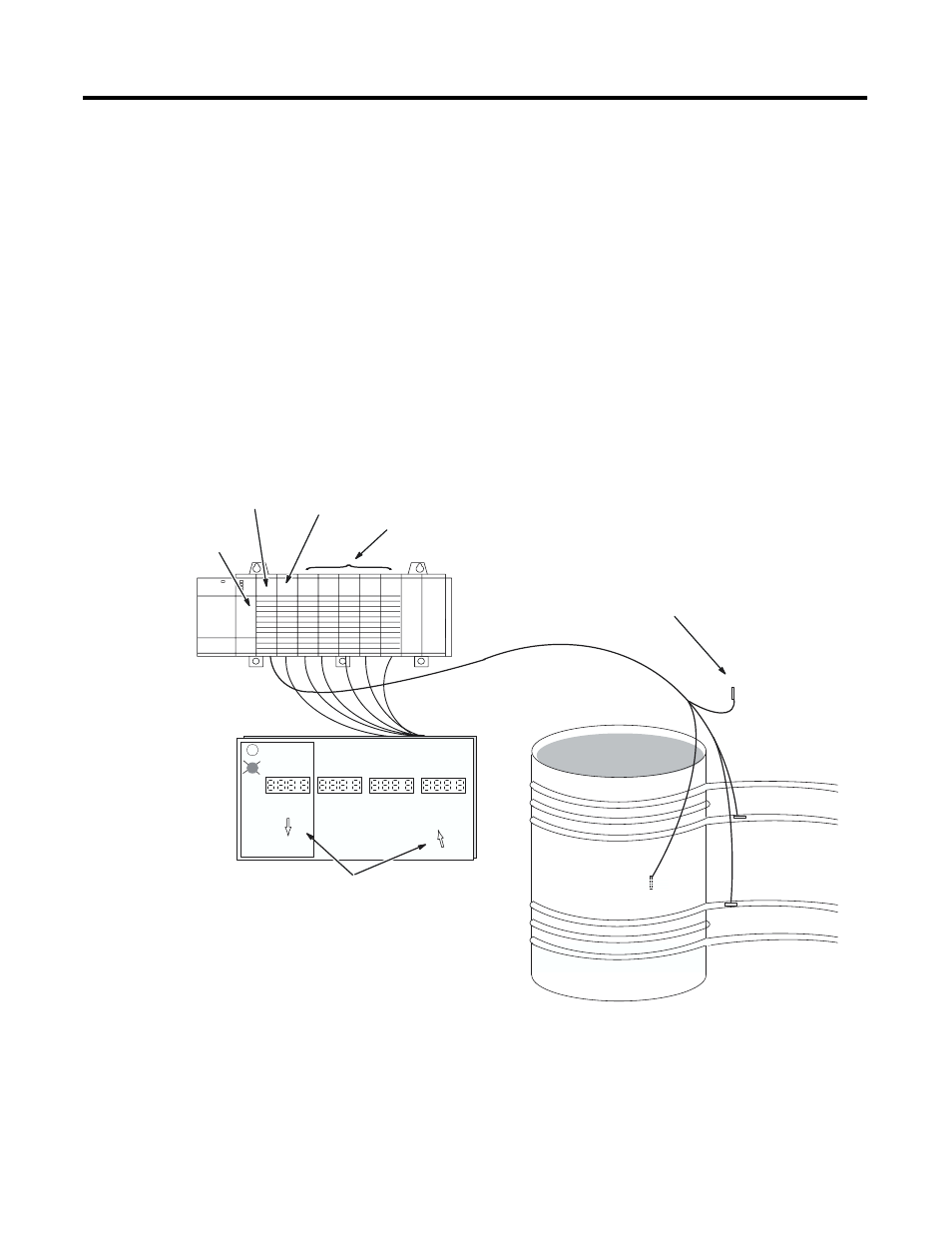

Device Configuration
(5)
.
1746-OB16
1746-IB8
Ambient Temperature
Thermocouple Type T
SLC 5/02
1746-NT4
Chilled H
2
O Pipe
Steam Pipe
Bath
Thermocouple
Type J
Chilled Thermocouple
Type K
Type J
Steam Thermocouple
Bath
Ambient
Display Panel
C
F
.
.
Ambient
Cabinet
Cabinet
Selector Switches
(I:2/1) and (I:2/0)
Chilled H
2
O
Steam
