Rockwell Automation Logix5000 Controllers I/O and Tag Data Programming Manual User Manual
Page 42

Chapter 2
Organize tags
1. In the Properties pane, click the box next to External Access, and
select an attribute.
2. To display the value of the member in a different style (radix), click the
box next to Style, and select the style.
9. Click Apply.
10. Repeat this procedure to add as many members as needed.
Add extended properties to a user-defined data type
You can add Min, Max, Engineering Units, State 0, and State 1 properties to a
data type or its member. When you add these properties, other Rockwell
Automation HMIs can use their values.
You can add and change these extended properties in the Data Type Editor
Properties pane.
1. In the Controller Organizer, expand Data Types, then expand User-
Defined, then right-click the user-defined data type and then click
Properties.
2. In the Data Type Editor, do one of the following:
• Click in the data type Name box to choose the data type.
• Click in the data type member Name box to choose the data type
member.

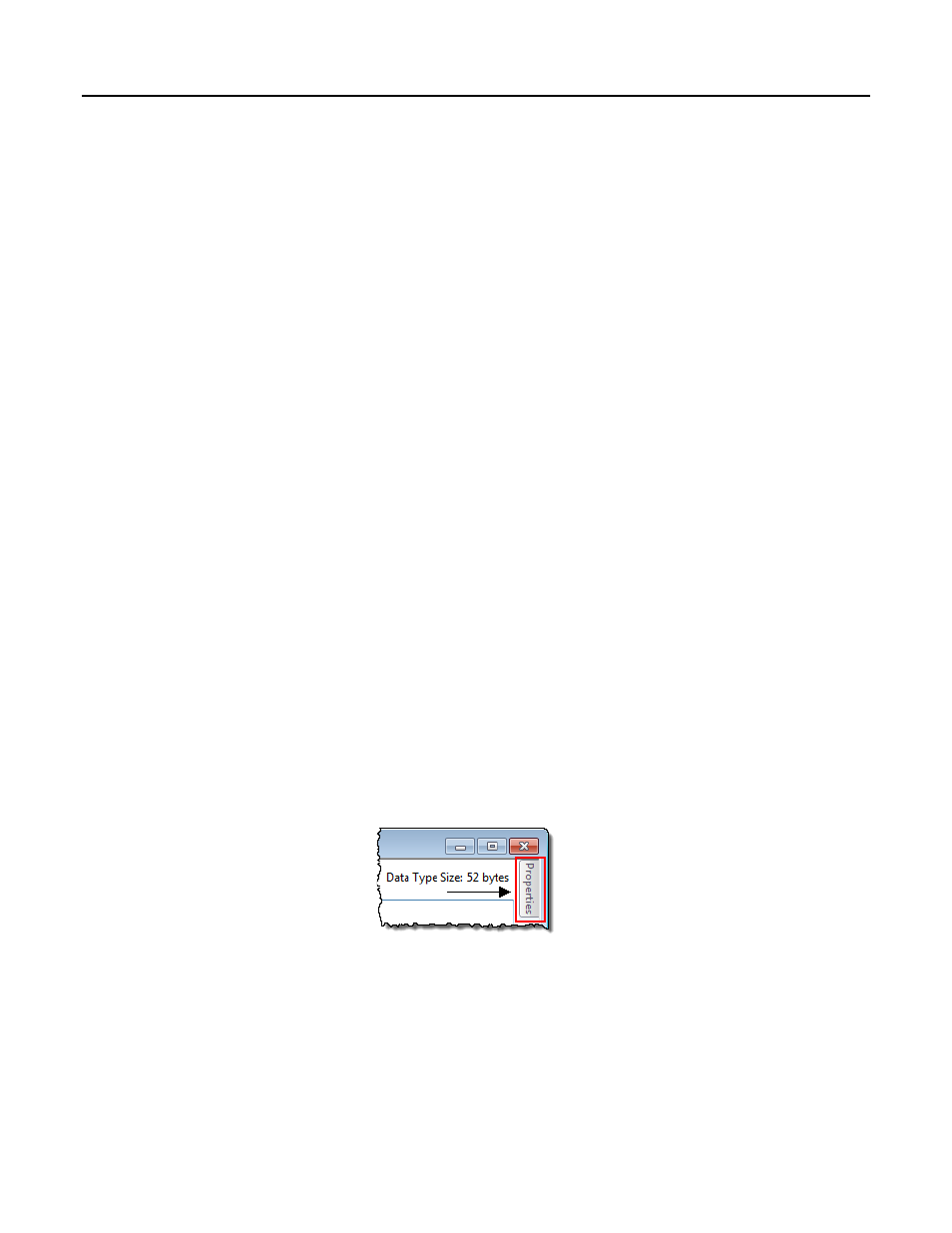

3. If the Properties pane is not visible, click Properties.
4. Click Extended Properties.
42
Rockwell Automation Publication 1756-PM004E-EN-P - October 2014
