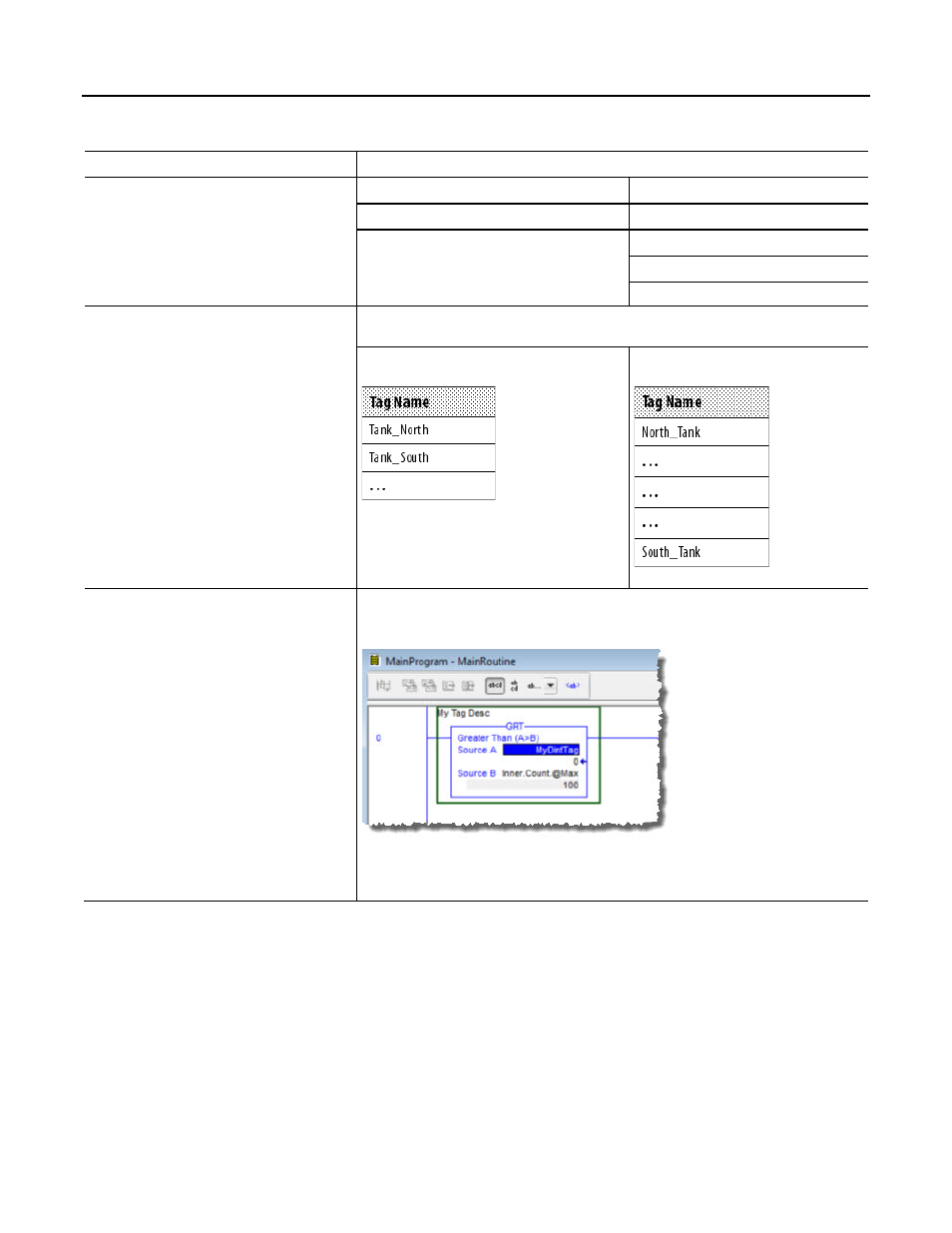

Organize tags
Chapter 2
Guideline
Details
These tags are easier to read
Than these tags
Tank_1
TANK_1
Tank1
TANK1
tank_1
tank1
Consider the alphabetical order of tags
Logix Designer application displays tags of the same scope in alphabetical order. To make it easier to monitor related
tags, use similar starting characters for tags that you want to keep together.
Starting each tag for a tank with ‘Tank’ keeps the tags
together.
Otherwise, the tags may end up separated
from each other.
Using extended properties in logic
You can access limit extended properties defined on tags using the .@Min and .@Max syntax. However, you cannot
write to extended properties values in logic.
For example, in the Ladder Editor, you can use limit extended properties on an instruction’s source operand.
