Configure igmp – Rockwell Automation 1783-EMS08T Stratix 6000 Ethernet Managed Switch User Manual User Manual
Page 83
Rockwell Automation Publication 1783-UM001D-EN-P - January 2013
83
Add the Switch to Software
Appendix E
Configure IGMP

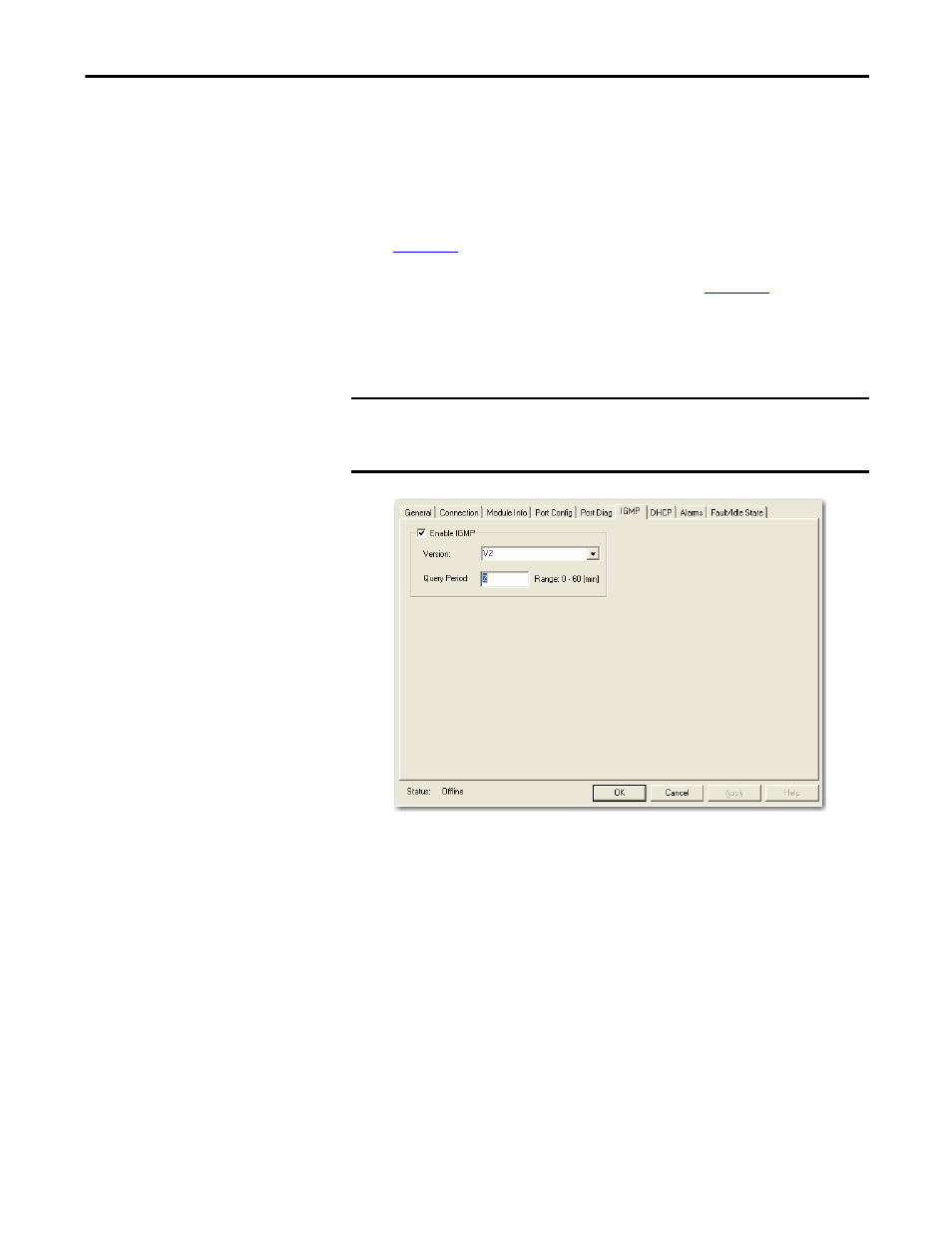

From the Module Properties dialog box, click the IGMP tab to configure
Internet Group Management Protocol (IGMP) using these fields:
• Enable IGMP—Enables the IGMP feature in the 1783-EMS switch. See
of this manual for additional information.
• Version—Select from version 1 or version 2. See
for additional information.
• Query Period—Select the interval rate that the network is queried for
IGMP information.
IMPORTANT
Settings made on the IGMP tab overwrite settings made on the web
interface. If you are scanning the 1783-EMS switch with Logix software, use
the IGMP tab to configure IGMP to avoid confusion.
