20 Rockwell Automation Publication 1783-UM001D-EN-P - January 2013
Chapter 1 Basic Configuration

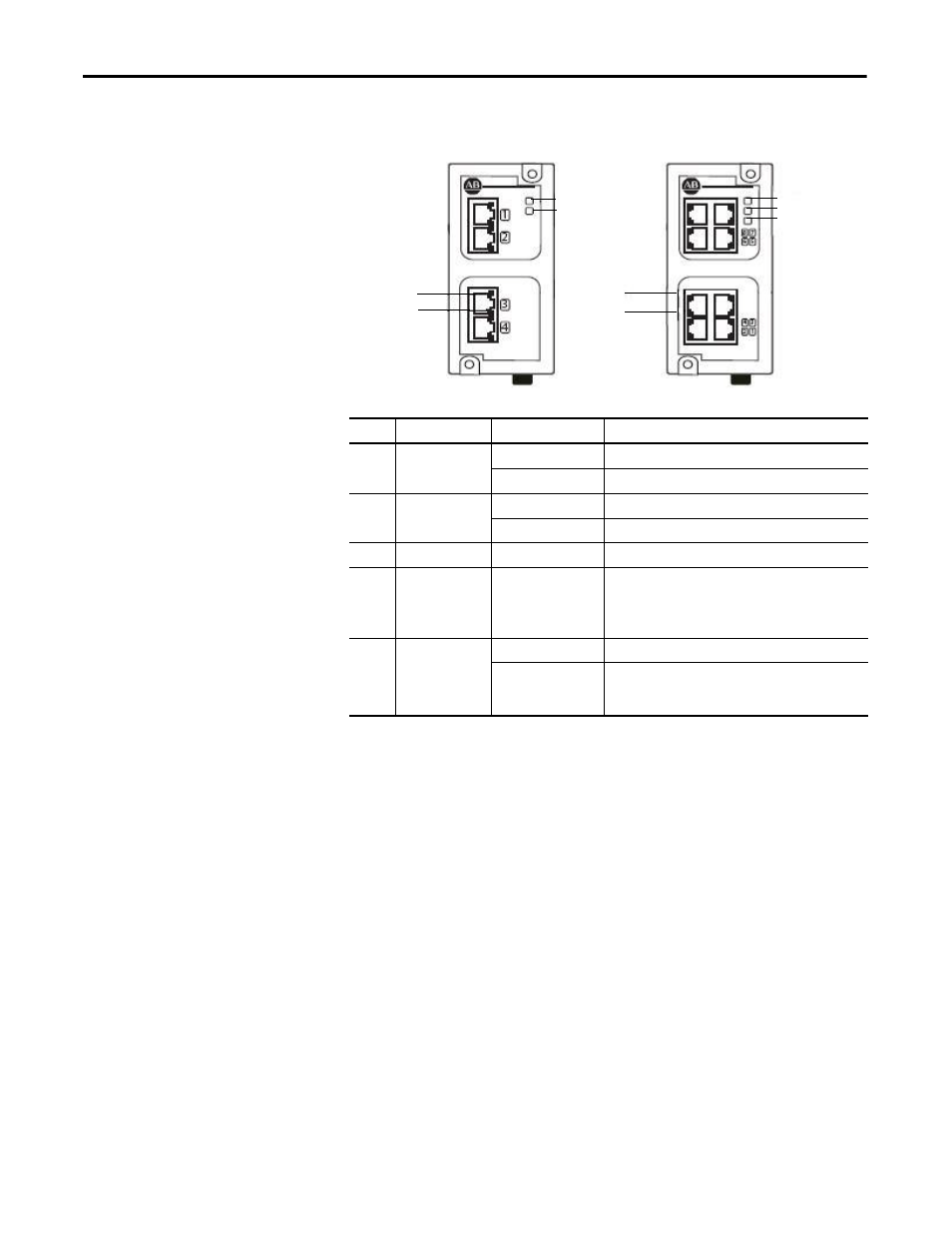

Status Indicators The figures and table show the status indicators.
Item Indicator State Description
1 Link state
(1)
(1) Appears on all copper Ethernet ports.
Solid green Ethernet link exists.
Flashing green Valid link is present and transmitting data.
2 Data rate
(1)
Solid amber 100 Mbit link is present.
Off 10 Mbit link is present.
3 PWR Solid green Power to the switch is present.
4 STA Flashing green This heartbeat indicator normally flashes at a slow rate.
It flashes at a faster rate when the switch is being upgraded
or set back to factory default settings by using the button
on the back of the switch.
5 UPL Solid green Fiber transceiver present.
Flashing green Flashing indicates data is being transmitted over the
gigabit link on the 1783-EMS08T switch that has a gigabit
fiber transceiver on the bottom of the switch.
1783-EMS08T 1783-EMS04T
1
2
3
4
1
2
3
4
5
