Page 71: Factory reset
Rockwell Automation Publication 1783-UM001D-EN-P - January 2013
71
Appendix
C
Factory Reset
This appendix provides information about how to accomplish a factory reset,
setting the 1783-EMS switch to the factory default settings. You have two levels
of reset as described in this appendix. To complete the reset, you need the
following:
• Small screwdriver
• Means to turn off the power to the switch
Access the Reset Button
Complete the reset by using a small button on the back of the switch.
To access the button, carefully remove the plastic DIN-rail clip by gently lifting
the tab in the center with a screwdriver and sliding the clip upward.
The button is inside the left slot, opened by the removal of the plastic DIN-rail
clip.

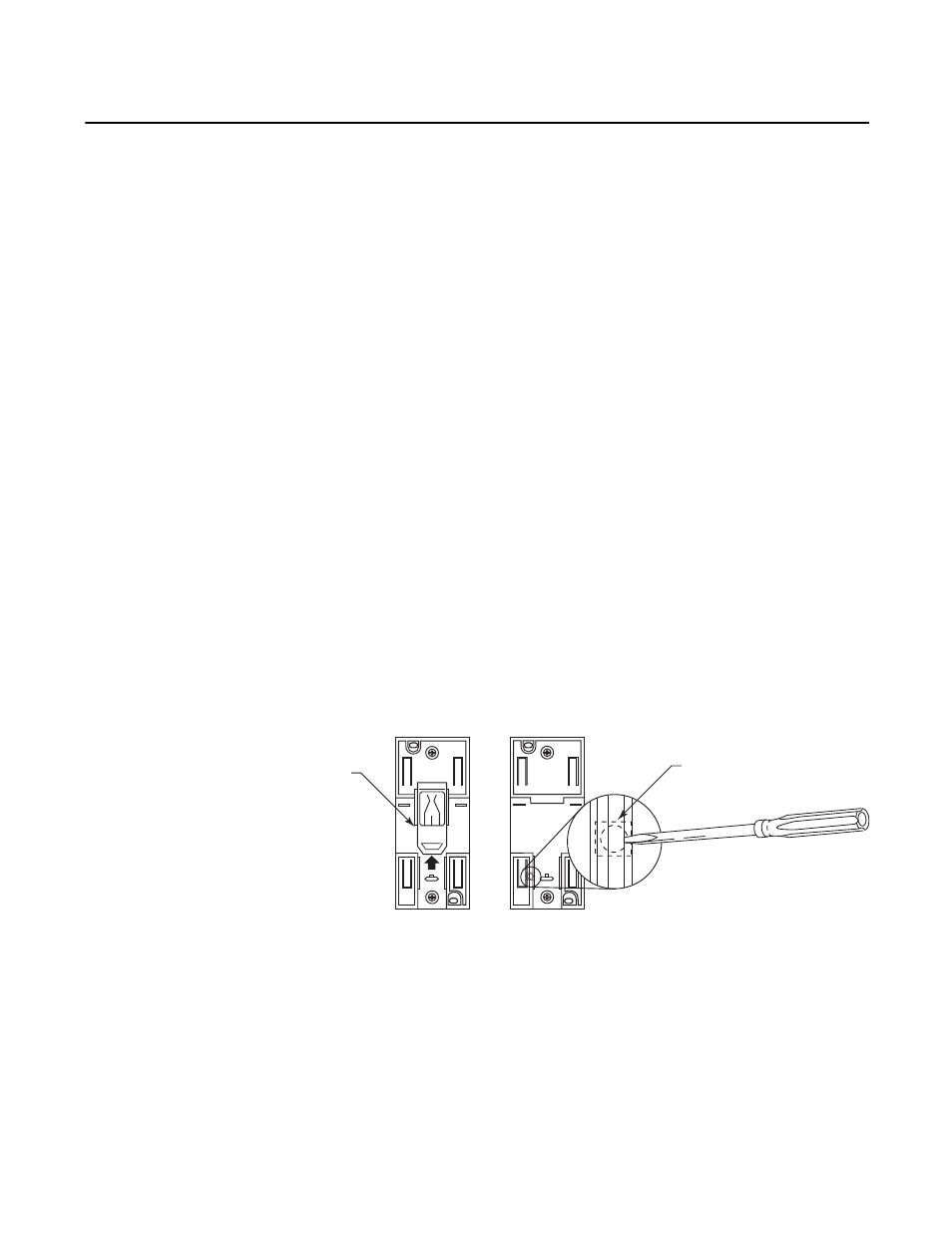

The figure on the left shows the DIN-rail clip that you remove to access the reset
button. The figure on the right shows placement of the screwdriver on the reset
button inside the slot.
Figure 1 - Reset Button
