Overview of FLEX I/O and your Thermocouple/mV Module 1–3
Publication 1794-6.5.7

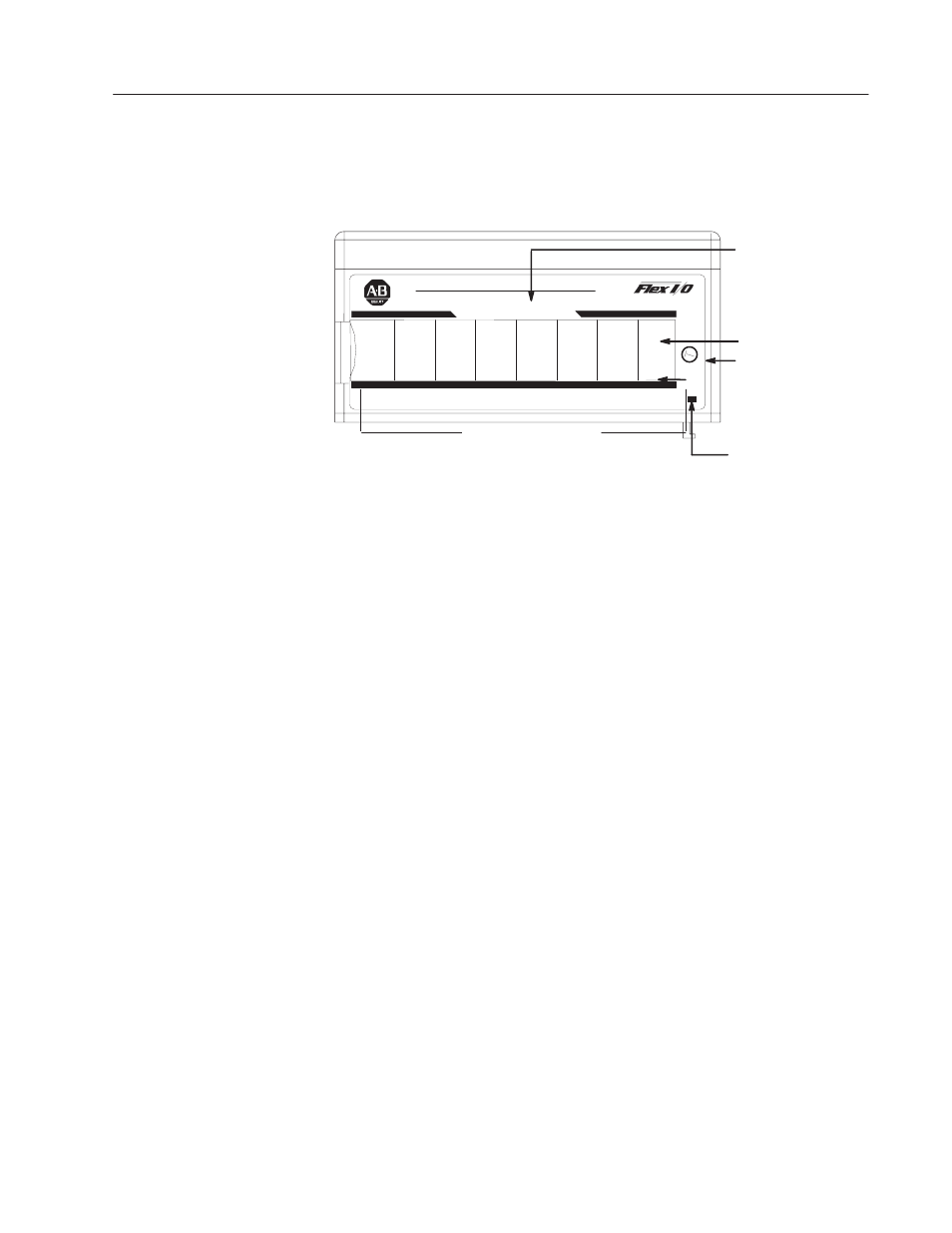

The module label identifies the keyswitch position, wiring and
module type. A removable label provides space for writing
individual designations per your application.
Removable Label
Input Designators
Keyswitch
Position
Indicator (#3)
1794-IT8
Module Type
Power On Indicator
INPUT 0 INPUT 2 INPUT 4 INPUT 6 INPUT 1 INPUT 3 INPUT 5 INPUT 7
THERMOCOUPLE INPUT 8 CHANNEL
3
1794–IT8
Allen-Bradley
+ – + – + – + – + – + – + – + –
OK
The thermocouple/mV module comes with 2 cold junction
compensators. These are designed to mount in designated positions
on the temperature terminal base unit (cat. no. 1794-TB3T). Refer to
chapter 2 for installation instructions for the cold junction
compensator assemblies.
In this chapter, you learned about the FLEX I/O system and the
thermocouple module, and how they communicate with
programmable controllers.
