4-2 General Operation
1403-IN001A-US-P
Note: For additional information on measured
parameters listed in Chapter 4, refer to
Publication 1403-1.0.2, Bulleting 1403
Powermonitor II Tutorial.

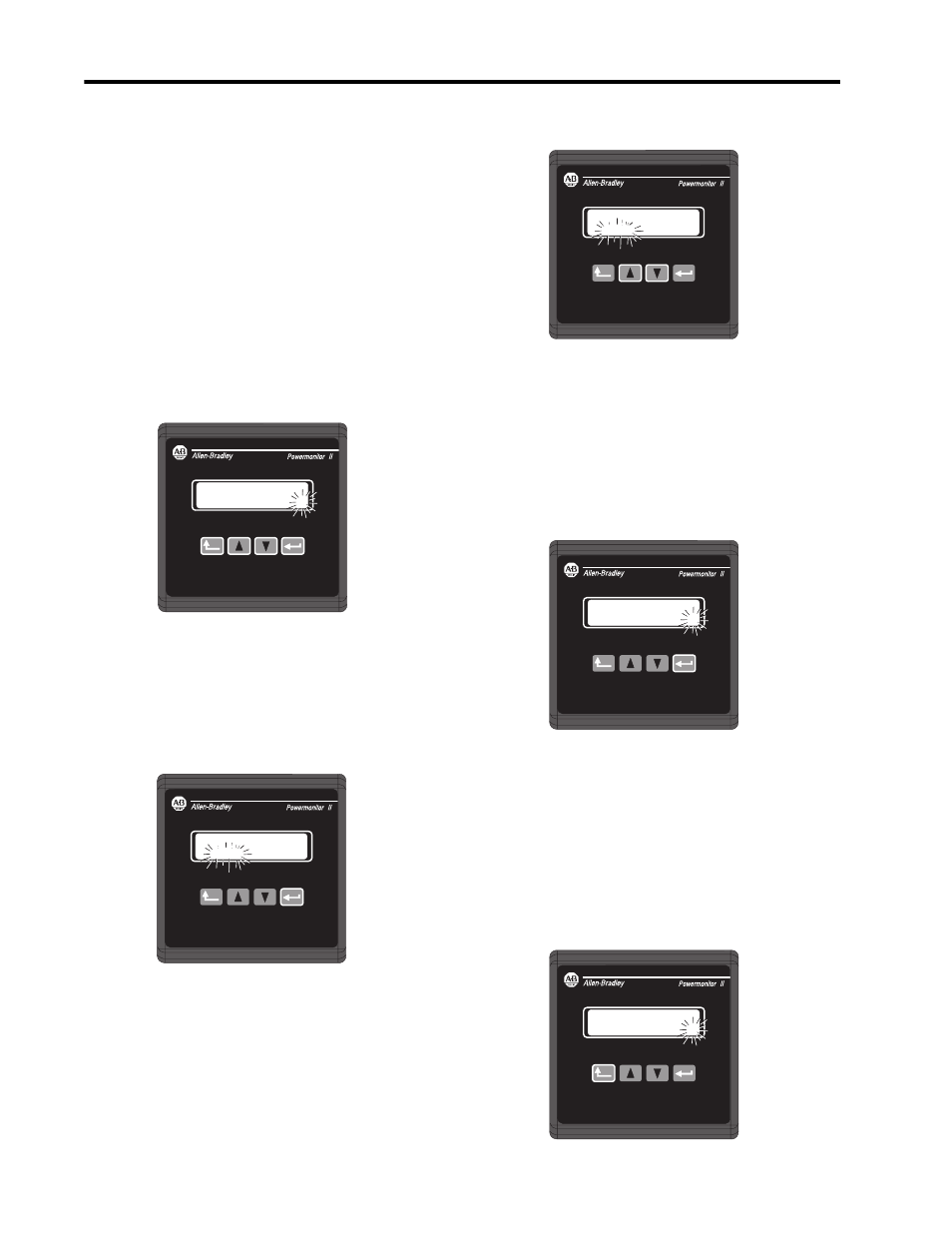

Editing a Digital Parameter
1. Using the Display Module keys, move into
Program mode and display the parameter to be
modified. Notice the flashing “P” in the lower
right-hand corner.
2. Set the Display Module into Edit mode by
pressing the Enter key. The “P” in the lower right-
hand corner remains solid, and the parameter
being modified is flashing.
3. Change the value of the parameter by pressing the
Up Arrow and Down Arrow keys until the desired
parameter value is displayed. Notice the “P” in the
lower right-hand corner remains solid, and the
parameter being modified is still flashing.
4. After the desired parameter value is displayed,
press the Enter key to write the new value to the
Master Module and set the Display Module back
to Program mode. Notice the “P” in the lower
right-hand corner is flashing, and the parameter
being modified is solid.
5. In the event that an incorrect parameter is being
modified, pressing the Escape key returns the
original parameter value, does not modify the
Master Module, and returns the Display Module
to Program mode. Notice the “P” in the lower
right-hand corner is flashing, and the parameter
being modified is solid.
New Password?
0000 P
New Password?
0000 P
New Password?
1234 P
New Password?
1234 P
New Password?
0000 P
