Figure 2 Blank Plate Removal
3. If you plan to remove the communications card at a later date, retain the
blank plate. Otherwise, dispose of properly.
4. Remove the communications card from the static protection shipping
bag.
5. Grasp the card with the components side up and the four LEDs on the
bottom. Place the right index finger in the top notch and the thumb in
the bottom notch.
6. With the Master Module labels right side up, place the card into
opening on the left side, as shown in Figure 3. The card to Master
Module connector should align properly when the top right and bottom
left guide pins of the Master Module mate with holes in the card. With
your left thumb, press just above the card to Master Module connector
to attach the connector. Tighten the four corner screws on the
communication card.

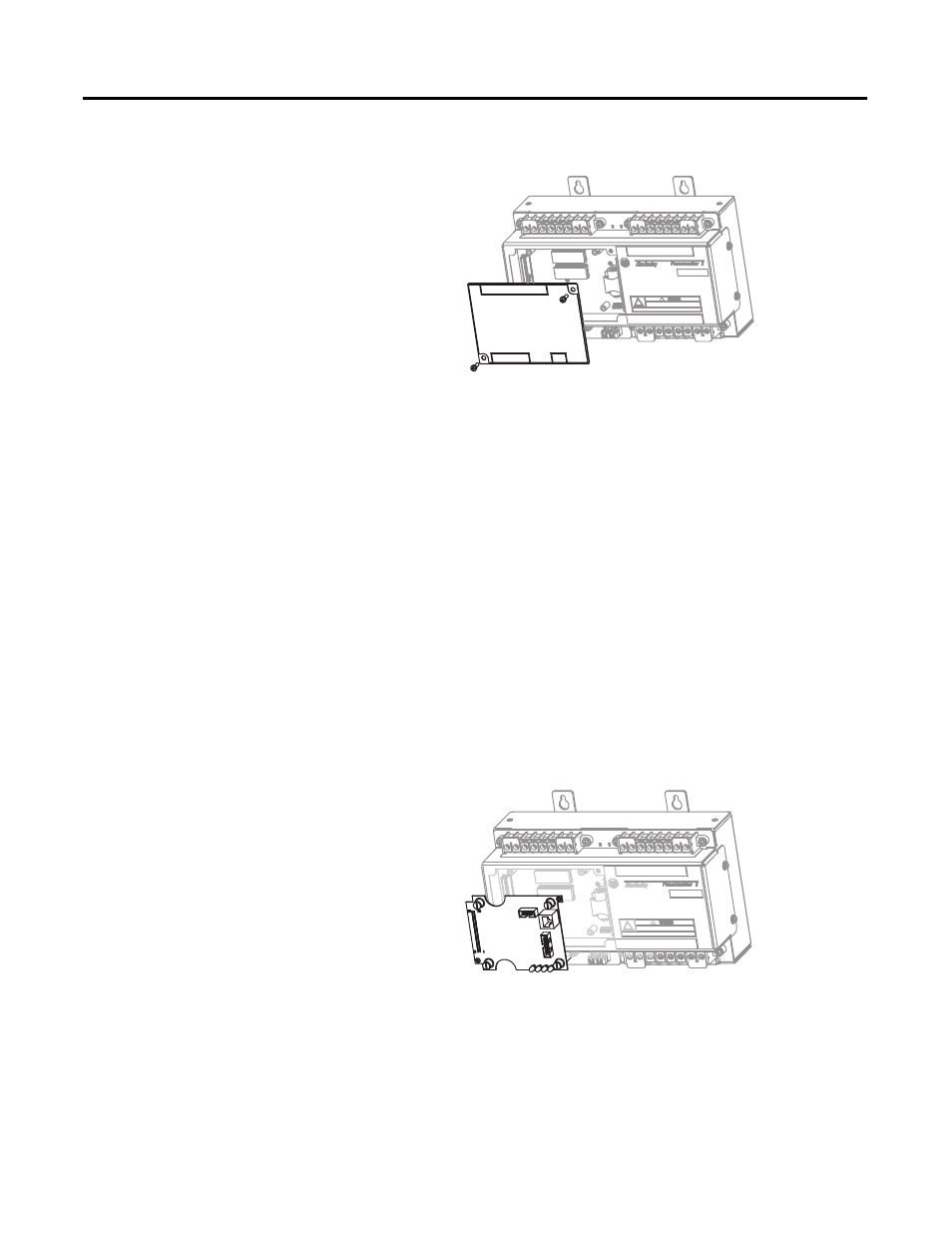

Figure 3 Installing Communication Card
7. Place the closure plate over the opening. Connect the closure plate
ribbon connectors to the communication card connectors. Secure it with
the two screws from the original blank plate as shown in Figure 4.
