DeviceNet™ Scanner Menu
DeviceNet™ Scanner Menu
The DeviceNet™ Scanner Menu is available for Allen-Bradley DeviceNet™
scanners. The scanner menus give the operator some basic information about the
scanner’s configuration and the ability to adjust a few of the scanner attributes.
The scanner menus do not allow the operator to perform complete configuration
of a scanner. RSNetWorx for DeviceNet™ must be used for initial scanner
configuration for a system. The DeviceNet™ Scanner Menu is invoked from the
Device Choices Menu and is shown below:

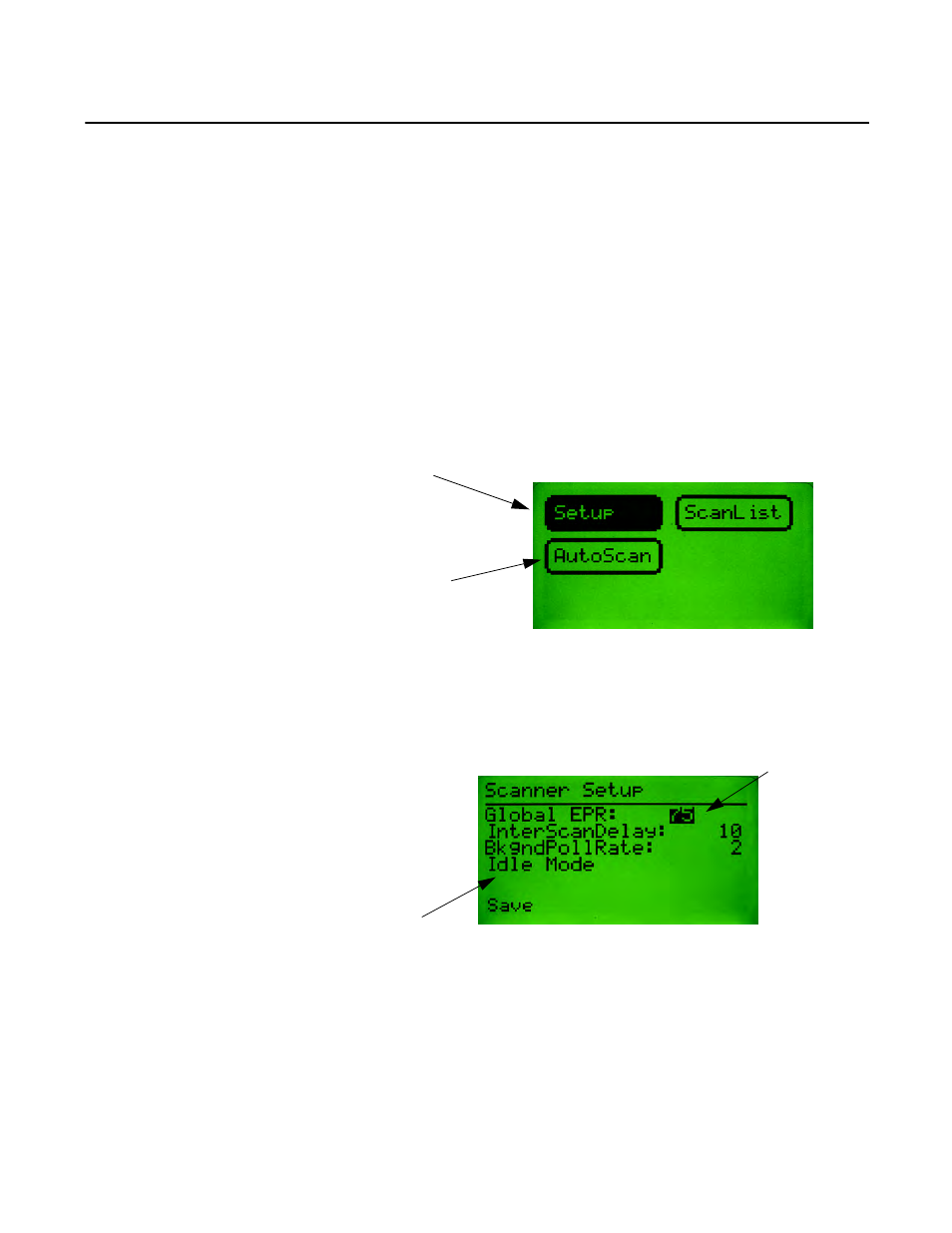

Scanner Setup
This function allows the operator to view and set some of the global settings of
the scanner.
Currently selected function
This will appear only if the
scanner supports it
This line reflects the
status of the Processor,
IDLE or RUN Mode.
Press the Sel key
to move to the
next selection
Select Save and
press Enter to
save the changes
to the scanner.
