DeviceNet™ Configuration
Terminal Setup Menus

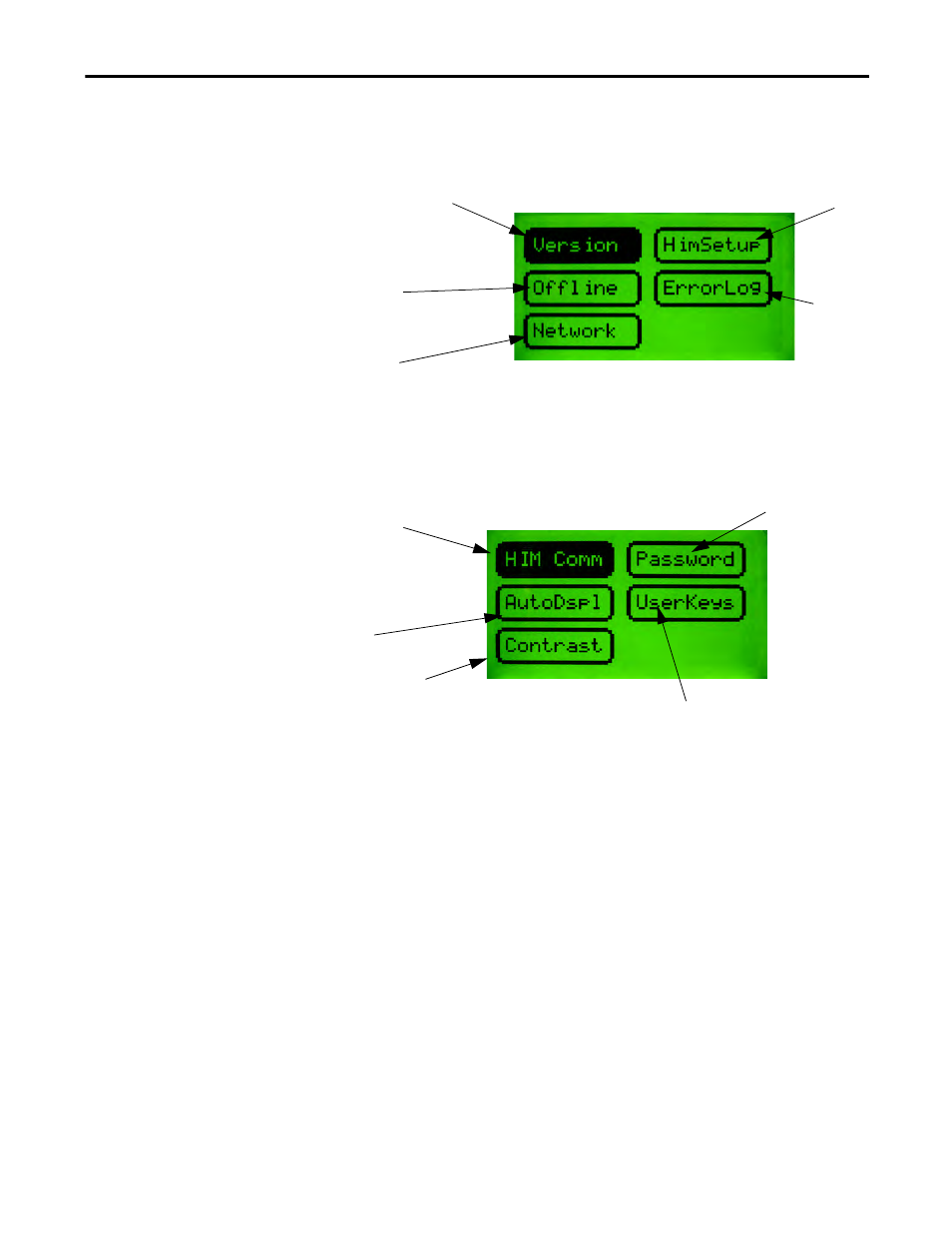

The 193 DeviceNet™ Configuration Terminal often refers to itself as a HIM
(Human Interface Module). When This DNet HIM is chosen from the Network
Who screen, the following HIM Choices Menu appears:
The HIM Setup menu allows the user to configure many of the programming
terminal features.
Port Object And Routing Sub
Nets
The 193-DNCT has the capability to route down one DeviceNet™ sub net for
devices that support the Port Object. This allows the user to easily view devices
on the network display menu.
Displays version information
Allows the user to perform Faulted
Node Recovery for nodes that fail
the Dup Mac ID test
Displays and latches Network Diagnostic information such as Baud Rate,
Bus Voltages, Bus Loading characteristics and CAN errors
Displays the HIM Setup Menu
(shown below)
Displays a
DeviceNet™
communicatio
n error log
Invokes the Terminal Setup screen described
above
Sets up the 5 security
passwords:
1 primary and 4
secondary passwords.
Primary passwords
enable/disable all
editing functions
Secondary passwords
enable/disable editing
of the features
presented by the
terminal
Auto Display setup
enables the display of up
to 4 parameter values
from one or more devices
at powerup
Configures the
operation of the User
Adjust the
screen contrast
