Page 31

Rockwell Automation Publication 193-UM009B-EN-P - February 2013
27
Parameter Choices Menu Chapter 6

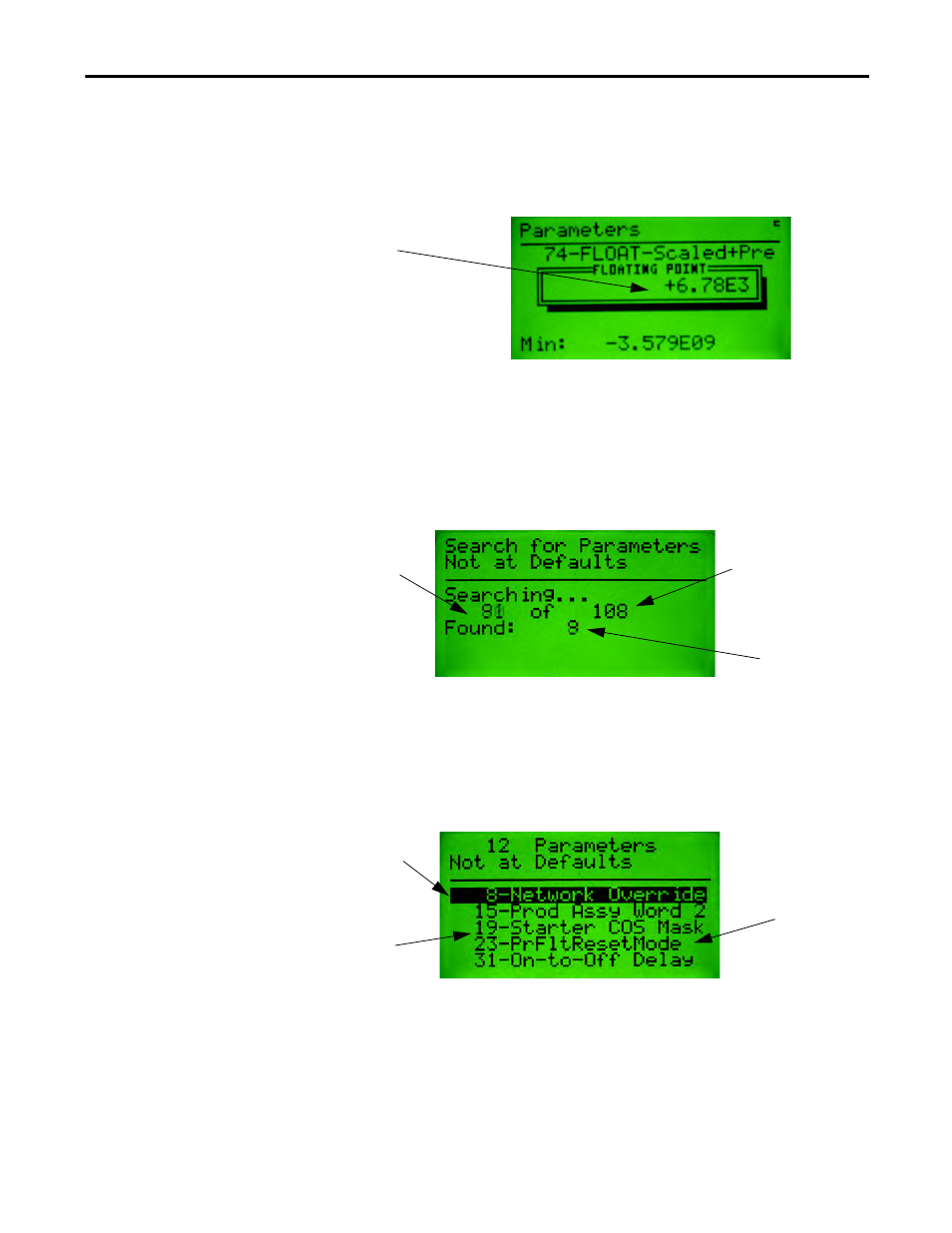

Entering floating point numbers is performed much the same as regular numeric
parameters described earlier. The exponential (displayed as an “E”) is entered as
follows:
Search for Changed
Parameters
This function is invoked by selecting the Search option from the Parameter
Choices Menu. The function searches through the selected device’s parameters
and finds the parameters that are not at their default setting. The following
screen is displayed when searching the parameter list for the selected device:
When all the parameters have been checked, a list of parameters that are not at
their default value will be displayed. The Inc and Dec keys allow the operator to
move up and down through the non-default parameters. Pressing the Enter key
allows the parameter value to be viewed/edited.
When accessing parameters found by the Search function, the format of the
parameter screen will be similar to a Parameter Edit Screen with a few changes.
The title line will say “Non-Default Parameter”, and when Inc or Dec is pressed,
only the parameter found in the search will be displayed
Use the Shift key then the Exp key to
add the E into the value when editing
a floating point value
Number of
parameters to
search through
Number of
non-default
parameters
found
Current parameter
being checked for
default value
Selected parameter
Parameter
number of non-
default
parameters
Names of non-
default
parameters
