48 Rockwell Automation Publication 750COM-UM001E-EN-P - October 2013
Chapter 4 Configuring the I/O

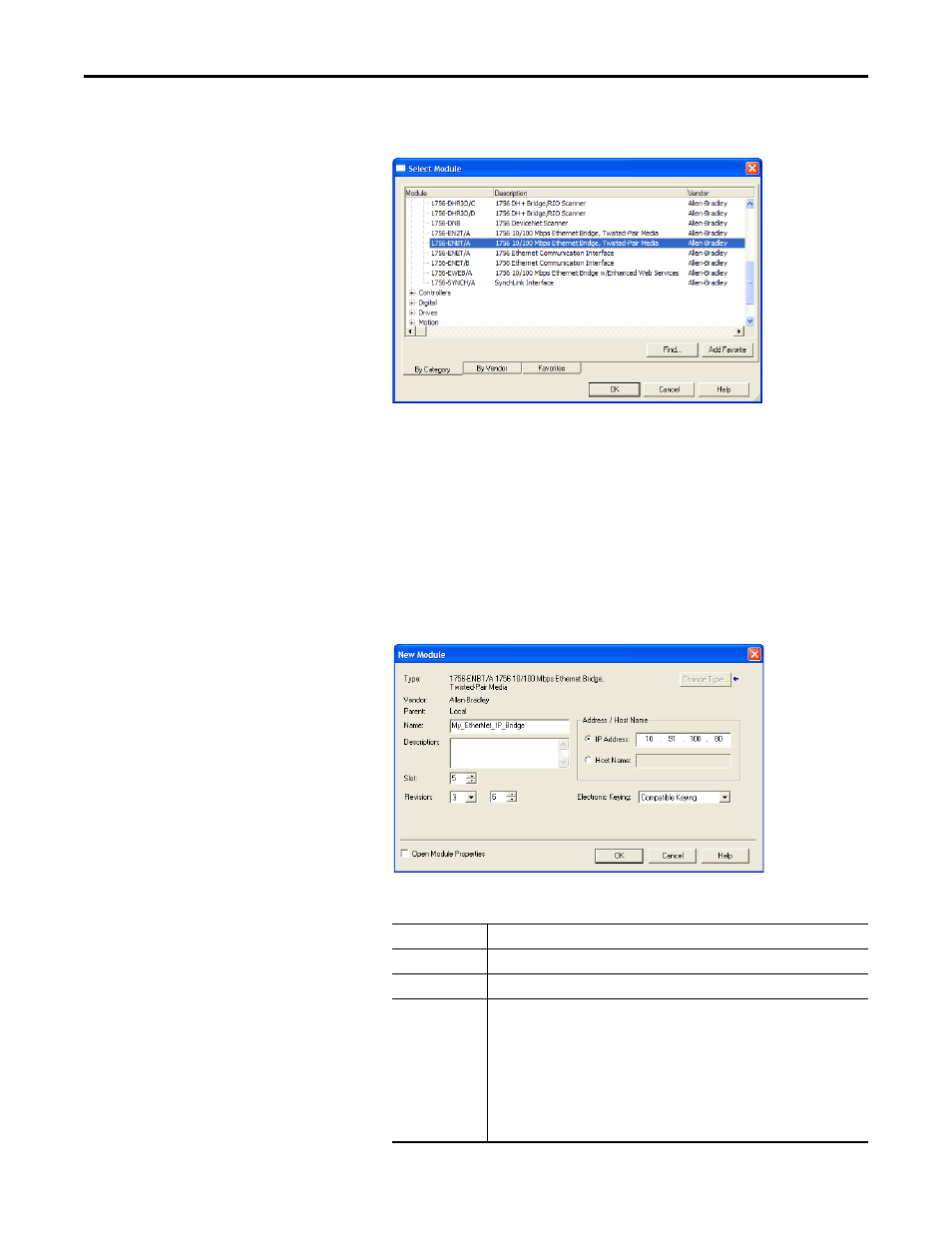

4. Expand the Communications group to display all of the available
communication modules.
5. In the list, select the EtherNet/IP bridge used by your controller.
In this example, we use a 1756-ENBT EtherNet/IP Bridge (Series A), so
the 1756-ENBT/A option is selected.
6. Click OK.
7. In the Select Major Revision pop-up dialog box, select the major revision
of its firmware.
8. Click OK.
The bridge’s New Module dialog box appears.
9. Edit the following:
Box Setting
Name A name to identify the bridge.
Description Optional – description of the bridge.
Revision
Electronic Keying
Click Change to change Revision or Electronic Keying.
The minor revision of the firmware in the bridge. (You already set the major revision by
selecting the bridge series in step 7.)
Compatible Keying. The ‘Compatible Keying’ setting for Electronic Keying verifies
that the physical module is consistent with the software configuration before the
controller and bridge make a connection. Therefore, be sure that you have set the
correct revision in this dialog box. See the online Help for additional information on
this and other Electronic Keying settings. If keying is not required, select ‘Disable
Keying’. Disable keying is recommended.
