Chapter 3 Component Replacement Procedures
Precharge SCR Module
Snubber Board - DC Input

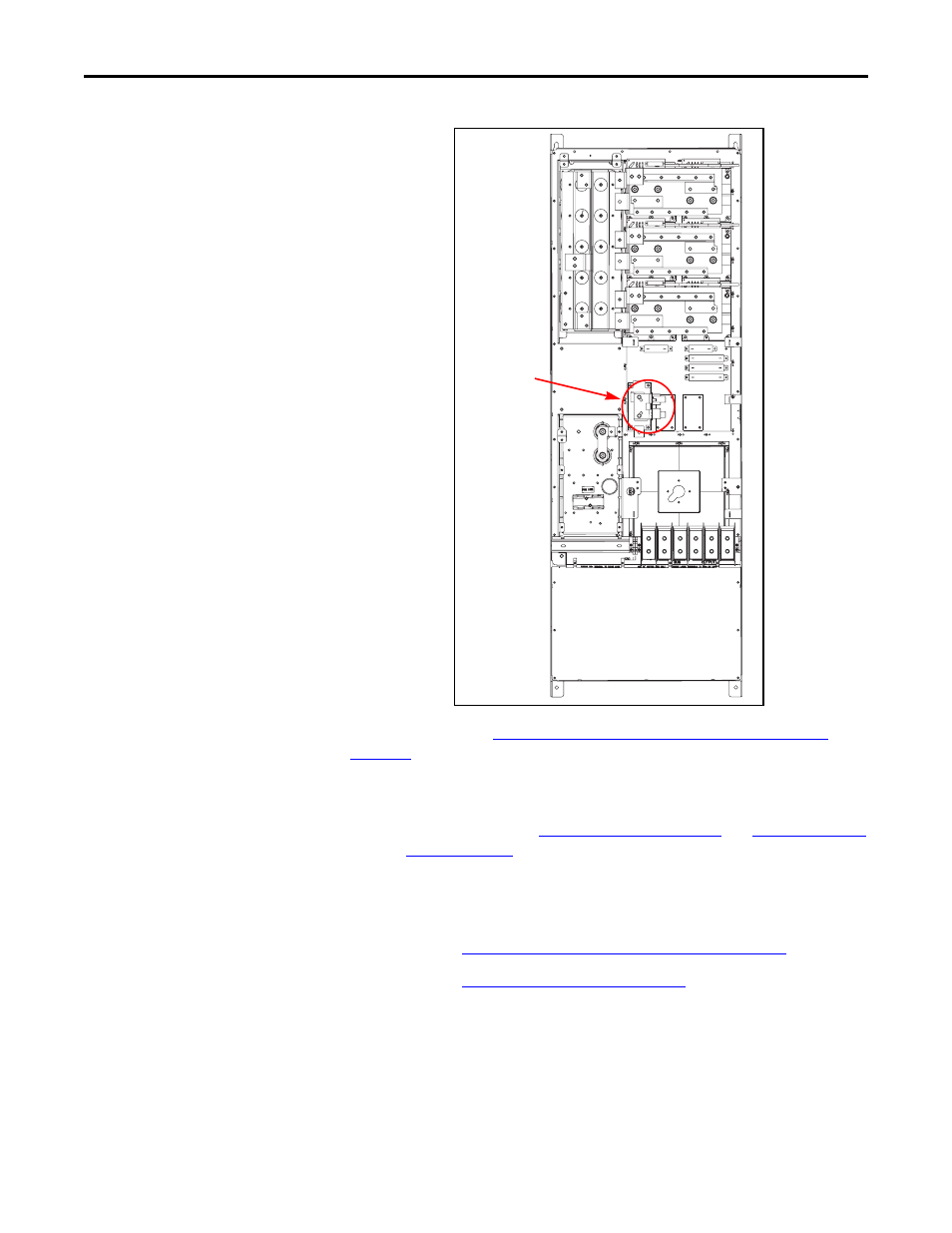

Only Figure 5 - Precharge SCR Module Location
(DC Input Drive Shown)
Refer to the figures in Component Diagrams and Torque Specs on page 13 and
Figure 5 - above for these instructions.
Remove Components
1. Read and follow the Safety Precautions on page 9 and Important Initial
Steps on page 11 .
2. Locate the Precharge SCR module Snubber Board to be replaced.
3. Remove the upper and lower safety shields.
4. Perform Remove Main Control Panel Assembly on page 21 .
5. Perform Remove Stacking Panel on page 22 .
6. Remove the push-on lead from the Snubber Board.
7. Unscrew and remove the Snubber Board from its bus bar. Set aside.
Precharge SCR
Module and
Snubber
