Component Diagrams and Torque Specs Chapter 1

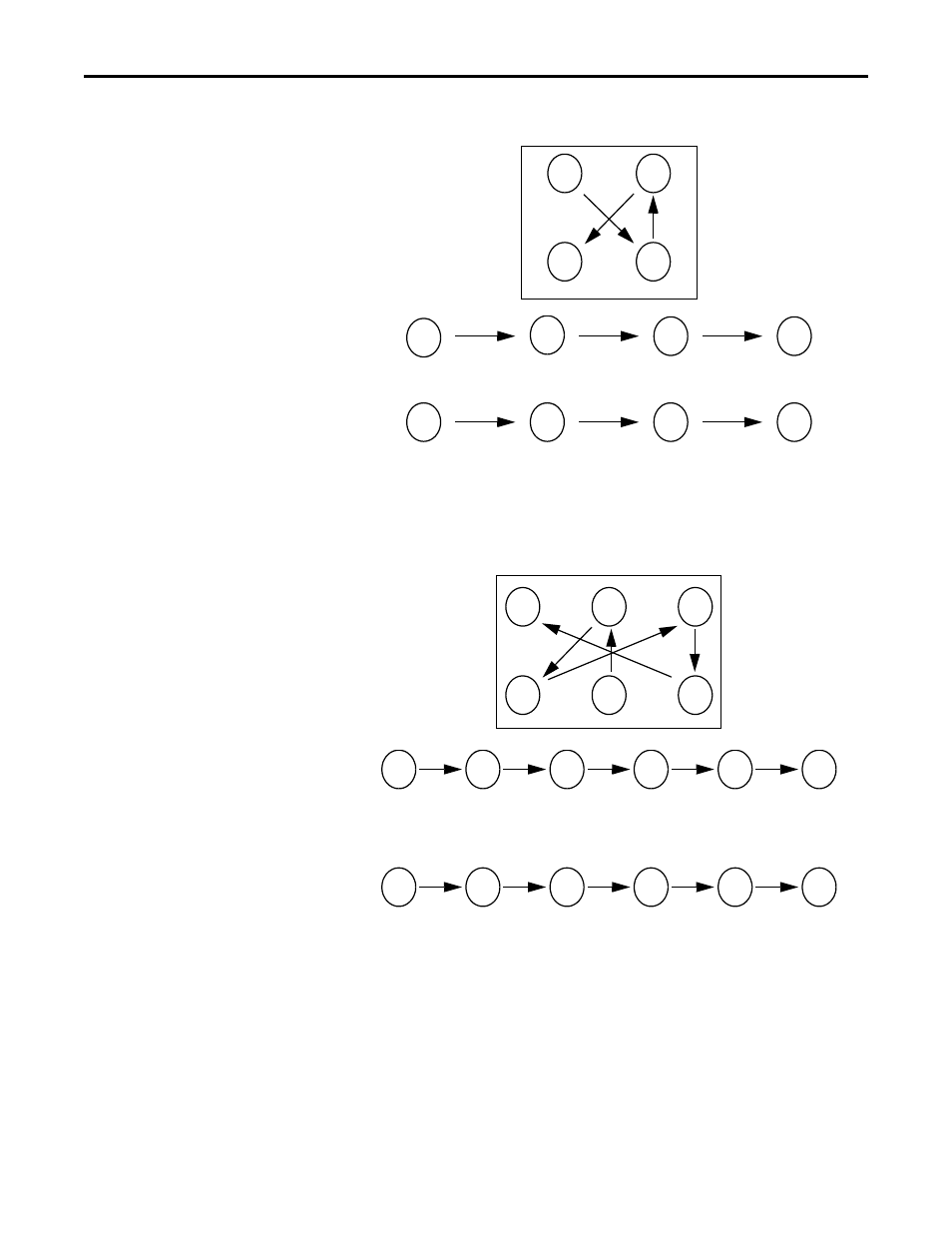

Figure 2 - Four-Point Mounting
Figure 3 - Six-Point Mounting
1
2
3
4
3 4
Initial Sequence
1 2
1 2 3 4
Final Sequence
6 4 2
3 5 1
3 4
Initial Sequence
1 2 6 5
Final Sequence
3 4 1 2 6 5
Do not exceed 0.7 Newton-meters (6 lb•in) on initial torque of all six screws.
