Rockwell Automation Publication 20B-IN017B-EN-P - September 2011

45

Component Replacement Procedures Chapter 3

13. Torque the left screws for each Current Transducer to 5.9 N•m (52

lb•in)

14. Set each Motor Bus Bar in final position and torque the remaining

Current Transducer screw to 5.9 N•m (52 lb•in)

15. Torque each Motor Bus Bar mounting screw (at the bottom) to 9.0 N•m

(80 lb•in)

16. Reassemble remaining components in reverse order.

17. Replace all safety shields and enclosure covers before applying power to

the drive.

Main Control Panel Thermal
Sensor

The Main Control Panel Thermal Sensor is located at the upper left of the Main
Control Panel Assembly and is connected to the Heatsink Thermal Sensor by the
Monitor Wire. Refer to the diagram below and to the figures in

Component

Diagrams and Torque Specs on page 13

for these instructions.

Remove Components

1. Read and follow the

Safety Precautions on page 9

and

Important Initial

Steps on page 11

.

2. Perform

Remove Main Control Panel Assembly on page 21

.

3. Perform

Remove Stacking Panel on page 22

.

4. Unscrew one end of the sensor from the Stacking Panel.

Note: This screw and nut are small. Take care that they do not drop.

5. Disconnect the other end from the Monitor Wire.

Install Components

1. Apply thermal grease to the metal side of the new Main Control Panel

Thermal Sensor and install it with supplied screw with star washer
toward the panel. Torque screw to 1.7 N•m (

15 lb•in)

2. Reconnect the Monitor Wire.

3. Reinstall the Main Control Panel Assembly.

4. Replace all safety shields and enclosure covers before applying power to

the drive.

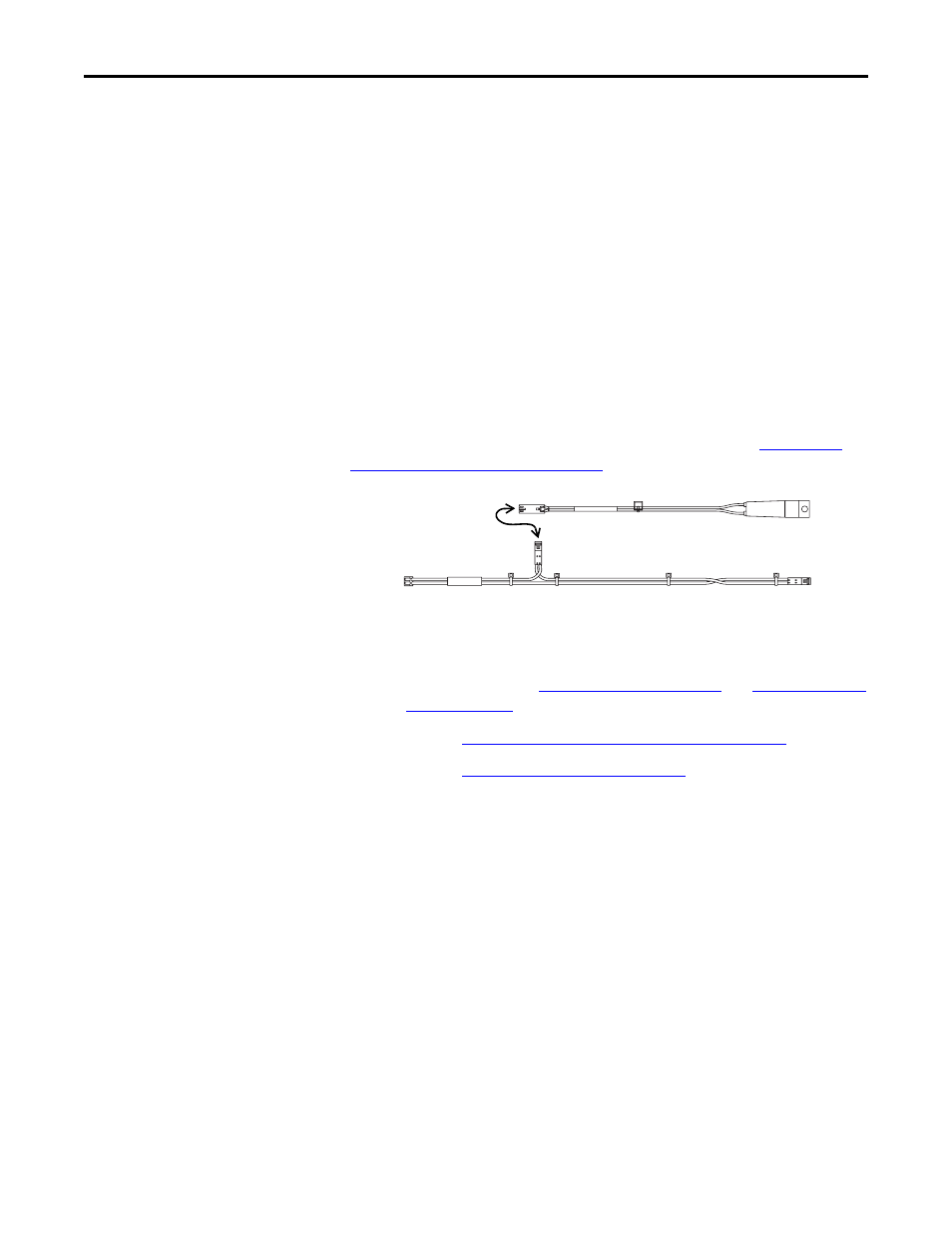

Main Control Panel Thermal Sensor

Monitor Wire

To
Stacking
Panel

To

Heatsink
Thermal
Sensor

To Power
Interface
Board
