30

Rockwell Automation Publication 20B-IN017B-EN-P - September 2011

Chapter 3 Component Replacement Procedures

Switch Mode Power Supply
Board

Refer to the figures in

Component Diagrams and Torque Specs on page 13

for

these instructions.

Remove Components

1. Perform

Remove Main Control Panel Assembly on page 21

.

2. Disconnect all cables ( J2, J4, J3, J1) from the Switch Mode Power

Supply Board.

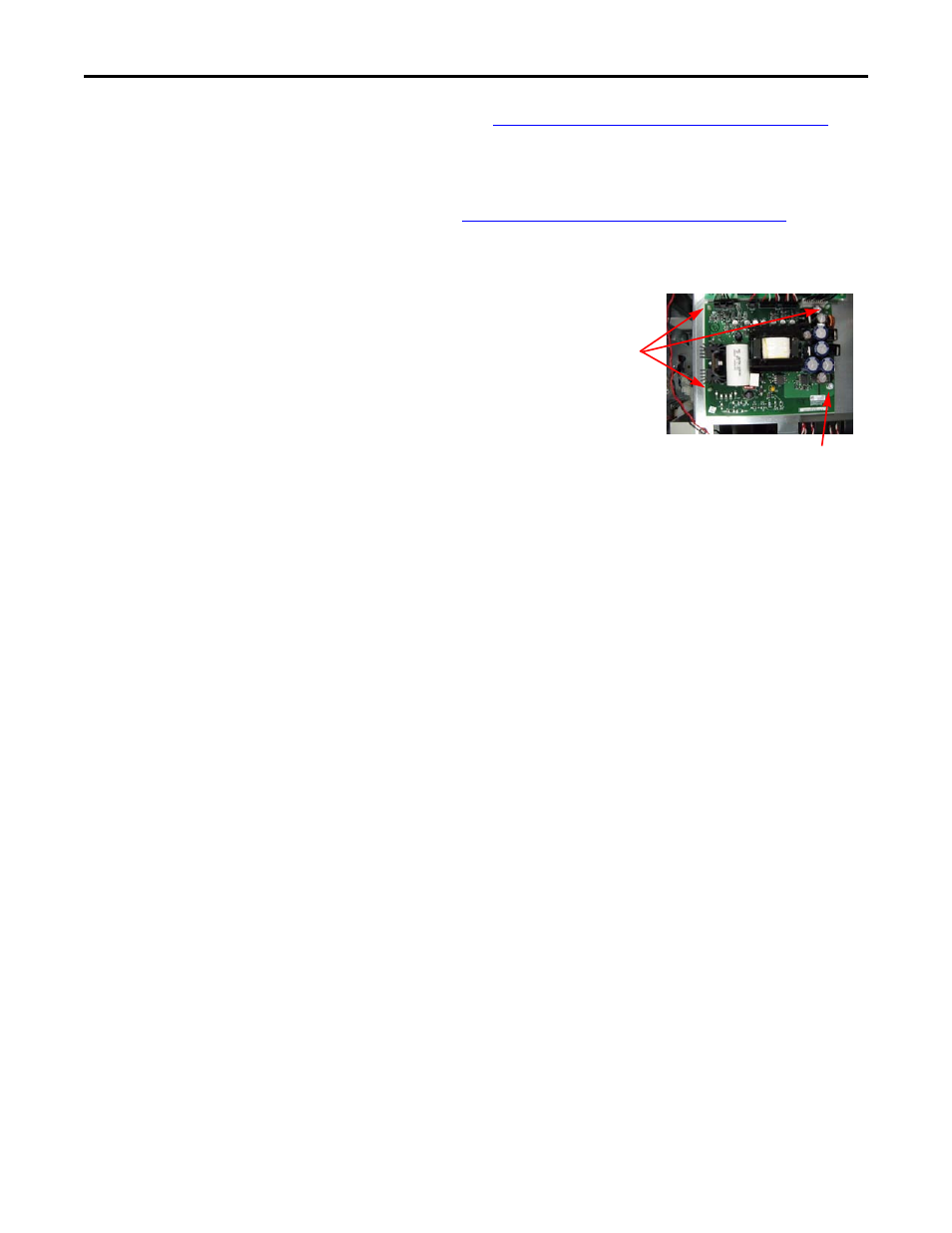

3. Remove the Switch Mode

Power Supply Board
mounting star screw
located at the lower right
corner of the board.

4. Using your fingers or

needle-nose pliers, squeeze
the wings of each of the
three spacers and separate
the Switch Mode Power Supply Board from the mounting plate.

5. Remove the Switch Mode Power Supply Board.

Install Components

1. Install the new Switch Mode Power Supply Board.

Tighten board screws to 1.7 N•m (15 lb•in)

2. Reconnect all cables.

3. Reassemble all components in the reverse order of removal.

Tighten sheet metal screws to 3.2 N•m (28 lb•in)

4. Reconnect the ribbon cable going from the Power Interface Board ( J1)

to the Main Control Board ( J2).

5. Replace all safety shields and enclosure covers before applying power to

the drive.

Screw

Spacers
