Rockwell Automation 20B PowerFlex 700 Installation Instructions - Frames 0…6 User Manual
Page 48

48
Rockwell Automation Publication 20B-IN019E-EN-P - July 2013
PowerFlex 700 Adjustable Frequency AC Drive – Frames 0…6
Fram
e
Vo
lt
ag
e
Code
Current
Ra
ti
ng
Factory Default Jumper Settings
Power Source Type
MOV/Input
Filter Caps
(1) (2)
DC Bus Common
Mode Caps

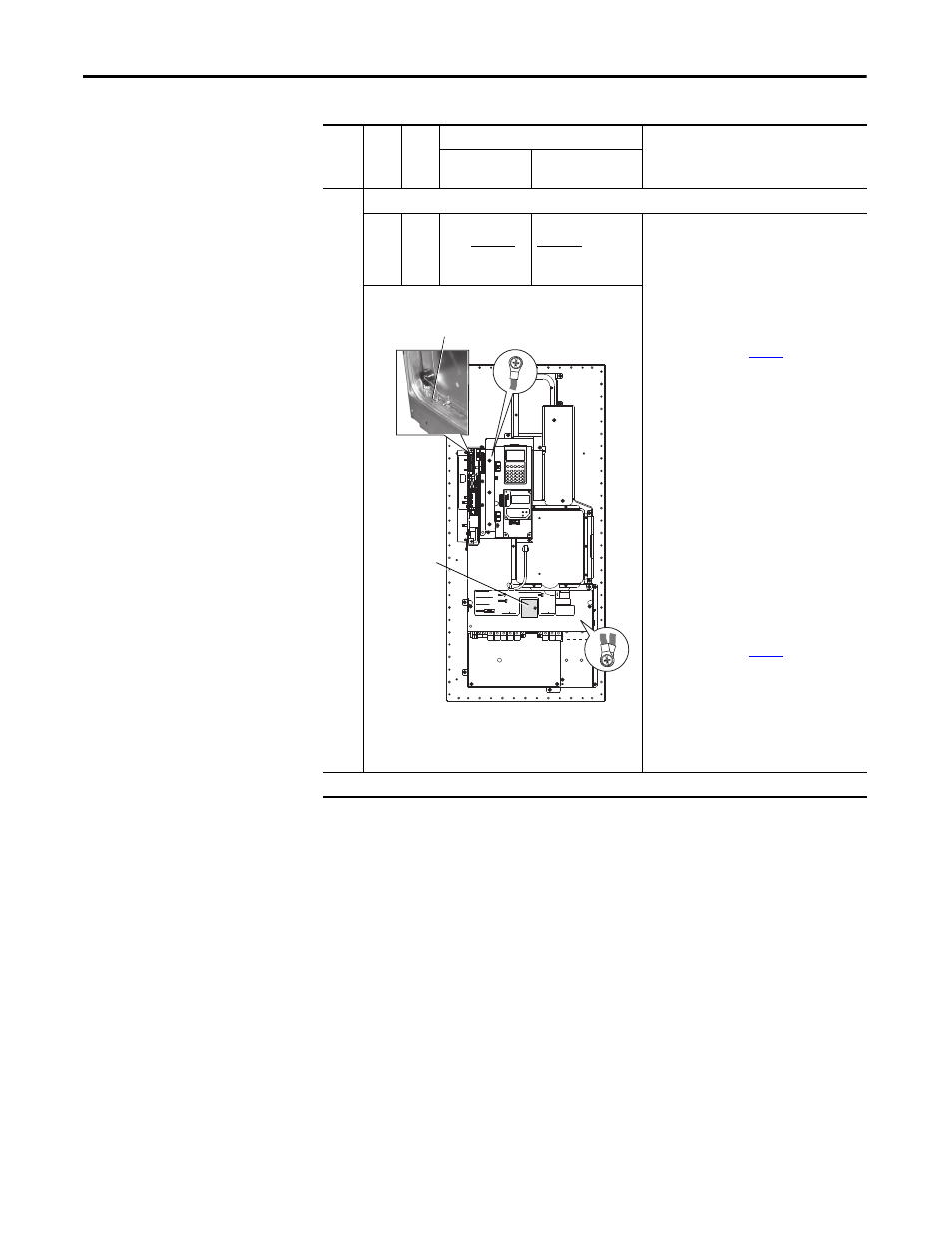

5
IP54, NEMA Type 12 Drives
C
D
P
R
All
Two green/yellow
wires connected
to chassis ground
Green/yellow wire is
connected to ground
Solid Ground
1. CM Cap jumper wire must be connected to
ground with a metal screw. Verify, and if
necessary:
• Newer Drives - Remove the nylon screw/
spacer and insert a metal M5 x 8 screw.
Torque to 3.2 N•m (28 lb•in).
• Older Drives - Remove the
I/O Cassette (see
page 53
). The green/
yellow CM Cap jumper wire is on the back
of chassis and must be connected to
ground with a metal screw. Remove the
insulation from the wire terminal and
connect to chassis with a metal M5 x 10
screw. Torque screw to 3.2 N•m (28 lb•in).
2. MOV/Input Filter Cap jumper wires must be
connected to ground with a metal screw.
Verify, and if necessary, remove the nylon
screw/spacer and insert a metal M5 x 12
screw.
Non-Solid Ground
1. CM Cap jumper wire must be insulated from
ground. Verify, and if necessary:
• Newer Drives - Remove the metal screw
and insert a M5 x 15 nylon screw/spacer.
• Older Drives - Remove the
I/O Cassette (see
page 53
).Insulate/secure
jumper wire to guard against unintentional
contact with chassis or components.
2. MOV/Input Filter Cap jumper wires must be
insulated from ground with a nylon screw/
spacer. Verify, and if necessary, remove the
metal screw and insert a M5 x 20 nylon screw/
spacer.
Frame 5 continued on next page
(1) AC input drives only. MOV’s and input filter caps do not exist on DC input drives.
(2) When removing MOV’s, the input filter capacitor must also be removed.
USE 75 C CU WIRE ONLY
WIRE RANGE: 4-3/0 AWG (18-70 MM2)
TORQUE: 133 IN-LB (15 N-M)
STRIP LENGTH: 1.02 IN (26 MM)
POWER & DC TERMINAL RATINGS
WIRE RANGE: 14-1/0 AWG (2.5-50 MM2)
TORQUE: 32 IN-LB (3.6 N-M)
STRIP LENGTH: 0.67 IN (17 MM)
BRAKE TERMINAL RATINGS
WIRE RANGE: 6-1/0 AWG (18-35 MM2)
TORQUE: 44 IN-LB (5 N-M)
STRIP LENGTH: 0.83 IN (21 MM)
GROUND TERMINAL RATINGS (PE)
OUTPUT
INPUT AC
300 VDC EXT PWR SPLY TERM (PS+, PS-)
WIRE RANGE: 22-10 AWG (0.5-4 MM2)
TORQUE: 5.3 IN-LB (0.6 N-M)
STRIP LENGTH: 0.35 IN (9 MM)
DANGER
DANGER
RISK OF ELECTRIC
SHOCK AND DEATH
FIELD INSTALLED OPTIONS
6 MM HEX KEY
6 MM HEX KEY
SHLD
SHLD
MOV
MOV / Input Filter Cap
CM Cap -
Older Drives
CM Cap - Newer Drives
