Reference control, Auto speed sources, Manual speed sources – Rockwell Automation 20B PowerFlex 700 Installation Instructions - Frames 0…6 User Manual

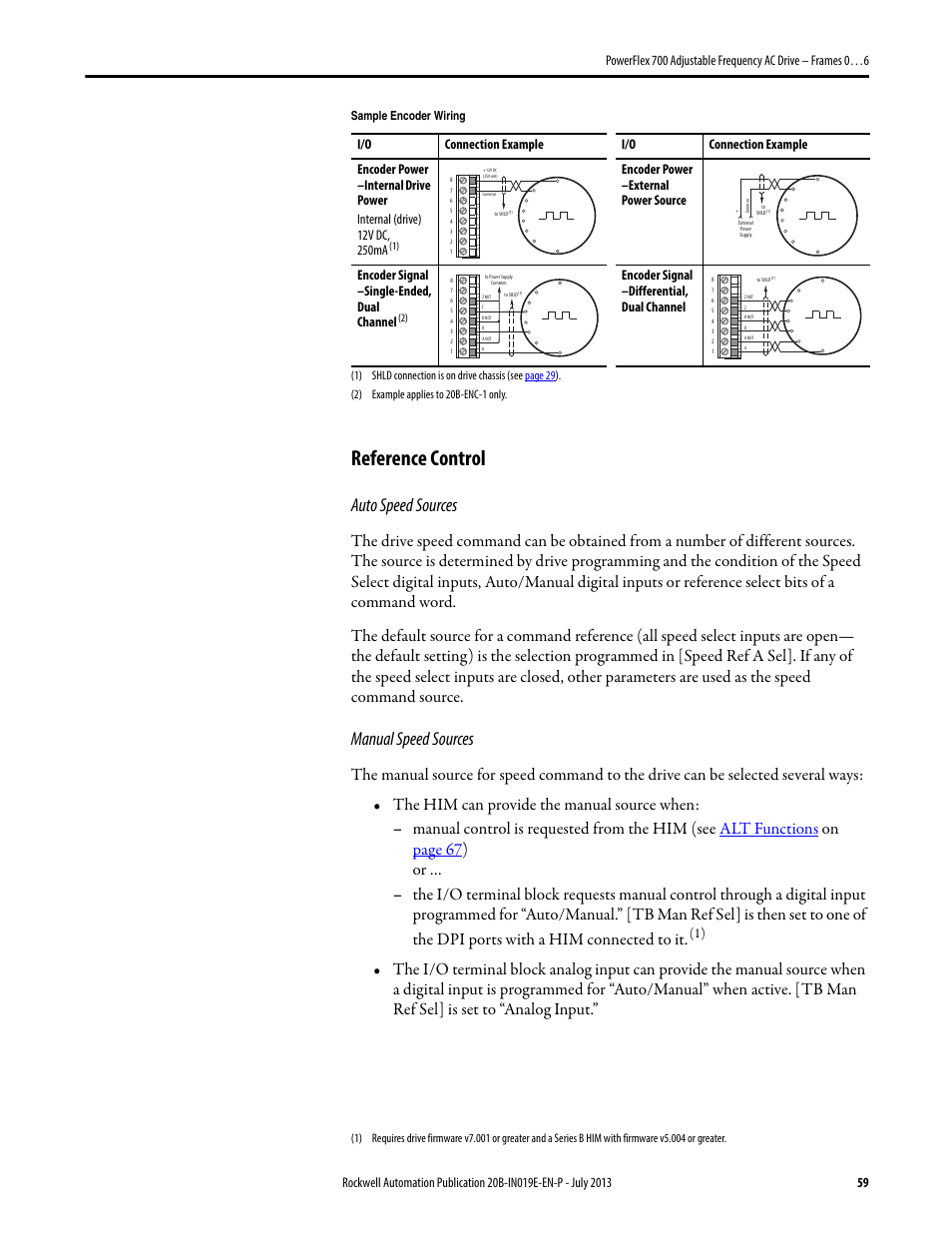

Page 59: Encoder signal –differential, dual channel
