36

Operation Method

Program Creation Method

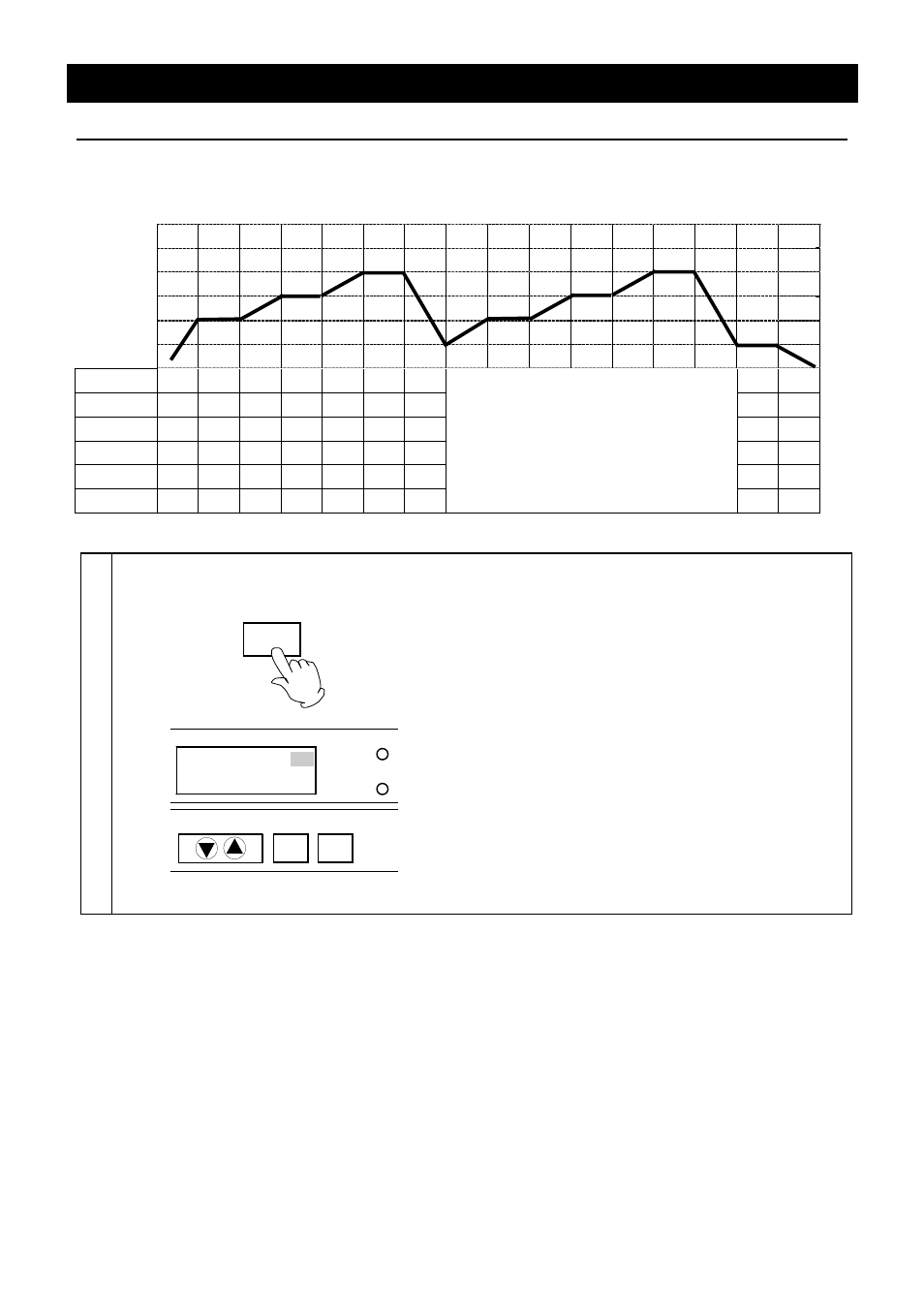

The program pattern below is explained as an example.

- Program pattern example -

Temp

200℃

100℃

0℃

Step S01 S02 S03

S04 S05 S06

S07

S08

S09

Temp.(℃)

100 100 150

150 200 200

50

50

-

Time(min.)

25 30 15 30 0 30

2:30

30

End

Fan speed

10 5 8 8 10 8 10

5

OFF

Rep. start

No No No No No No

S01

No

-

Rep. count

- - - - - - 1

Repeat function →

Repeat the steps S01 to S07 once

- -

1

Select operation mode
• Check that the power in turned on.

PROGRAM

TROUBLE

ENTER

CANCEL

DOOR

Select step

S01

Program OPR

Press the PROGRAM key. The program menu

starts and step number selection screen is
displayed.
Press the "▼▲". The registered step numbers
and the smallest number of un-used step are
displayed in sequence. Select the step number
among them.

™

The "S01" is displayed if no program is registered.

In this case, the "▼▲" are invalid.

Press the ENTER key. The selected step

number is decided and the select the setting item
selection screen is displayed. The "Set TEMP"
is displayed at the beginning.

Press the CANCEL key to cancel the program

menu.
