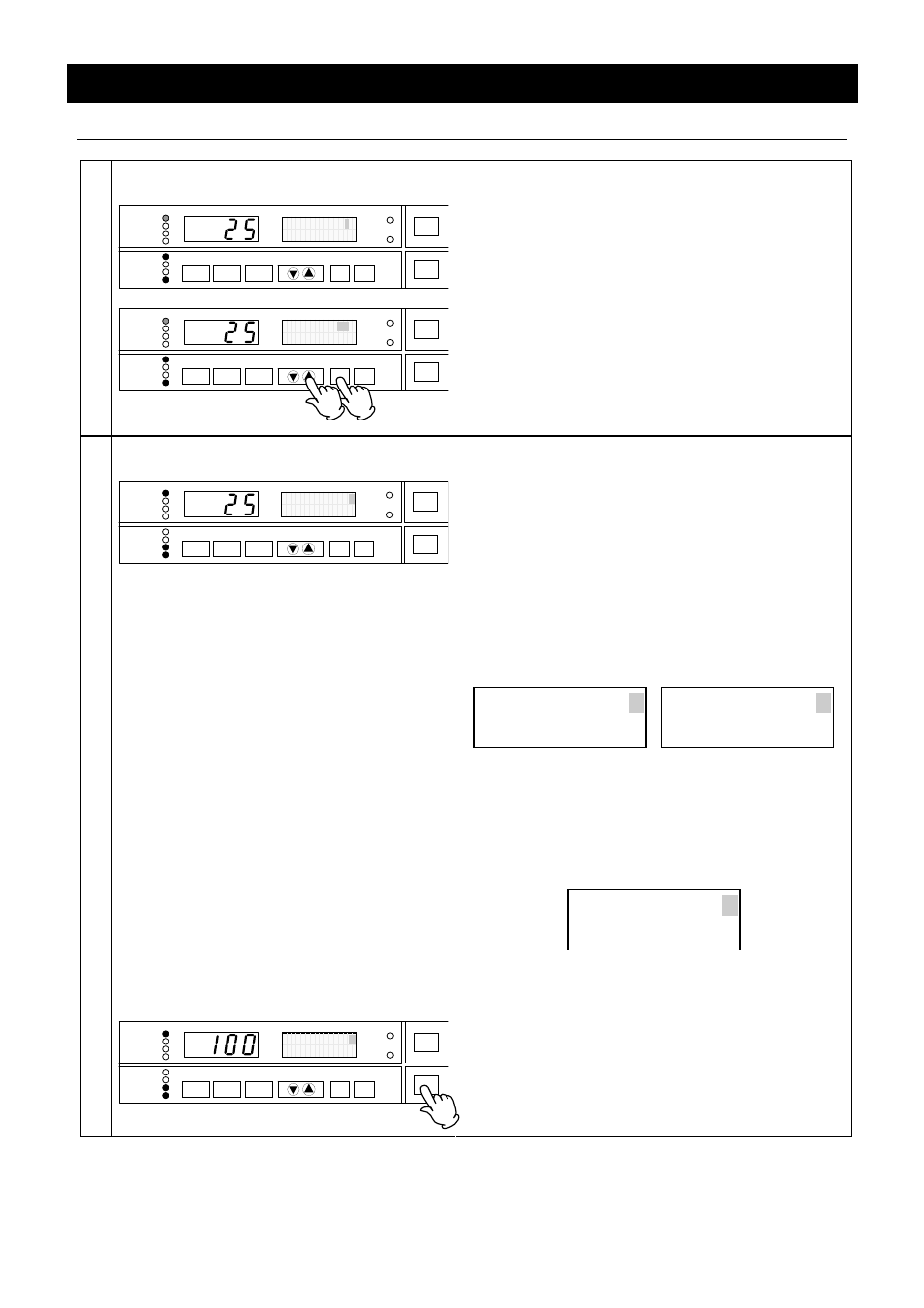

Operation Method

Fixed Temperature Operation

3

Set temperature

AUTO START

FIXED TEMP

AUTO STOP

PROGRAM

STANDBY

END

HEATER

FAN

FUNCTION

PROGRAM

MENU

ENTER

CANCEL

SUBMENU

POWER

TROUBLE

Set TEMP

0℃

Fixed TEMP OPR

DOOR

AUTO START

FIXED TEMP

AUTO STOP

PROGRAM

STANDBY

END

HEATER

FAN

FUNCTION

PROGRAM

MENU

ENTER

CANCEL

SUBMENU

POWER

TROUBLE

Set TEMP

100℃

Fixed TEMP OPR

DOOR

The setting temperature input screen is
displayed. The Sub Display indicates "Set
TEMP" and the numeric character that indicates
temperature blinks.

Set the temperature using the "▲▼".

Press the ENTER key to decide the temperature

and start the fixed temperature operation.

Start operation

AUTO START

FIXED TEMP

AUTO STOP

PROGRAM

STANDBY

END

HEATER

FAN

FUNCTION

PROGRAM

MENU

ENTER

CANCEL

SUBMENU

POWER

TROUBLE

Set TEMP

100℃↑

Fixed TEMP OPR

DOOR

The blinking FIXED TEMP lamp lights on when

the fixed temperature operation starts. The unit
starts to control temperature according to the
setting temperature. The HEATER lamp lights
on when the heater is on.

The Sub Display displays the setting temperature.

The arrow which indicates the state of
temperature control is also displayed with
blinking. The direction of arrow shows as
follows depending on the relation between the
setting temperature at operation start and that in
furnace.

Set TEMP

100℃↑

2002/01/01 12:00

Set TEMP

100℃↓

2002/01/01 12:00

(When setting temperature is
higher than temperature in
furnace)

(When setting temperature is
lower than temperature in
furnace)

The direction of arrow shows as shown below

when the temperature in furnace reaches to
within -3 to 6℃ of setting temperature.

Set TEMP

100℃→

2002/01/01 12:00

(When temperature in furnace
reaches to around setting
temperature)

4

AUTO START

FIXED TEMP

AUTO STOP

PROGRAM

STANDBY

END

HEATER

FAN

FUNCTION

PROGRAM

MENU

ENTER

CANCEL

SUBMENU

POWER

TROUBLE

Set TEMP

100℃→

Fixed TEMP OPR

DOOR

Press the POWER key to stop operation.
