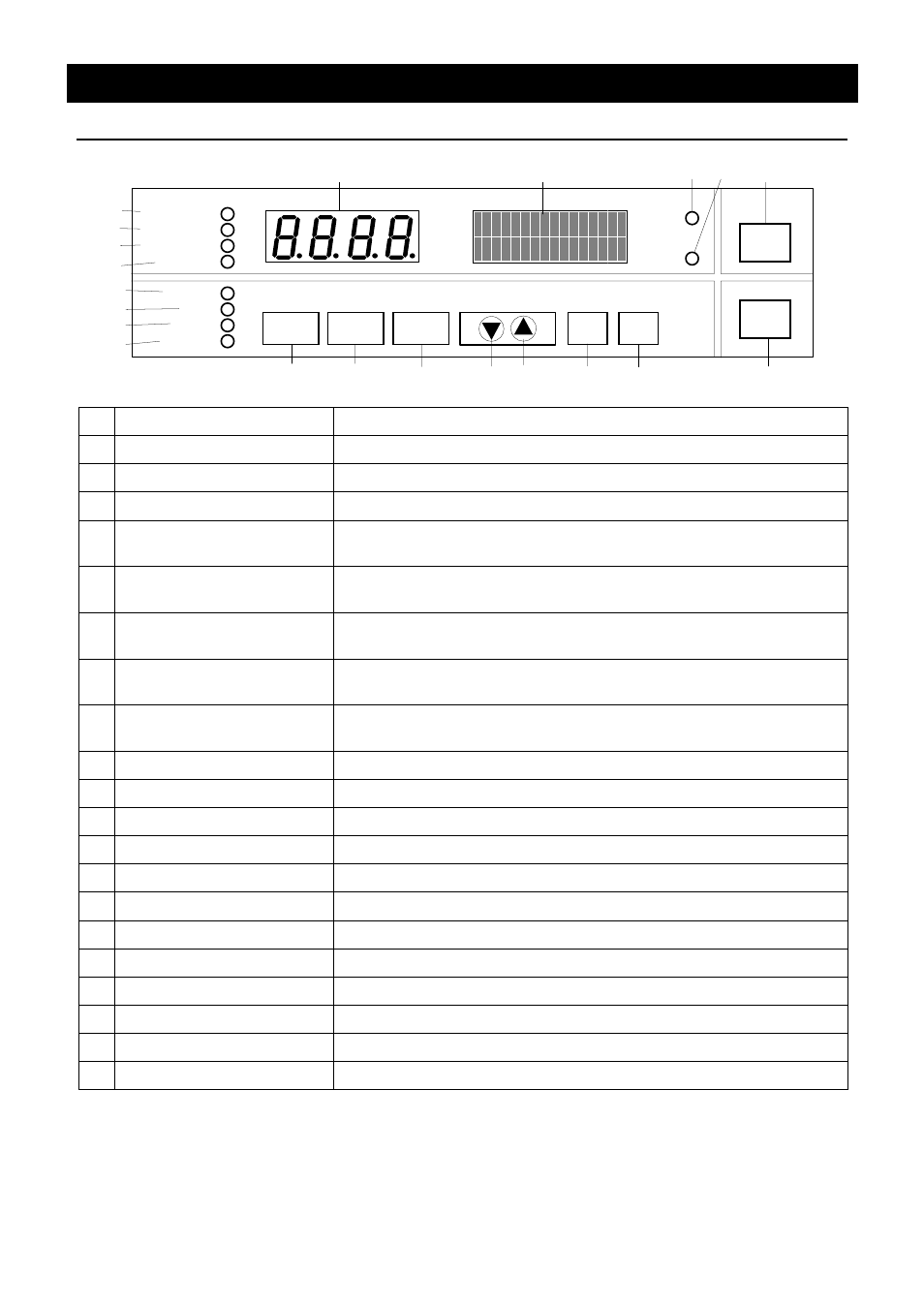

Description and Function of Each Part

Control Panel

AUTO START

FIXED TEMP

AUTO STOP

1

2

3 21

9
10
11
12

13

14 15

16 17

18

19

20

5
6
7
8

PROGRAM

STANDBY

END

HEATER

FAN

FUNCTION

PROGRAM

MENU

ENTER

CANCEL

SUBMENU

POWER

TROUBLE

DOOR

4

1 Main Display:

Displays the measured temperature and error code.

2 Sub Display:

Displays the operation and setting information.

3 DOOR lamp:

Lights while the door is opened. (Disabled in this unit.)

4 TROUBLE Lamp:

Blinks when a trouble occurs.

5 FIXED TEMP lamp:

Lights while the fixed temperature operation is running.

Blinks while the choosing operation mode.

6 AUTO STOP Lamp:

Lights while the auto stop operation is running.
Blinks while choosing the operation mode.

7 AUTO START Lamp:

Lights while the auto start operation is running.
Blinks while choosing the operation mode.

8 PROGRAM Lamp:

Lights while the program operation is running.

Blinks while choosing the operation mode.

9 STANDBY Lamp:

Lights while the device is in standby state.

Blinks while the device is in startup wait state.

10 END Lamp:

Blinks at end of the autostop or program operation.

11 HEATER Lamp:

Lights while the heater works.

12 FAN Lamp:

Lights while the fan works.

13 FUNCTION Key:

Starts the function menu.

14 PROGRAM Key:

Starts the program menu.

15 MENU Key:

Starts the operation menu.

16 ▼(Down) Key:

Lowers down the setting value.

17 ▲(Up) Key:

Rises up the setting value.

18 ENTER Key:

Settles the inputted value/item.

19 CANCEL Key:

Cancels the current inputting.

20 POWER Key:

Turns ON/OFF the power.

21 SUBMENU Key:

Used for operation with the optional accessory.
