Operation Method

Auto Stop Operation

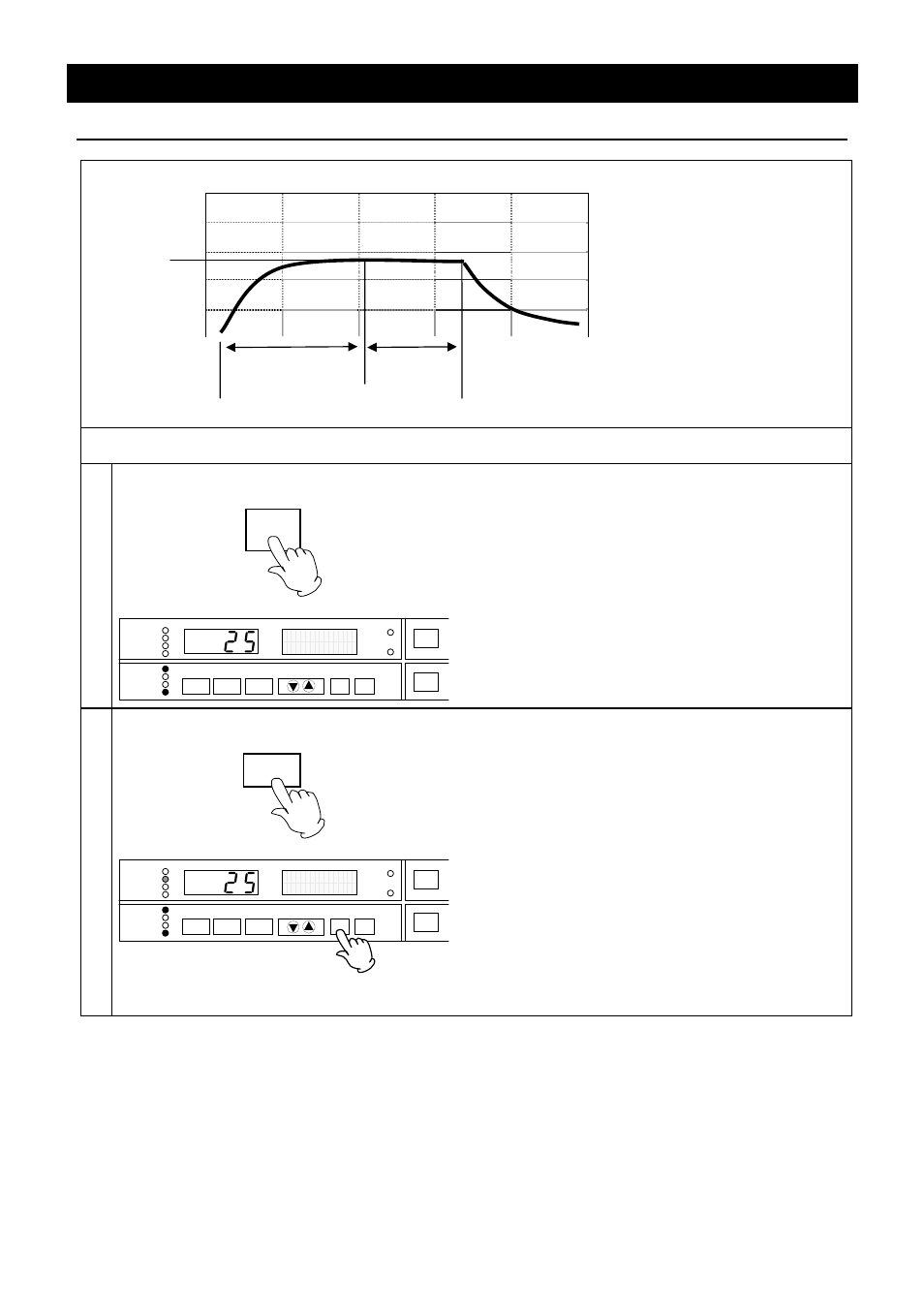

As shown in the following figure, the device stops operating automatically by setting the timer.

Setting of the Auto Stop Operation

1

Turn on the power

POWER

AUTO START

FIXED TEMP

AUTO STOP

PROGRAM

STANDBY

END

HEATER

FAN

FUNCTION

PROGRAM

MENU

ENTER

CANCEL

SUBMENU

POWER

TROUBLE

Standby

2002/01/01 12:00

DOOR

• Turn on the power switch of the unit (earth leakage

breaker). Pressing the POWER key turns on the
power. The Main Display indicates the
temperature in furnace. The Sub Display
indicates "Standby" and the STANDBY lamp lights
on. (Hereafter, this state is called the "standby
state".)

• The FAN lamp lights on and the fan rotates when

"Standby" is displayed. Refer to the page 50 to
stop the rotation of fan.

2

Select operation mode

MENU

AUTO START

FIXED TEMP

AUTO STOP

PROGRAM

STANDBY

END

HEATER

FAN

FUNCTION

PROGRAM

MENU

ENTER

CANCEL

SUBMENU

POWER

TROUBLE

Auto-stop OPR

Select OPR mode

DOOR

Pressing the MENU key displays the operation

mode selection screen.

The Sub Display on the operation mode selection

screen displays the name of operation mode
currently selected with blinking. The
corresponding operation mode lamp blinks at the
same time.

Keep pressing the MENU key until the auto stop

operation mode is displayed.

Press the ENTER key. The auto stop operation

mode is decided.

™

The fixed temperature operation is selected at the

initial setting of unit. The operation mode carried
out last is selected in case other than it.

Operation

period

SV:

Setting temperature


t:

Time

t

Set timer

SV

Activate timer

Start operation (manual) Stop

operation

(auto)

Waiting
