Page 50

via Ethernet, only via USB. The IP Address can be changed by going to the
‘Ethernet’ branch on the Project tree of the configuration software for each of
the remote modules.

4. The PC must have its Default

Gateway address set to the Central
WI-I/O 9-U2

’s Ethernet IP Address or

have a routing rule added to its
default

routing table, e.g. “ROUTE

ADD 10.0.0.0 MASK 255.255.255.0
192.168.1.1

”. This can be done by

selecting

‘Windows Start menu’ then

‘Run’ and type “Cmd” and then press
. This will open a Dos window where you can now type in the Route
command as shown above.

If the system is configured as above it will allow configuration and diagnostics access to
all remote modules from the PC connected at the Central WI-I/O 9-U2 module. WI Mesh
Software can then be used to configure modules across the radio network.

If you wish to be able to configure the system from any location then a special dedicated
module must be setup and all configurations will needed to be done through this
module.

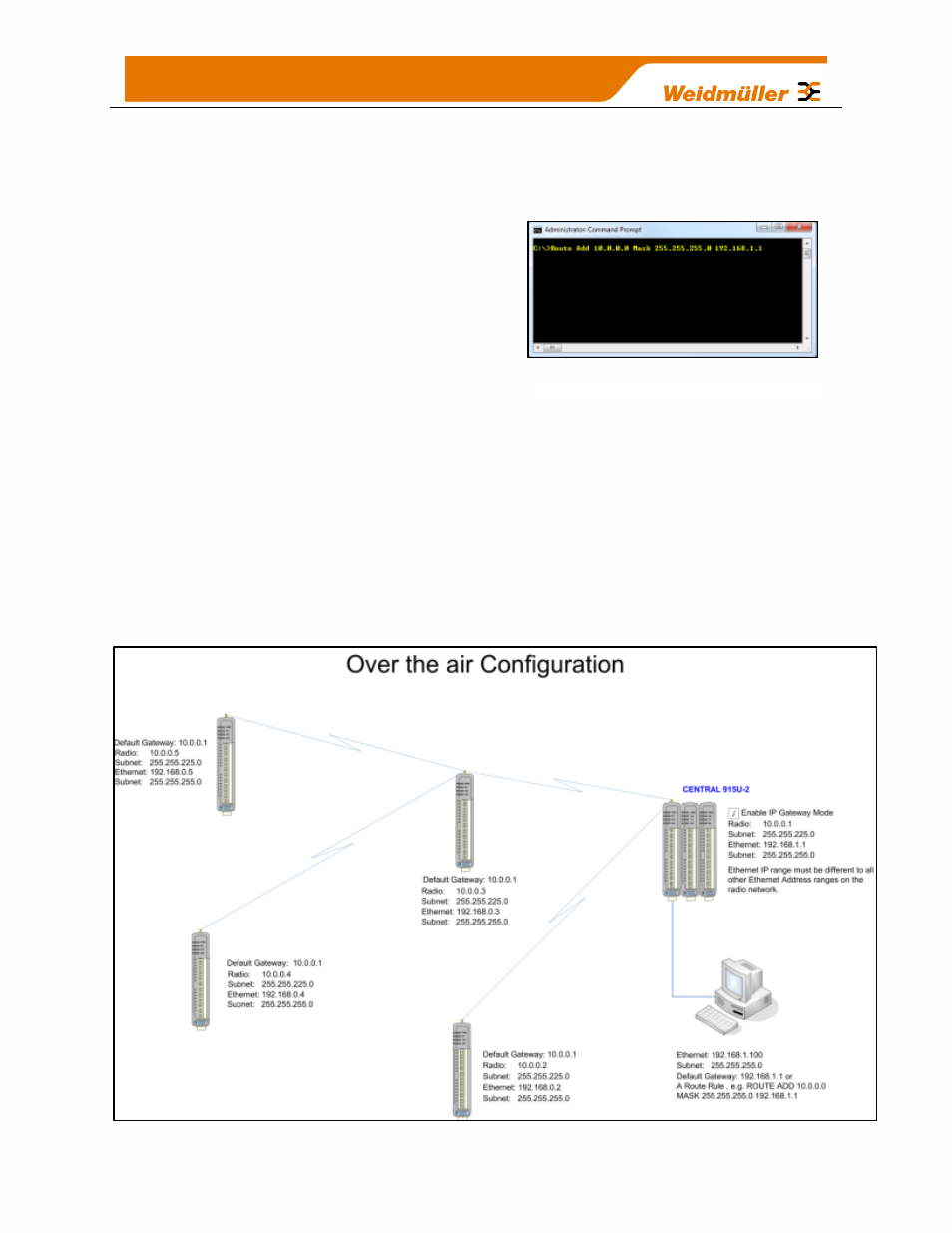

Figure 30 -Over the air Configuration

Figure 29 - Routing Rule
