5.6 Network Statistics (WibMesh)

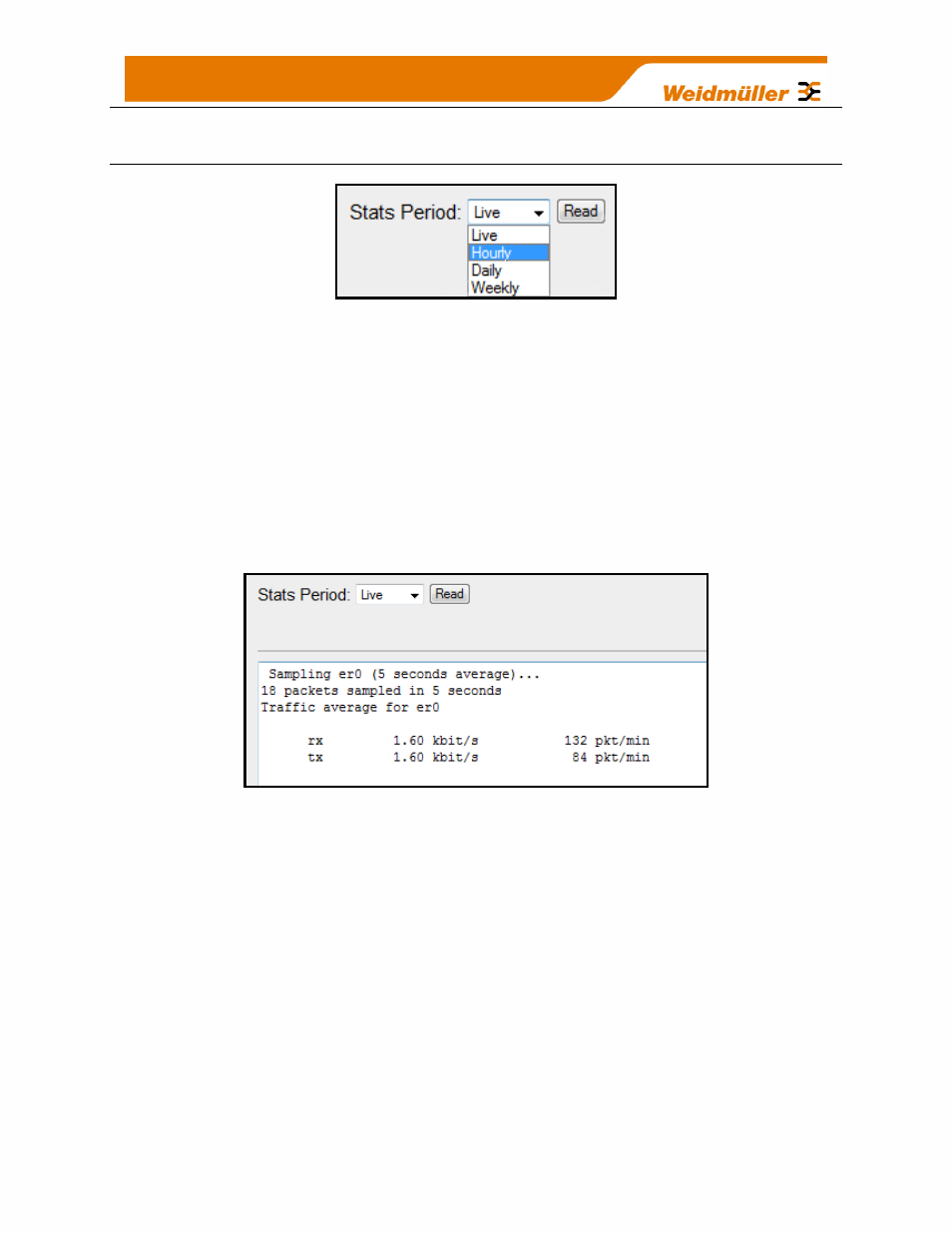

Figure 90 – Network Statistics Period
After enabling the “Gather Statistics” on the Main Network page, this page will display
the average Receive and Transmit traffic throughput over a configured time period.
From the drop down “Stats Period”, select the appropriate sample period then press the
“Read” button.
The following is a list of available sample periods and what will be displayed:
Live, this will display the average Transmit and Receive data through put in kbit/s and
the number of data packets seen on the radio interface (er0), displayed in packet per
minute.
Figure 91 – Network Statistics
Hourly, this will display a graph showing overall transmit (t) and Receive (r) data on an
hourly scale in accordance with the module Date and time stamp.
(“rt” indicate both
Transmit and Receive)
Below the graph is a table showing the average data throughput (in packets) for
transmit and receive and for each hour.
