46

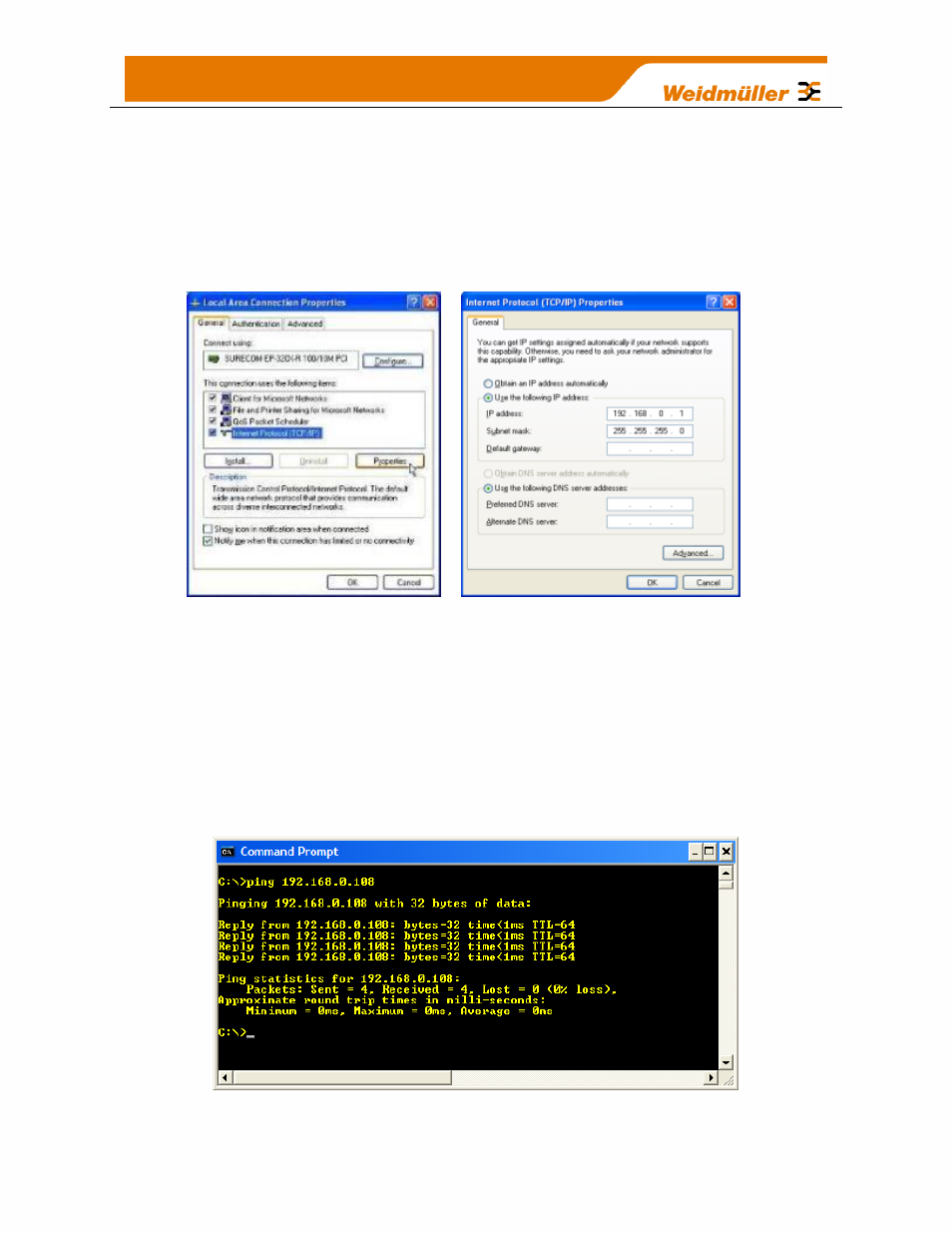

Open “Network Settings” on your PC under Control Panel. The following description is
for Windows XP - earlier Windows operating systems have similar settings.
Open “Properties” of Local Area Connection.
Select Internet Protocol (TCP/IP) and click on Properties.
On the General tab, enter IP address 192.168.0.1, Subnet mask 255.255.255.0 and
press “OK”
Figure 23 – Network Settings
The simplest way to check Ethernet communications is to use the “Ping” command
From the Windows Start menu,
select “Run” then type “command”
A Command Prompt DOS window will open and from there you can use the Ping
command to check if you are able to connect to the module.
Type ping 192.168.0.1XX (where XX is the last two digits of the serial number)
You should then see a reply like below.
Figure 24 - Ping
