Weidmuller G438 Ultra SlimPak User Manual

G438 ultra slimpak

background image

Weidmuller Ltd.
10 Spy Court
Markham, ON L3R 5H6
Tel: (905)475-1507
Fax: (905)475-5855

Weidmuller Ltd
821 Southlake Blvd.
Richmond, VA 23236 U.S.A.
Tel: (804)794-2877
Fax: (804)794-0252

ISO 9001 Registered

Electronic Interface Modules

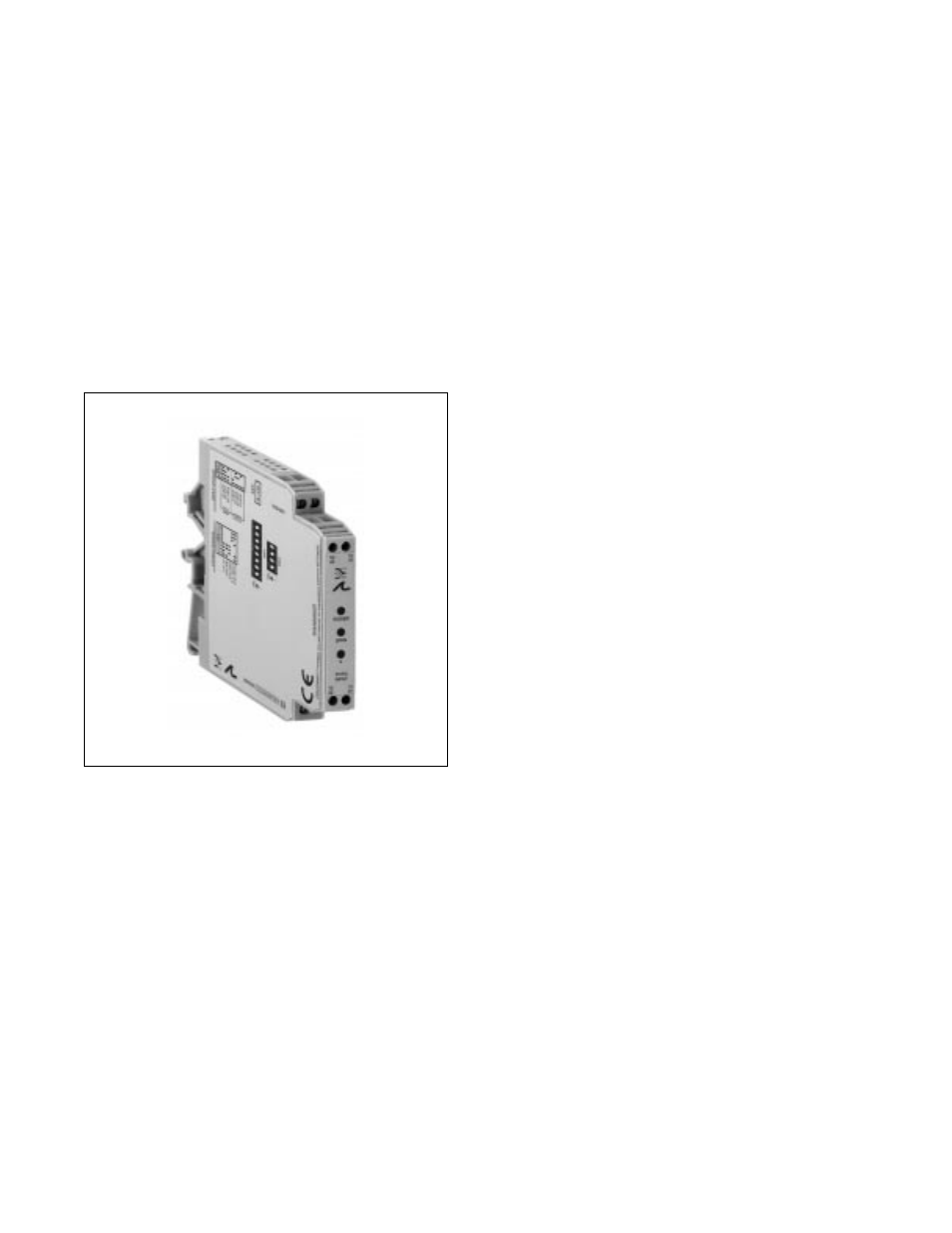

G438 Ultra SlimPak®

Potentiometer Input, Field Configurable
Signal Conditioner

• field configurable via DIP switches for different input-

output combinations

• provides a DC output in proportion to a potentiometer

input

• potentiometers from 100

M to 100kM

• wide ranging zero and span with 80% adjustability

• 5 field configurable output ranges 0-5V, 0-10V,

0-1mA, 0-20mA, 4-20mA

• flexible power supply accepts 9 to 30Vdc

• ASIC technology for high reliability

• CSA approved, UL recognized, CE marked
