28
“Factory Boot” switch
The “Factory Boot” switch is used for factory setup and diagnostics. This switch should
not normally be used, except if advised by WEIDMULLER support.
USB Host port
This port is a USB Host (Master port), which can interface with USB storage devices for
data logging (Future) and for upgrading the module Firmware
– See section 4.4.7
“System Tools” for details on how this is done.
Dipswitches
The Dipswitches are used to select a number of functions within the module; the table
below indicates the different switch positions.

Dipswitches 1 to 2
– Selection for measuring Current or Voltage on Analog Input
3. Set DIP switches ON to measure Current (0-20mA) and OFF for Voltage (0-
5VDC).

Dipswitches 3 to 4 – Selection for measuring Current or Voltage on Analog Input
4. Set DIP switches ON to measure Current (0-20mA) and OFF for Voltage (0-
5VDC).

Dipswitch 5 – DIP Switch not used

Dipswitch 6
– When set to ON (Enabled) and the module is restarted; it will boot
up with a known factory default configuration including a default IP address for
Ethernet connection. (Refer to Chapter 4 -
“Default IP Address”).
Note: When dipswitch is ON, Radio and I/O functionality is disabled.

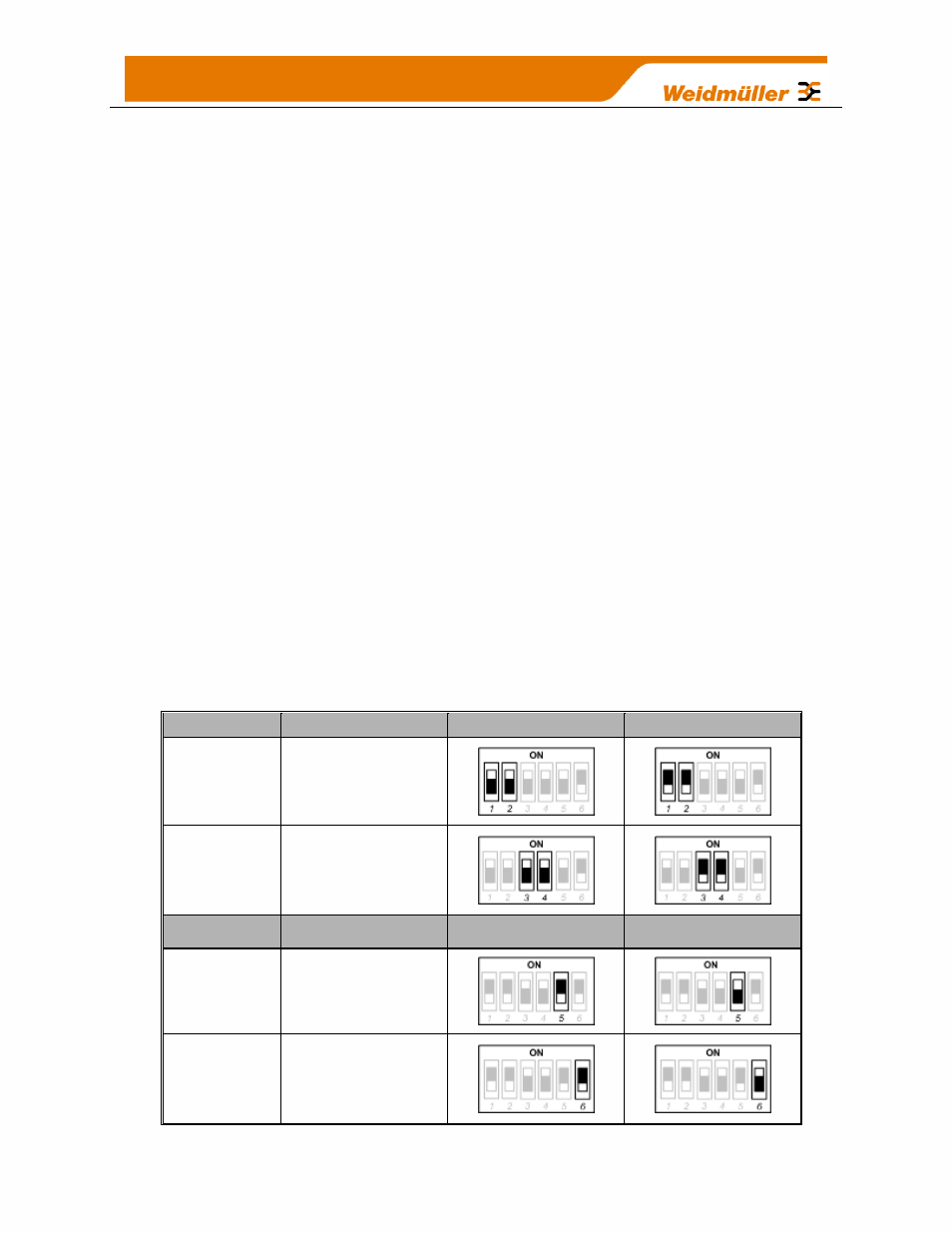

Switch Function Current Voltage
DIP 1 & 2 Analog Input #3
DIP 3 & 4 Analog Input #4
Switch Function Disabled Enabled
DIP 5 Not used
DIP 6 Setup Mode
