47
You can then open Internet Explorer and ensure you can connect to the IP address
selected. If the PC uses a proxy server, ensure that Internet Explorer will bypass the
Proxy Server for local addresses.
This option may be modified by opening Tools -> Internet Options -> Connections Tab -
> LAN Settings->Proxy Server -> bypass proxy for local addresses.
Enter the default IP address for the WI-I/O 9-U2 https://192.168.0.1XX where XX is the
last two digits of the serial number.
Enter the username “user” and default password “user”.
When Configuration is complete switch the WI-I/O 9-U2 Factory Default dip-switch to
RUN and cycle power to resume normal configured operation.

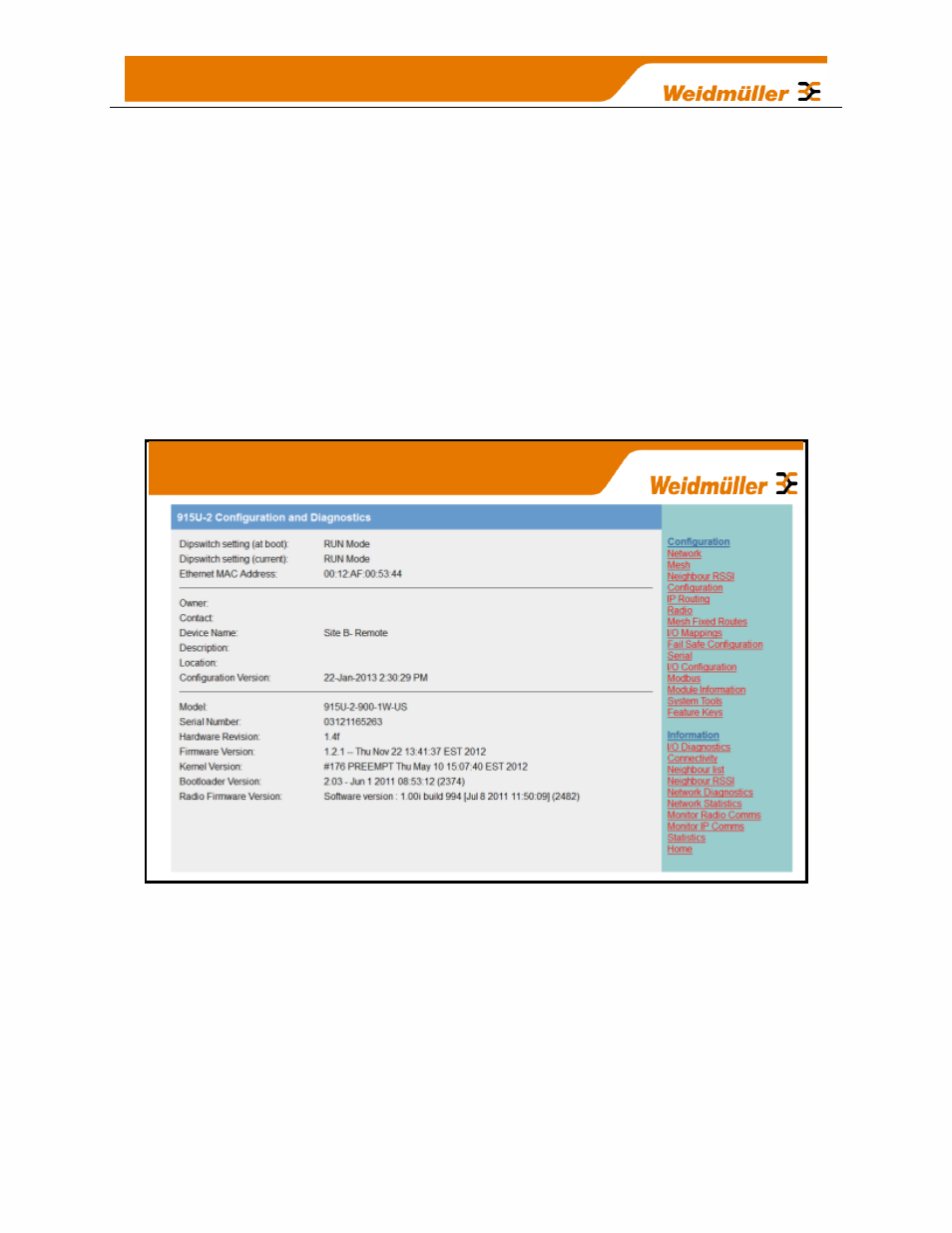

You should now see the Module Welcome Screen (below)
Figure 25 – Main Welcome Screen
