5.7.3 WibNet
– Monitor Comms

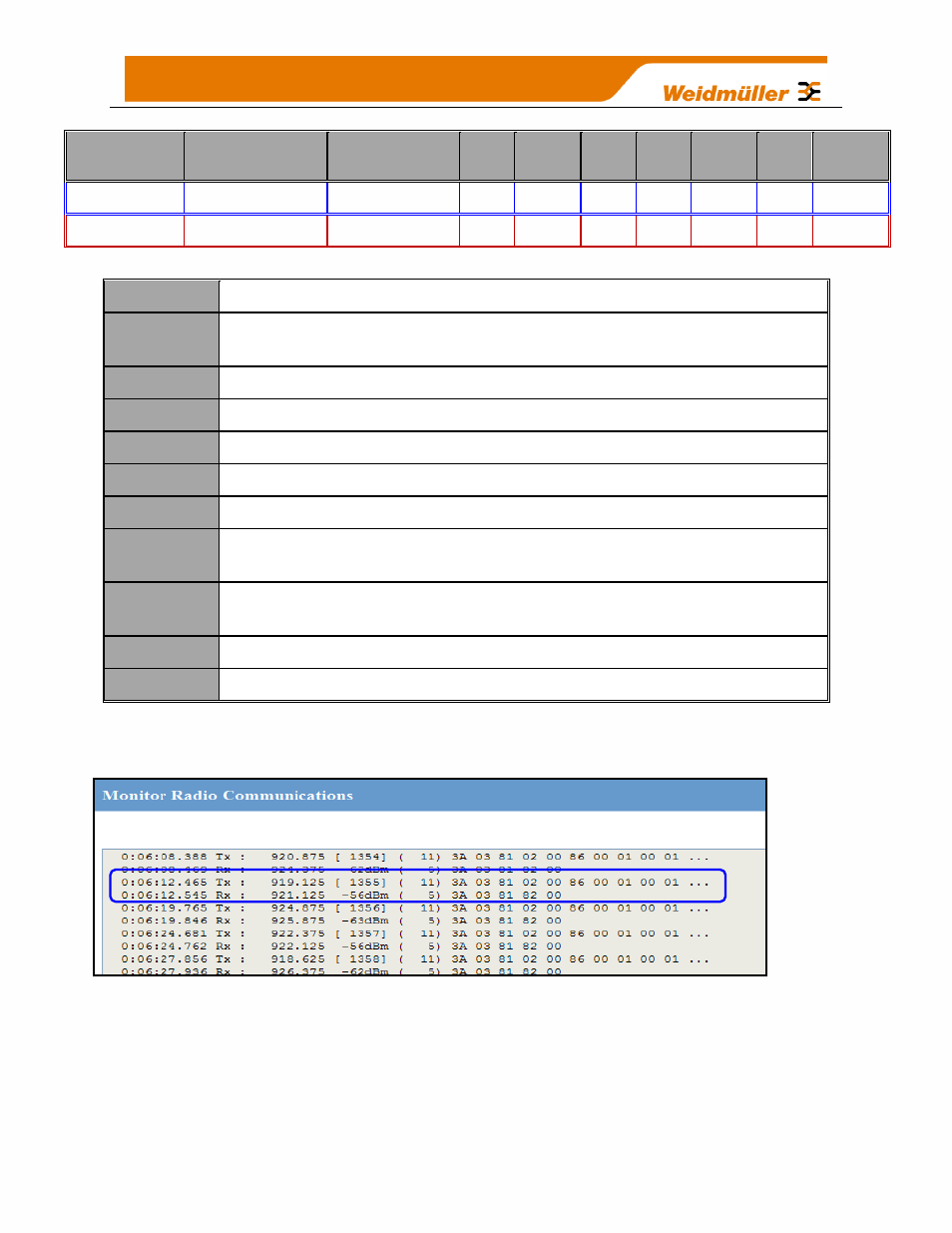

Figure 96 - WibNet Monitor Comms
The above screen shot shows the Received and Transmitted WibNet data frames.
The Table below shows an excerpt from the above screen shot.
Data frames are displayed similar to the WibMesh Monitor Radio Comms except the
data is a different format.
Below that is another table explaining each of the field within the data frame.
Time Source IP Dest IP Len Type Seq Ack Dest Cnt Val
03:02:45.073629 192.168.2.146.51891 192.168.2.143.4370 7 WRITE 9 1 1 11111110
03:02:45.075693 192.168.2.143.56678 192.168.2.146.4370 1 ACK 9
Time Message Time Stamp – Time from when module was last started
Header
Displays if message is a receive (In) or a transmit (Out) as well as the
type and size of the Ethernet frame
Source IP Originating or Source IP Address
Dest IP Destination IP Address
Len Total length of WEIDMULLER data
Type Type of Message, i.e. Write, Read, Gather /Scatter, Etc.
Seq Sequence number of the message
Ack
Indicates if the Weidmuller data frame is configured to acknowledge or
not acknowledged. This is configured in each mapping.
Dest
I/O address at the destination
– where the data will be written to or read
from.
Cnt
Total I/O count from the “dest” address above
Val Data values – the number of value will depend on I/O count.
