11. Once the tether is attached, push the tether cable up into the ceiling, away from the LEDs, while
slowly raising the reflector into the ceiling opening. It will make it easier to install the reflector if
the keyhole slots in the reflector top flange are generally lined up in the same location as the
reflector mounting buttons on the light engine, visible from below the ceiling on the yoke bracket
on either side of the LED circuit board (See FIG. 8 & FIG. 9).

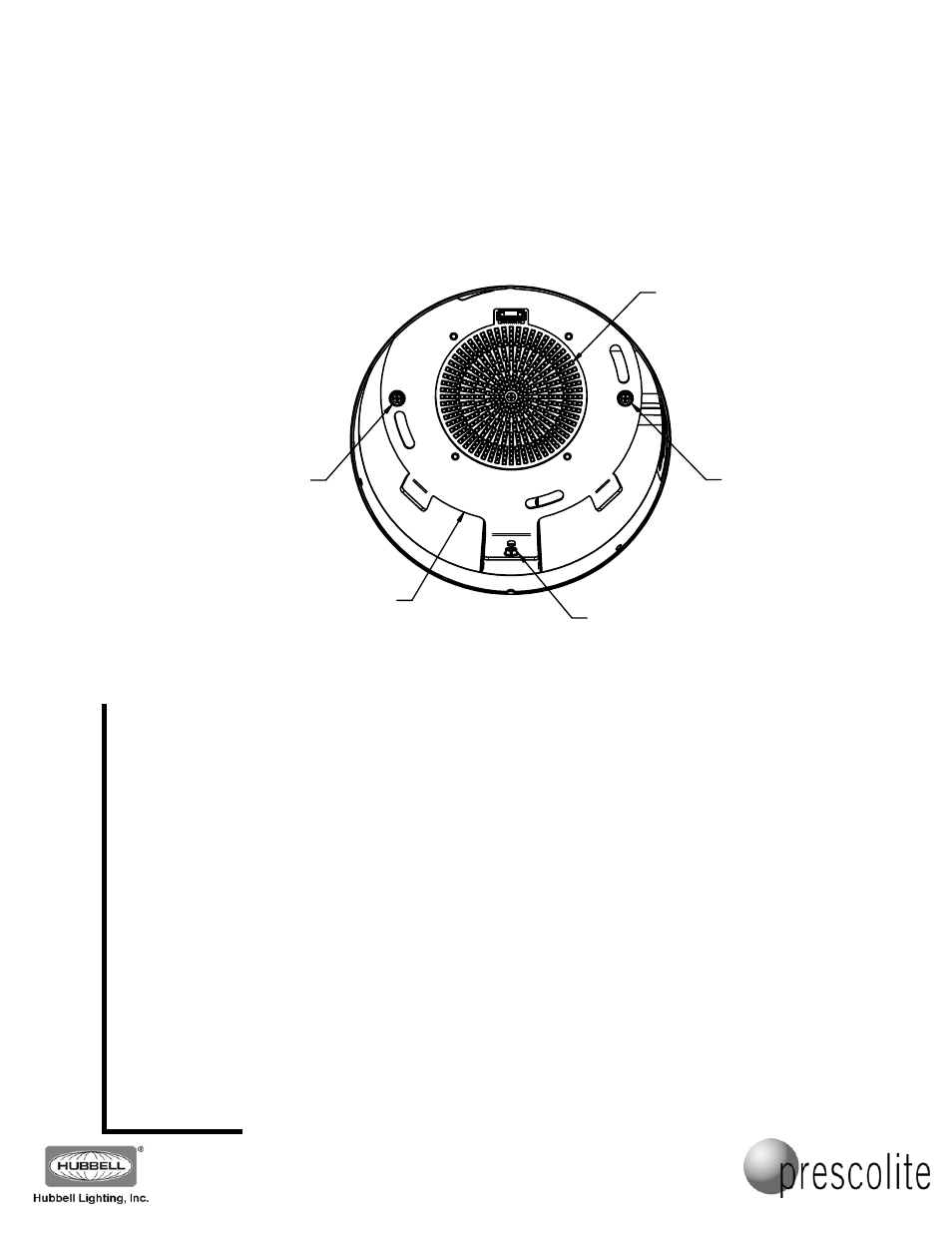

FIG. 9
12. Push the reflector into the fixture until it contacts the light engine yoke and rotate it slightly from
side to side until the reflector mounting buttons fit into the open holes in the keyhole slots on the
reflector. Once these buttons are in the keyhole slots, push up on the reflector to seat it against
the light engine, and rotate the reflector clockwise until the buttons lock into the spring detents at
the ends of the keyhole slots. A slight click will be heard/felt when the reflector is properly locked
to each reflector mounting button on the light engine. If the reflector flange is not flush with the
ceiling after installation, or if the keyhole slots are difficult to line up, the light engine yoke may
need to be checked for proper attachment location, or the reflector upper flange may need to be
straightened if it was accidentally bent. There is enough flexibility in the light engine yoke
mounting slots so the location can be finely adjusted up or down if the need arises.
KEEP THESE INSTALLATION INSTRUCTIONS!
REFLECTOR
MOUNTING
BUTTON
REFLECTOR
MOUNTING
BUTTON
LIGHT ENGINE YOKE
ADJUSTMENT SCREW
(ONE OF TWO)
LIGHT
ENGINE
YOKE
LEDs
