Prescolite LD6_D - Manual

Instruction
Sheet
www.prescolite.com
•
Prescolite
TollFree
Technical
Support
1.888.PRS.4TEC
•
Hours:
8am
- 5pm
ET
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93011923
Instruction
Sheet
INSTALLATION INSTRUCTIONS
LD6_D SERIES
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and
instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and
proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during
servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other poten-
tial hazard. Product must be mounted in locations and at heights and in a manner consistent with its
intended use, and in compliance with the National Electrical Code and local codes. The use of accessory
equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do
not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such
as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as this may
cause an unsafe condition.
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other
reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
INSTALLATION
1. Insert supplied #8-32 x 1/2” screws into supplied S-4 strap
through tapped holes located 2-3/4” apart in orienation
shown in Fig 1. (Holes in fixture canopy must line up with these
screws.)
2. Mount strap to outlet box with screws (by others) with screw
stems facing outward. Rotate strap to adjust fixture to correct
position.
3. Connect supply wires: Black to Line, White to Common, Green
to Ground. (DM only: Connect Gray (+) and Violet (-) to appro-
priate 0-10V dimming control per National Electrical Code and
local codes.
4. Secure fixture canopy with two mounting nuts supplied.
5. Fixtures used in wet locations, place the two supplied o-rings
under the heads of the mounting screws and secure mounting
nuts. Area around fixture canopy and mounting surface must be
sealed.
LIGHT ENGINE REPLACEMENT
1. Remove lensed reflector assembly by pulling from the edges.
Reflector assembly is held by a safety cable.
2. Loosen captive screw holding the light engine. Carefully lower
and disconnect light engine connector from driver connector.
See Fig. 2.
3. Connect replacement light engine connector to driver connector
and line up light engine heat sink fins with mounting bracket
until seated into place and tighten captive screw.
4. Reinstall reflector assembly.
LED DRIVER REPLACEMENT
1. Remove lensed reflector assembly by pulling from the edges.
Reflector assembly is held by a safety cable.
2. Loosen captive screw holding the light engine. Carefully lower
and disconnect light engine connector from driver connector.
See Fig. 2. Set aside.
3. Remove driver bracket mounting screw attaching safety cable
and remove reflector assembly. Set aside.
4. Remove remaining driver bracket mounting screws and lower
driver bracket. Disconnect all driver wiring and replace driver
by removing driver mounting screws. See Fig 2.
5. Mount replacement driver and reconnect wiring according to
installation step 3.
6. Reinstall driver bracket and safety cable holding reflector
assembly using mounting screws. Reconnect light engine con-
nector to driver connector and line up light engine heat sink
fins with mounting bracket until seated into place and install
with captive screw.
7. Reinstall reflector assembly.
NOTE: Do not pinch LED wires between the sliding parts.
KEEP THESE INSTRUCTIONS
701 Millennium Boulevard • Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2009, 10/30/09 revision, All Rights Reserved - Printed in U.S.A.

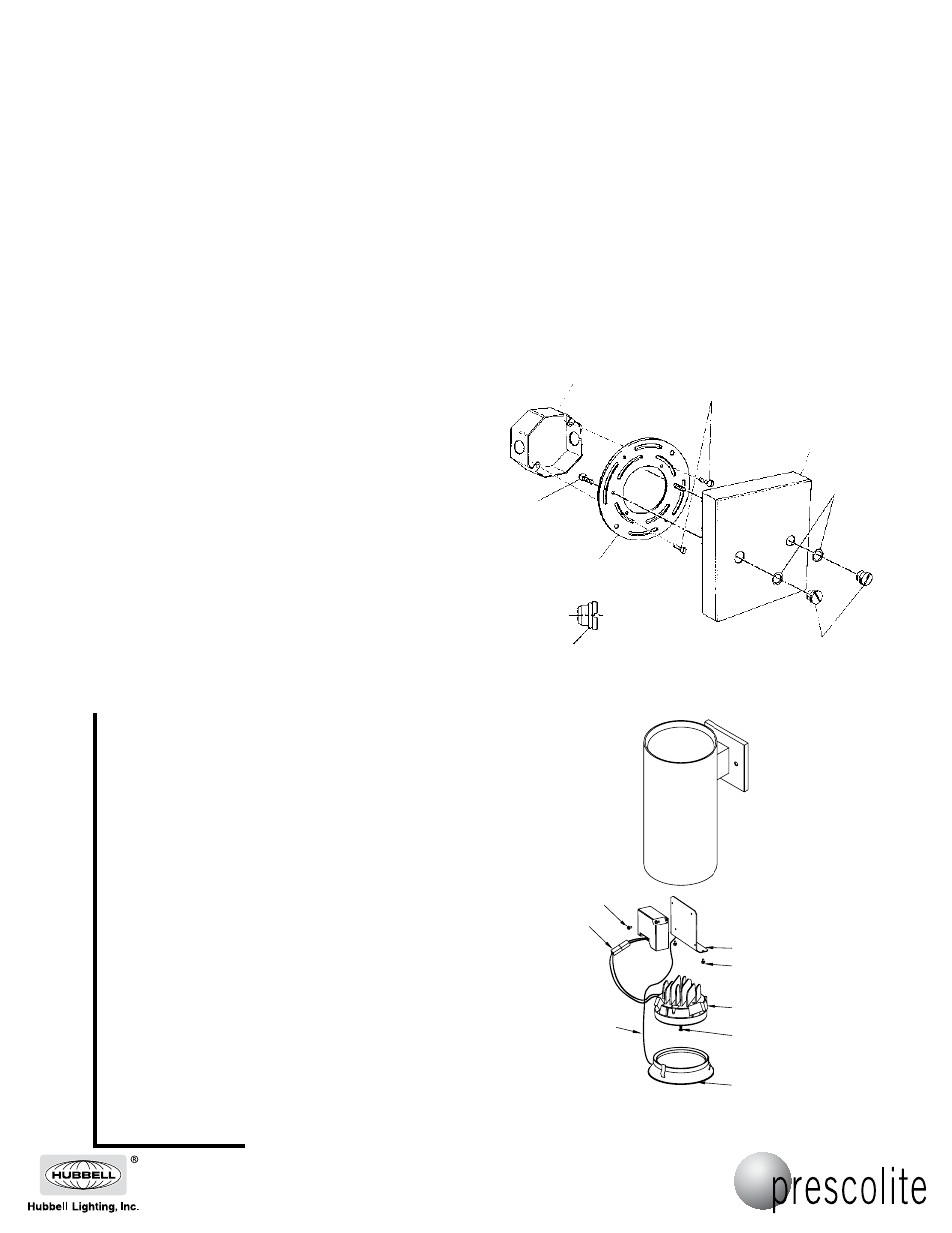

O-Ring Fig. 1
Fig. 2
3 1 ⁄
4
” or 4” Outlet Box
#8-32 Screw
S-4 Strap
Outlet Box Mounting
Screws
Fixture Canopy
O-Ring (See
note 4)
Mounting Nuts
Canopy
Outlet Box
Mounting Screws
Screws #8-32
(2)
Mounting Plate
Light Engine
Mounting Screw
Trim
Driver
Mounting Screws
Driver Bracket
Driver Bracket
Mounting Screws
Light Engine
Connector
Driver
Mounting Screws
Connector
Driver Bracket
Mounting Screws
Driver Bracket
Light Engine
Mounting Screw
Light Engine
Trim
Driver
Mounting Screws
Connector
Driver Bracket
Mounting Screws
Driver Bracket
Light Engine
Mounting Screw
Light Engine
Safety Cable
Trim
Safety Cable
Safety Cable
