FD70 HEADER/ADAPTER
Form 169009 53 Model Year - 2009

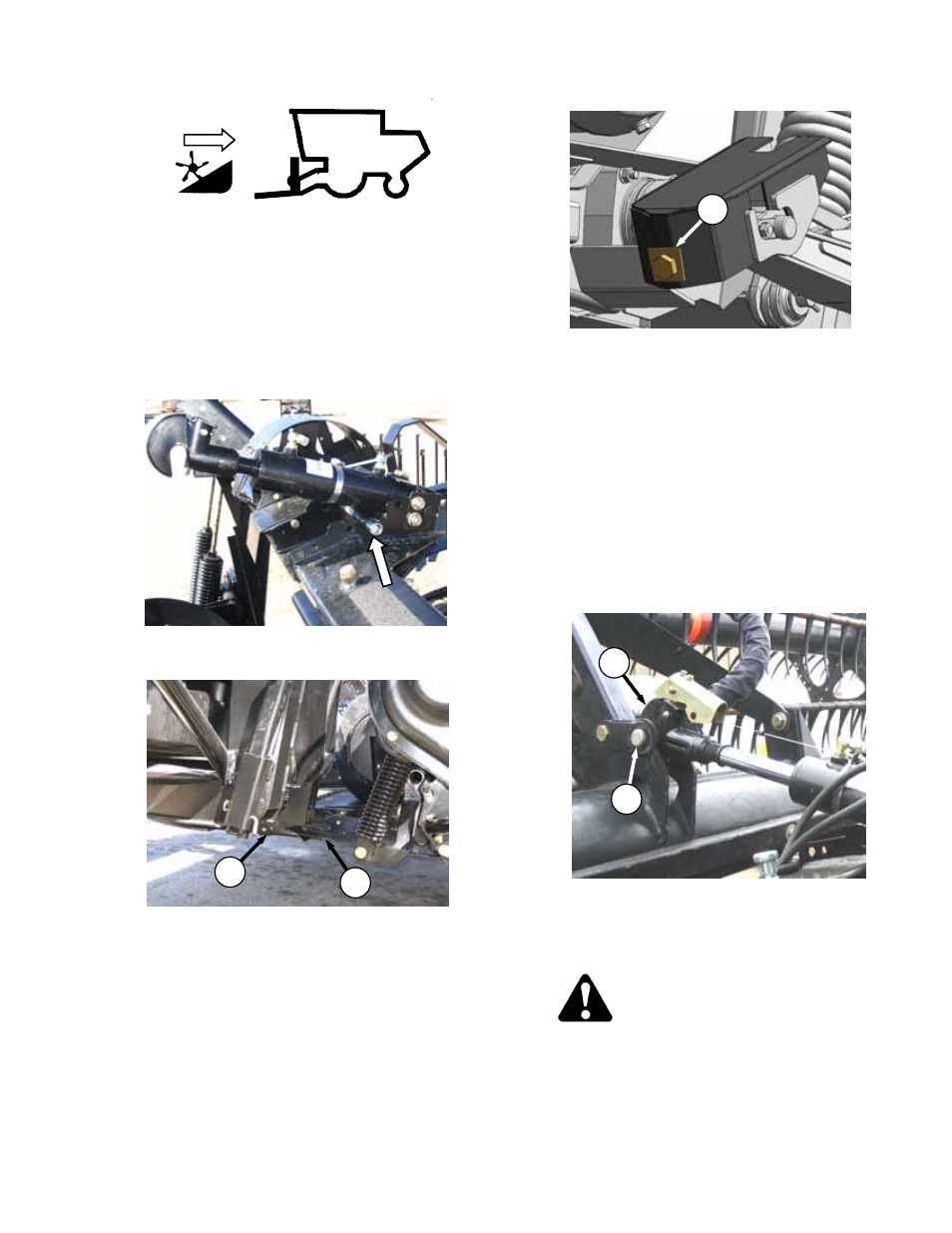

6.2.2 ASSEMBLY
The FD70 FlexDraper can be attached to the
adapter from either field configuration or
transport configuration.
NOTE
Stabilizer/Transport wheels can to be
used in combination with the stand to
support header.
a. Prop up hydraulic center link with pin or
equivalent tool.
b. Lower combine feeder house so that adapter
arms (C) are aligned with header balance
channel (D).
c. Remove bolts (E), washers, and spacers from
adapter legs.
d. Slowly drive forward, again aligning adapter
arms and header balance channel.
e. Keep adapter arm height just under the header
balance channel to ensure adapter leg seats
properly in the header linkage supports.
IMPORTANT
Keep hydraulic hoses clear to prevent
damage when driving into header.
f. Continue forward until adapter arm contacts
stop in balance channel.
g. Connect hydraulic center link as follows:
1. Extend hook (F) and remove prop under
link so that base of hook rests on pin (G).
2. Operate header angle hydraulics to retract
hook until it engages pin and self-latches.
CAUTION
Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.
(continued next page)
E
G
F
D
C
