ADAPTER AND JOHN DEERE 50 SERIES

Form 169009

Model Year - 2009

5.4 JOHN DEERE 50 SERIES

Contour Master, Level Land

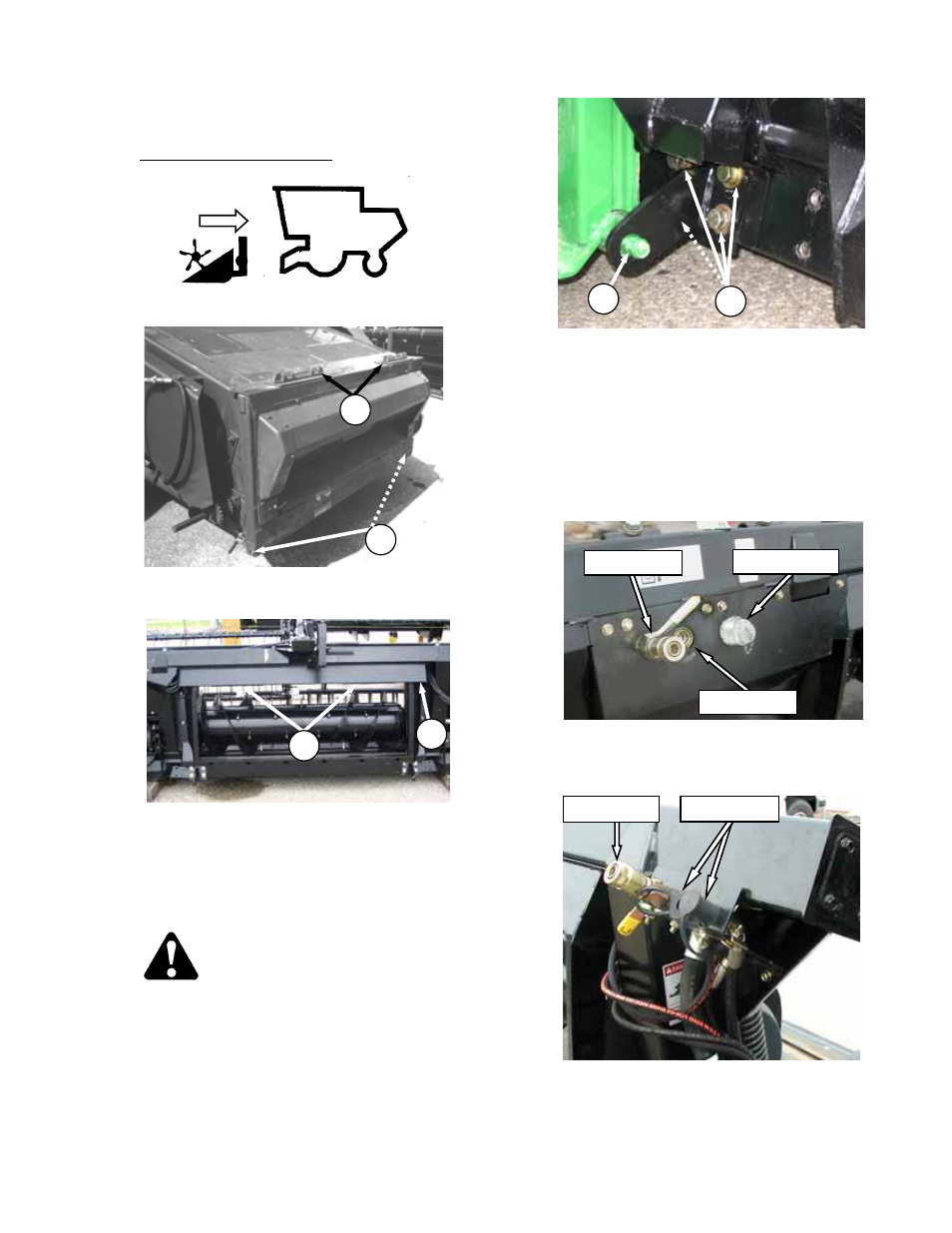

5.4.1 ATTACHMENT

a. Retract pins (A) at bottom corners of feeder

house.

b. Slowly drive combine up to adapter until feeder

house lift lugs (B) are directly under the adapter
top cross member (C).

c. Raise feeder house slightly to lift adapter,

ensuring lift lugs (B) are properly engaged in
adapter frame sockets (D).

CAUTION

Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.

d. Engage pins (A) in adapter.
e. Check that bolts (E) on adapter brackets are

tight.

f. If pins (A) do not fully engage adapter brackets,

loosen bolts (E) and adjust bracket as required.
Re-tighten bolts.

g. At left side of combine feeder house, retrieve

reel aft hose, reel lift hose and electrical
harness.

h. Clean couplers and attach as shown above.
i. At right side of feeder house, disconnect reel

drive hoses and retrieve reel fore hose.

j. Clean couplers and attach as shown above.

(continued next page)

ELECTRICAL

REEL LIFT

REEL AFT

REEL DRIVE

REEL FORE
