D50 & D60 HEADER/ADAPTER

Form 169009

Model Year - 2009

6.1.2 ASSEMBLY

The D50 and D60 Harvest Header can be
attached to the adapter from either field
configuration or transport configuration.

NOTE

Stabilizer/Transport wheels can be used
in combination with the stand to support
header.

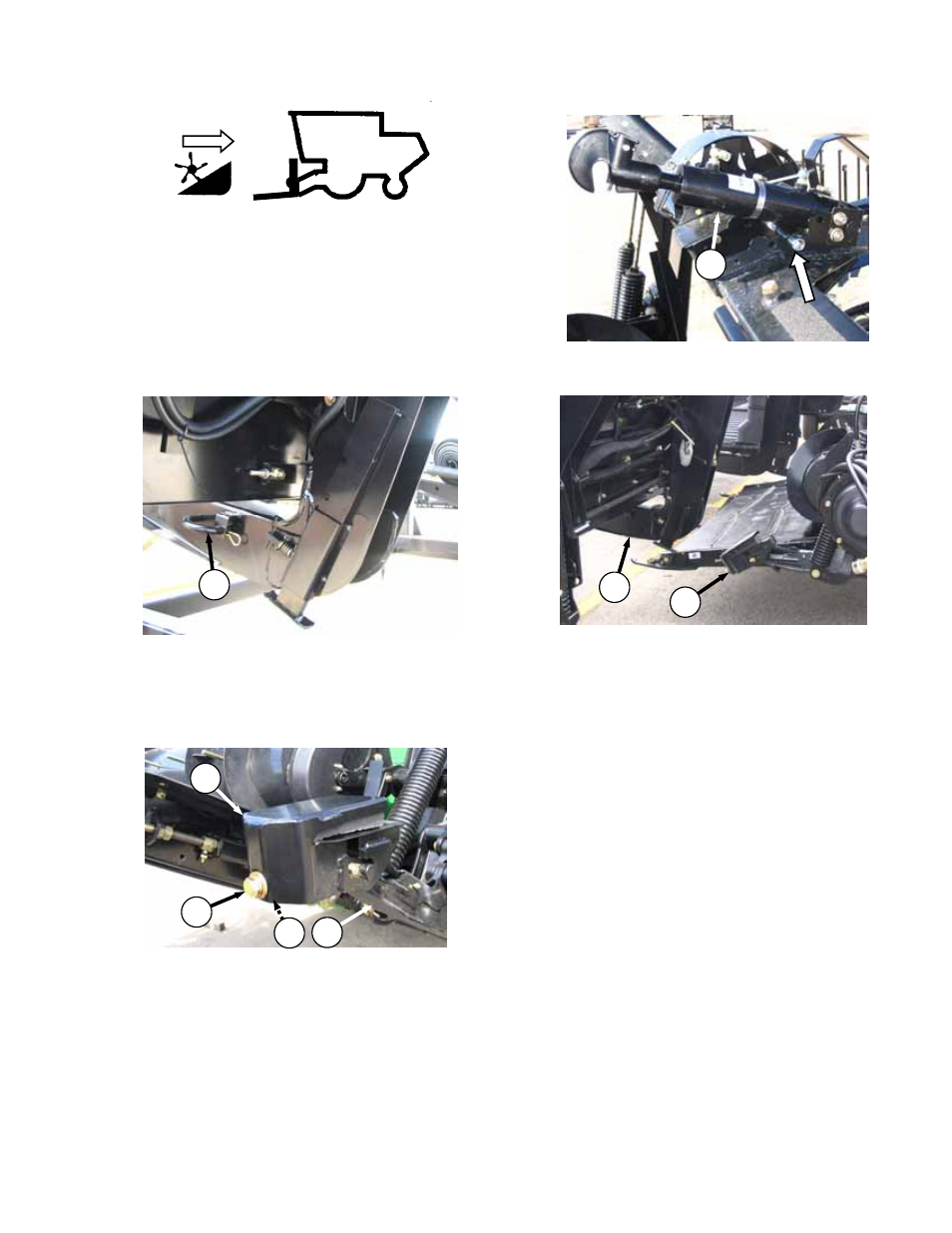

a. Remove lynch pin and remove pin (C) from

each header leg. Temporarily store in safe
place for reinstallation.

b. If not installed, install vibration dampers on

ends of adapter arms as follows:

1. Locate damper (D) onto adapter arm (E).
2. Secure with spacer (F), bolt (G), washer,

and lock-washer.

c. Prop up center link (H) (hydraulic shown) with

pin or equivalent tool.

d. Lower combine feeder house so that adapter

arms (E) are aligned with header legs (J).

e. Slowly drive forward, again aligning adapter

arms and header legs.

f. Keep adapter arm (E) height just under the

header leg (J) to ensure adapter leg seats
properly in the header linkage supports.

IMPORTANT

Keep hydraulic hoses clear to prevent
damage when driving into header.

g. Continue forward until adapter arm contacts

stop in header leg. Raise adapter slightly.

(continued next page)
