Page 27

ADAPTER AND JOHN DEERE 50 SERIES

Form 169009

Model Year - 2009

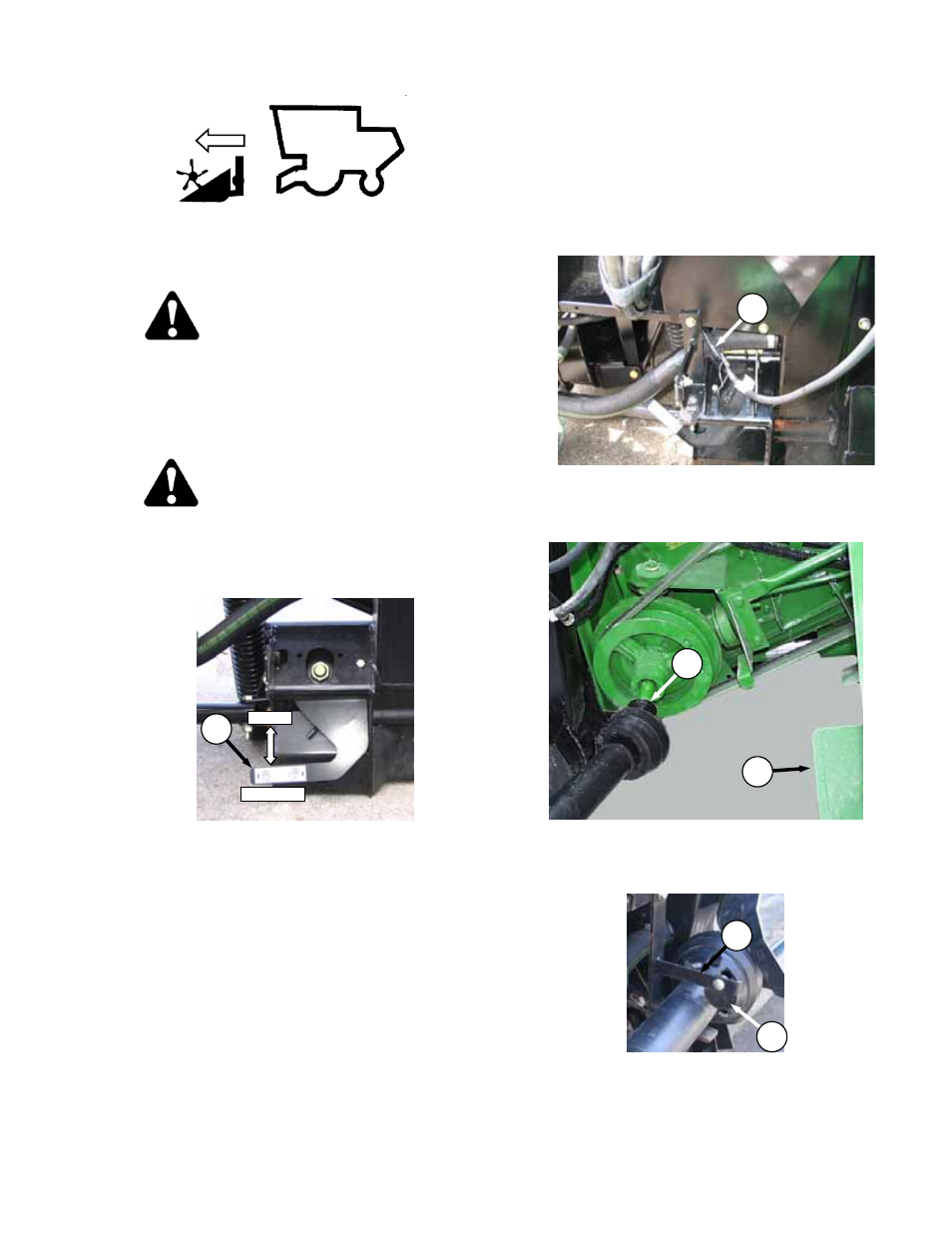

5.4.2 DETACHMENT

a. Choose a level area. Position header slightly

off the ground. Stop engine and remove key.

DANGER

To avoid bodily injury or death from fall of
raised machine, always engage lift cylinder
stops before going under header for any
reason. See your Combine Operator’s
Manual for instructions for use and storage
of header lift cylinder stops.

CAUTION

Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.

b. Engage both adapter float locks by lifting lever

IMPORTANT

If slow speed transport wheels are
installed, header may be detached in
either transport or field mode. If
detaching with wheel in field mode, set
wheels to storage or uppermost working
position. Otherwise header may tilt
forward so that re-attachment will be
difficult. Refer to D50 and D60 Harvest
Header / FD70 FlexDraper Operators
Manual.

IMPORTANT

If stabilizer wheels are installed, set
wheels to storage or uppermost working
position. Otherwise header may tilt
forward so that re-attachment will be
difficult. Refer to D50 and D60 Harvest
Header / FD70 FlexDraper Operators
Manual.

c. If adapter is equipped with reel fore-aft/header

tilt selector, disconnect harness (D) and store
on combine.

d. Open shield (E) on combine. Pull back collar

on drive line and pull drive line (F) off combine
output shaft.

e. Slide driveshaft in hook (G) so that disc (H)

drops to secure driveshaft.

(continued next page)

LOCK

UNLOCK
