MacDon CA20 Operators Manual - Manual (Page 15)

ADAPTER AND CASE 2300, 2500 SERIES
Form 169009 13 Model Year - 2009
5.2 CASE IH 2300, 2500 SERIES
5.2.1 ATTACHMENT

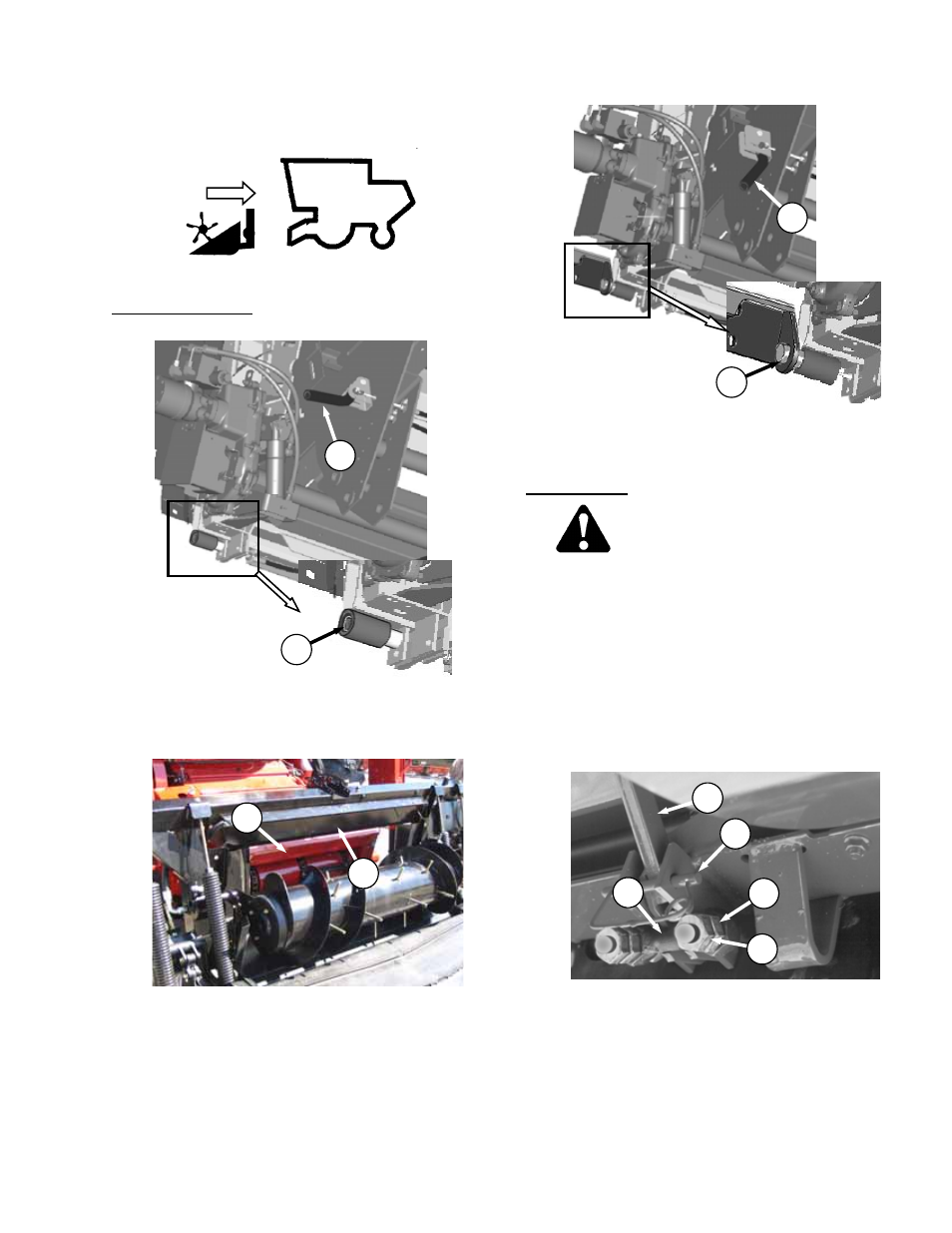

Sliding Pin System
a. Attach adapter to combine as follows:
1. Move handle (A) on left side of feeder
house to up position to retract both pins (B)
at lower corners of feeder house.
2. Slowly drive combine up to adapter until
feeder house saddle (C) is directly under
the adapter top cross member (D).
3. Raise feeder house slightly to lift adapter,
ensuring feeder saddle is properly engaged
in adapter frame.
4. Lower handle (A) to engage pins (B) into
adapter.
5. Proceed to step c.
Latch System
WARNING
To avoid bodily injury or death from
unexpected start-up or fall of raised
attachment; stop engine, remove key and
engage lift cylinder stop before proceeding
with hook-up.
1. Slowly drive combine up to adapter until
feeder house saddle (C) is directly under
the adapter top cross member (D). See
illustration opposite.
2. Raise feeder house fully and engage
combine lift cylinder locks.
3. Remove pin (E) and lower latch handle (F)
(one on each side of feeder house
underside) to hook latch (G).
4. Lift handle to overcenter position to lock.
Requires 40-50 lbf (180-220 N) to move
handle overcenter. Adjust nuts (H) on U-
bolts to vary force required on handle.
(continued next page)
C
D
A
B
B
A
E
F
G
J
H
