Follow the next steps to make your terminal
ready for installation in a system, that is
described further in the manual.

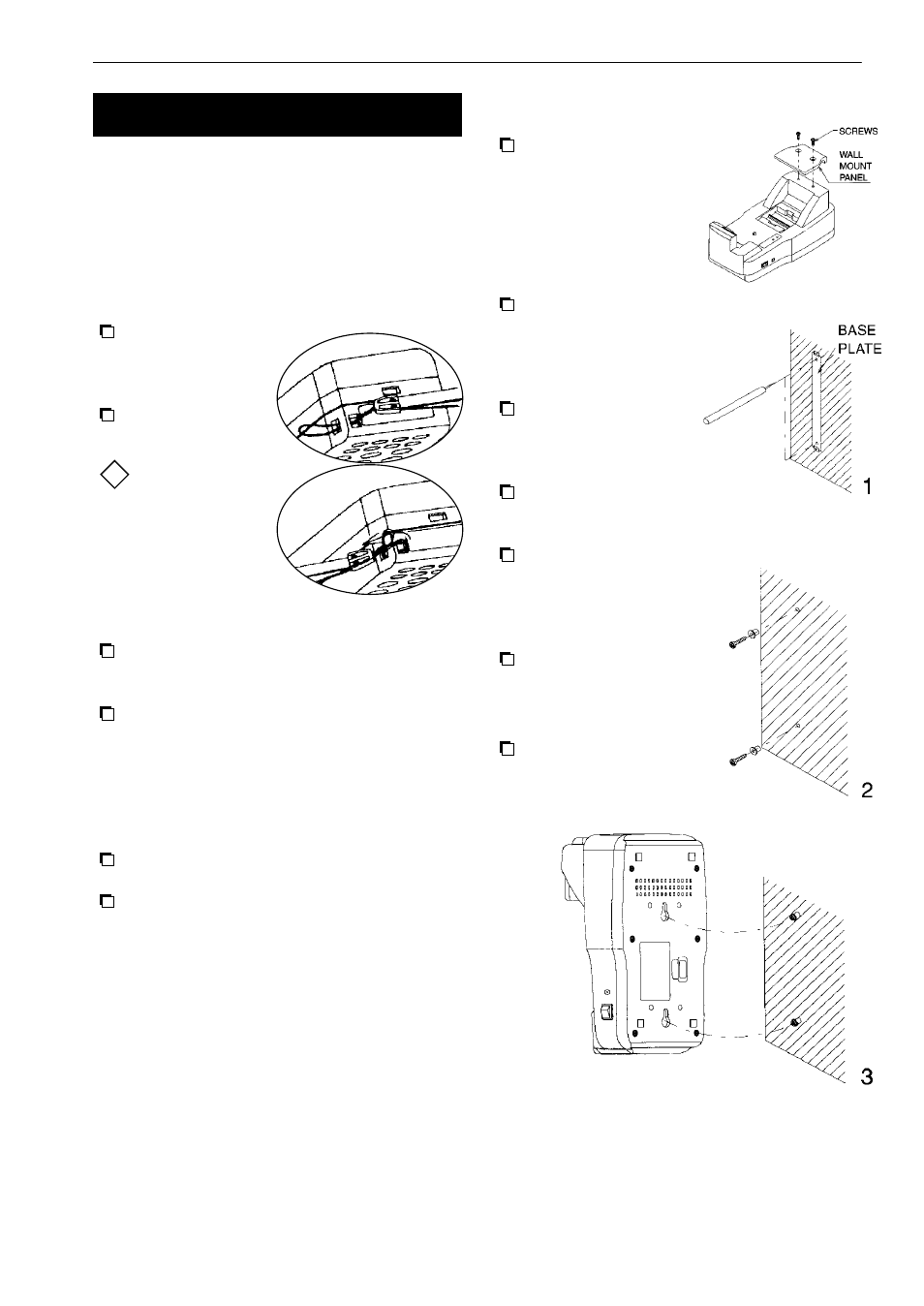

2.4.1. Terminal
To avoid drop use the hand strap.
Fix the small cord of the
strap around the
pillar.
Insert the handle
in the thin loop.
Do not swing the
terminal around.
Start with a full battery
To be sure you start with a full battery,
charge the battery pack according to the
instructions in the next chapter.
Click the battery pack into the terminal,
as instructed in the next chapter.
2.4.2 Cradle
Place for mounting.
Place the cradle in normal office
conditions.
Avoid a place under strong light.
Otherwise IrDa communication may be
disturbed.
Wall mount panel
When the cradle is mounted on the wall, the
wall mount panel will keep the terminal on its
position. As a second function the panel will
protect the IrDa window from both terminal
and cradle from direct sunlight.
!
2.4 ASSEMBLY
Wall mounting instructions
First mount the wall
mount panel on the
cradle.
Locate the place for
mounting and attach
the base plate by
tape.
Mark the position of
the holes of the base
plate. (ref. 1)
Remove the base
plate.
Screw in the screws
with spacers on the
marked positions.
(ref. 2)
Align the body with its
mounting holes to the
spacers. (ref. 3)
Slide down the body
and fix it on the wall.
For power connection read the ‘installing in a
system’ part further in the manual.
