Opticon CRD 1531 User Manual
Crd-1531, Quick start guide
The Netherlands Opticon Sensors Europe B.V.
tel: +31 (0)23-5692700
/ email: [email protected]
U.S.A.
Opticon Inc.
tel: 800-636-0090
/ email: [email protected]
France
Opticon S.A.S.
tel: +33 (0)1-41461260
/ email: [email protected]
Germany
Opticon Sensoren GmbH
tel: +49 (0)6074-91890-0
/ email: [email protected]
Italy
Opticon s.r.l.
tel: +39 (0)051-6321800
/ email: [email protected]
Spain
Opticon Sensores S.L.
tel: +34 (0)902-747469
/ email: [email protected]
Contact
Sweden
Opticon Sensors Nordic AB
tel: +46 (0)8-58548560
/ email: [email protected]
United Kingdom Opticon Limited
tel: +44 (0)1582-635100
/ email: [email protected]
Taiwan
Opticon Far Eastern Ltd.
tel: +886 2-27597444 / email: [email protected]
China
Opticon Sensors Europe B.V., Shanghai Representative Office
tel: +86 21-64480881
/ email: [email protected]
Australia
Opticon Sensors Pty. Ltd.
tel: +61 (0)2-43402666
/ email: [email protected]
Brazil
Opticon Sensors Europe B.V., Latin American Office
tel: +55 11-8322 2244
/ email: [email protected]
Please contact OPTICON or your local dealer.
More product details, additional support, and configuration options (from the Universal Menu Book) are available at www.opticon.com.

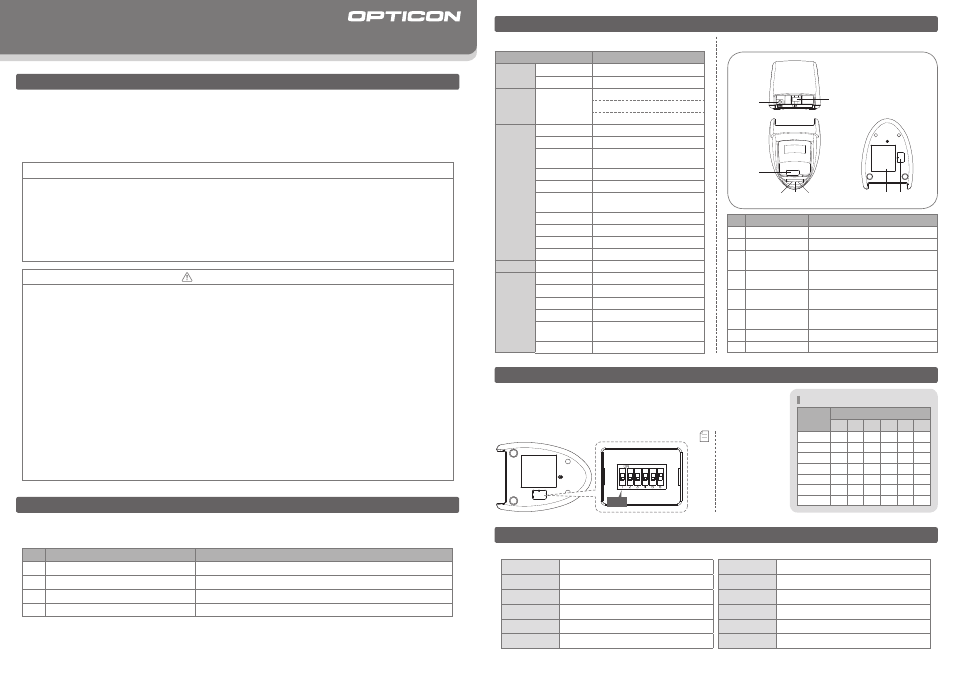

Quick Start Guide
• Read this quick start guide carefully before installing and/or using this product.
• Keep this quick start guide for future reference and store in a safe place.
• The CRD-1531 is a designated communication modem cradle for the DCL-1530 and the
DCL-1531 data collectors.
Introduction
CRD-1531
Copyright 2007, Opticon All rights reserved.
No.
Name
Function
① DC Power Supply Connector A connector a dedicated AC adapter.
② Modular Jack
A connector for telephone line.
③
IrDA Communication
Window
Window for the communication between
the data collector and the cradle.
④
Power Supply
Status LED (red)
This LED turns solid red when the power
is turned ON.
⑤
Data Reception
Status LED (green)
This LED turns solid green when there is
a data reception via IrDA.
⑥
Data Transmission
Status (Yellow)
This LED turns solid yellow when there is
a data transmission via IrDA.
⑦ DIP Switches
DIP switches to configure the baud rate of the IrDA.
⑧ Serial Label
■
Detailed View
⑧ ⑦
①
③
②
⑤
⑥
④
Overview
■
CRD-1531 Basic Specifications
Parameter
Specifications
Physical
Features
Size
(H)67.5
×(W)71.5×(D)98.5 mm Max
Weight
75g Max (excl. cable or AC adapter)
Display
Section
Status
LEDs
Power Status: red
Data Reception Status: green
Data Transmission Status: yellow
Interface
Section
Comm. Line
Telephone Line
Comm. Line Voltage 48V
Comm. Protocol ITU-T V.90, V.34,V.32bis, V.32, V22bis, V.22,
V.23, Bell 212A, V.21 or Bell 103 (selectable)
Data Compression Scheme ITU-T V.42bis or MNP5 (selectable)
Error Correction Scheme ITU-T V.42 or MNP2-4 (selectable)
Baud Rate
9600bps to 56kbps
Depends on the comm. protocol.
Modulation Method PCM, TCM, or QAM
Dialing
Pulse: 10/20pps, DTMF (selectable)
Modem Control AT Command
Line Connector RJ-11 6P Modular Connector
Power Supply Section Main Power
AC Adapter: 6V/2A
Durability Operating Temperature 0 deg. C to 40 deg. C
Operating Humidity 25% to 85% (non-condensing)
Storage Temperature -20 deg. C to 60 deg. C
Storage Humidity 20% to 90% (non-condensing)
Shock Endurance Dropped 6 times onto concrete from a
height of 75cm with no defects found.
Anti-static Electricity ± 15kV (no destruction)
CRD15319062-0-00
Notice
• This quick start guide may be revised or withdrawn at any time without prior notice.
• This quick start guide may not, in whole or in part, be copied, photocopied, reproduced, translated or
converted to any electronic or machine readable form without prior written consent of Opticon.
• Trademarks used are property of their respective owners.
• Under no circumstances shall Opticon be held responsible for any special, incidental, consequential or
indirect damages, howsoever caused.
Caution and Warning
Handling Instructions
• Do not attempt to disassemble, modify or update this product.
• Do not drop this product or put heavy items on this product.
• Do not insert foreign substances into this product.
• Do not use this product in the following areas:
- In areas exposed to direct sunlight for long periods of time.
- In dusty environments.
- Near water or other liquids, or in extremely high humidity.
- Near heat sources, such as radiators, heat registers, stoves, or other types of devices that produce
heat.
- Near microwaves, medical devices, or low-power radio stations.
• If water or any metallic object gets into this product and if you detect smoke or a strange smell coming
from the device, please stop operating the unit and contact your nearest dealer.
• When cleaning this product, rub gently with either a soft dry cloth or a damp cloth with mild
detergent.
Before Getting Started
■
What s in the Box
Confirm that you have the following items before getting started:
No.
Items
Function
1
Cradle
Designated communication cradle for the DCL-1530 and the DCL-1531.
2
AC Adapter Kit
Designated AC adapter kit for the CRD-1531.
3
Modular Cable and Splitter
Designated modular cable and a splitter for the CRD-1531.
4
Quick Start Guide
Provides product information and instruction guide.
Note: The number of accessories may differ depending on the product specification.
Please contact the nearest dealer if accessories are damaged or missing.
* The cradle DIP switch
settings override the host
settings. Set SW6 to OFF
to disable host settings.
* Please open the DIP
switch cover when using
the DIP switches.
* Please close the DIP
switch cover after using
the DIP switches.
Memo
Using the Cradle
■
DIP Switch (DIPSW) Configuration
Use the DIP switches on the bottom of the CRD-1531 to configure
IrDA baud rate setting.
Baud Rate
DIPSW
SW1 SW2 SW3 SW4 SW5 SW6
115.2Kbps
ON ON ON
Ч
Ч OFF
57.6Kbps
OFF ON ON
Ч
Ч OFF
38.4Kbps
ON OFF ON
Ч
Ч OFF
19.2Kbps
OFF OFF ON
Ч
Ч OFF
9.6Kbps
ON ON OFF
Ч
Ч OFF
4.8Kbps
OFF ON OFF
Ч
Ч OFF
2.4Kbps
ON OFF OFF
Ч
Ч OFF
DIPSW Table
SW1
