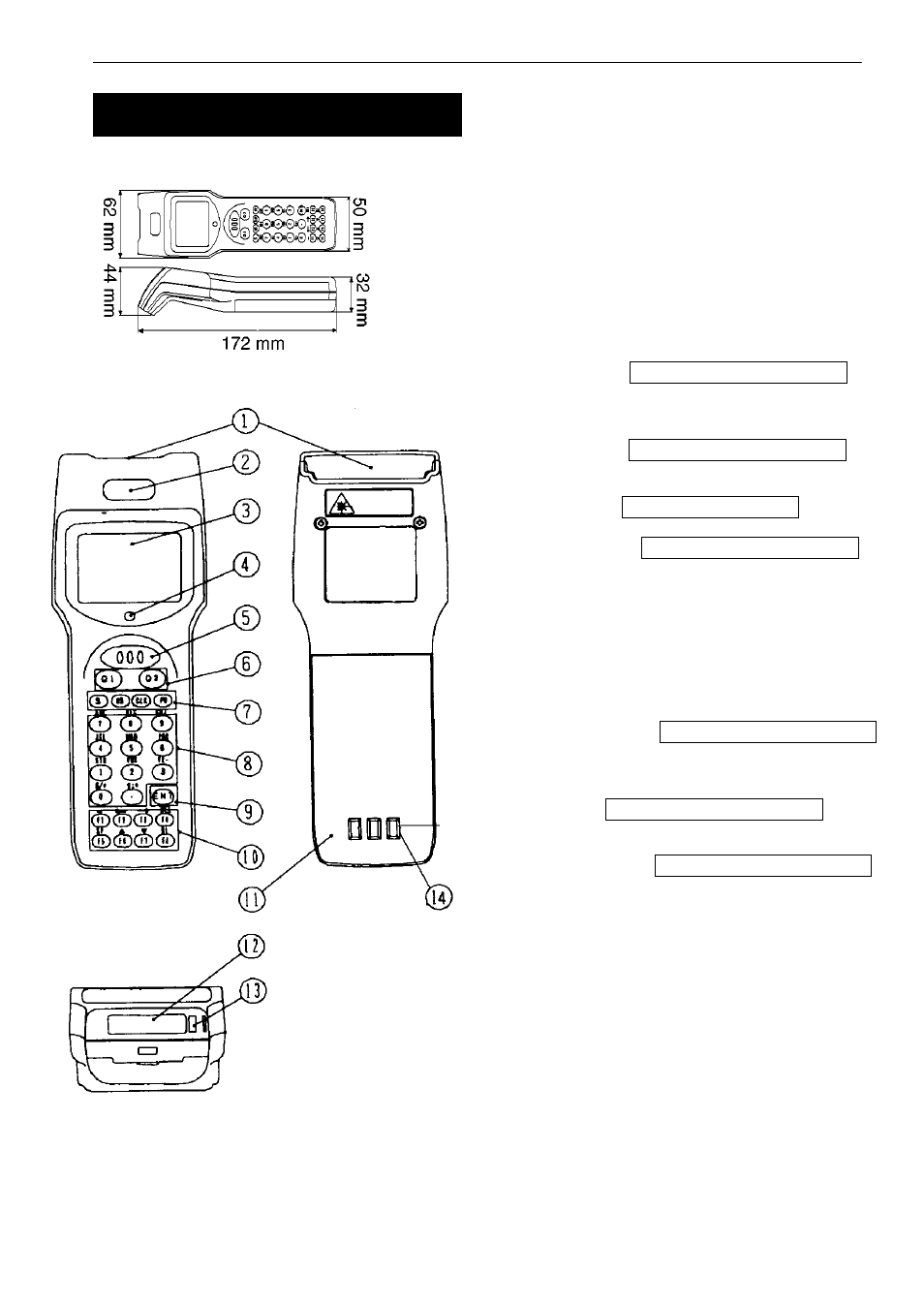

1. Reading window

laser beam for barcode reading will be
emitted from here

2. Optical interface window

for infra red communication

3. LCD Display

for displaying information

4. LED indicator

can be used to indicate results, for example
bar code reading /status of communication

5. Trigger key

definable by user’s application

typical use: read key, switches laser beam
on for barcode reading

6. Quick keys

definable by user’s application

typical use: menu scroll keys or yes/no input

7. Power key

right key, NOT definable

for switching power On/Off
Control keys

definable by user’s application

for controlling basic functions
typical use as below
CLR : Cancel input
BS

: Back space

S

: Shift key

“S”on the LCD display indicates
the terminal is in the shift mode

8. Character keys

definable by user’s application

typical use: for input of alpha-numeric and
punctuation characters

9. ENT key

definable by user’s application

typical use: for confirming input

10. Function keys

definable by user’s application

user programmable keys, to be used
together with shift key.
typical use as shown on next page

11. Battery case cover

for housing main battery

12. RS-232C connector

for connecting external device, or for system
expansion, through Opticon RS232 cable

13. Hand strap pillar

for attaching hand strap.

14. Charging contacts

only for the model with rechargeable
battery pack.

U

SER

S MANUAL

PHL 1700

LASER TERMINAL

/ IRU 1700

CRADLE

5

2.2.1 Dimensions of terminal

2.2.1 Details of terminal:

2.2 DETAILED VIEW
