U

SER

S MANUAL

PHL 1700

LASER TERMINAL

/ IRU 1700

CRADLE

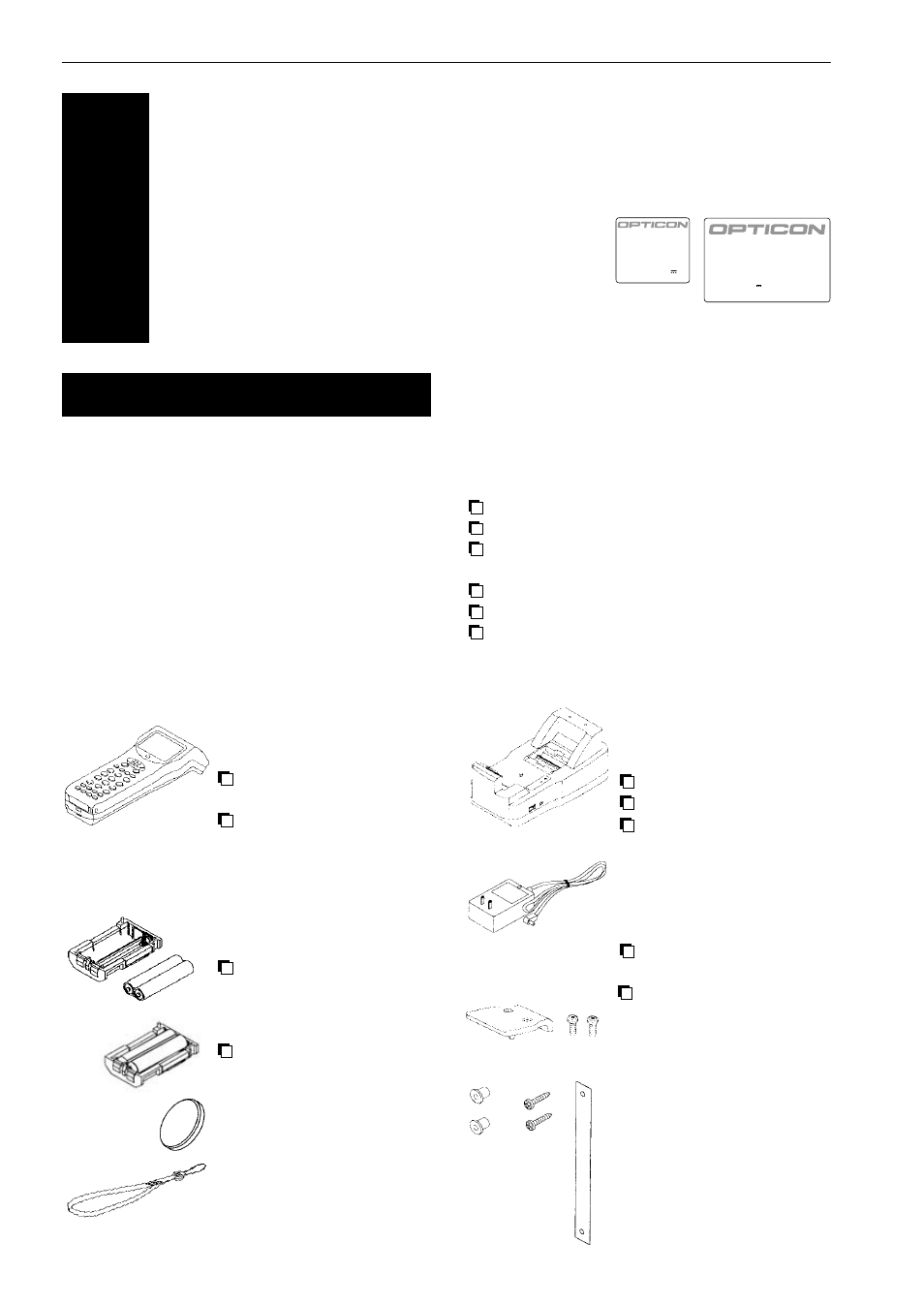

When you remove the packing, please check
for any physical damage. We recommend that
you save all packing material, as it should be
used whenever you need to ship your terminal
(eg. for service). Damage due to improper
repacking is not covered by the warranty.

Apart from the terminal or cradle, additional
items might be ordered and supplied.
If there are any missing parts please contact
your supplier.

PHL1700: Terminal

Terminal,
can be delivered as:

model with dry cell

batteries

model with rechargeable

battery pack

Battery case,
depending on the model,
there are 2 options:

Do not remove the label !
On the back of every unit you will find a label.
The label is attached by the manufacturer and
includes information about the function it
supports and a serial number.
Do not remove it.

Additional items
only supplied if ordered

RS232 download cable for terminal
Modem cable for terminal
Protective bag for terminal

RS232 cable for cradle
RS485 cable for cradle
Modem cable for cradle

IRU1700: Cradle

Cradle body:
can be delivered as:

model SV
model T
model T/C

AC adaptor
depending on the model:

9V DC adaptor

for model SV and T
5V DC adaptor

for model TC

Wall mount panel + screws

Walll mount spacer +
screws + base plate

Battery case with

2x AA-size dry cell
penlite batteries

NiMH rechargeable

battery pack (1 x)

Backup battery

Hand strap

4

INSTALLATION

2

2.1 UNPACKING

PHL1600-10

part nr:

O2500000010

serial nr: 000001
battery:

LR6x2 or Ni-MH,
CR2032x1

rating:

DC 3V,3V 2
supply 0.48W

IRU-1600 transceiver/charger
part nr:

O2520000015

serial nr: 000001

input: DC 5V 4A

SPECIMEN
