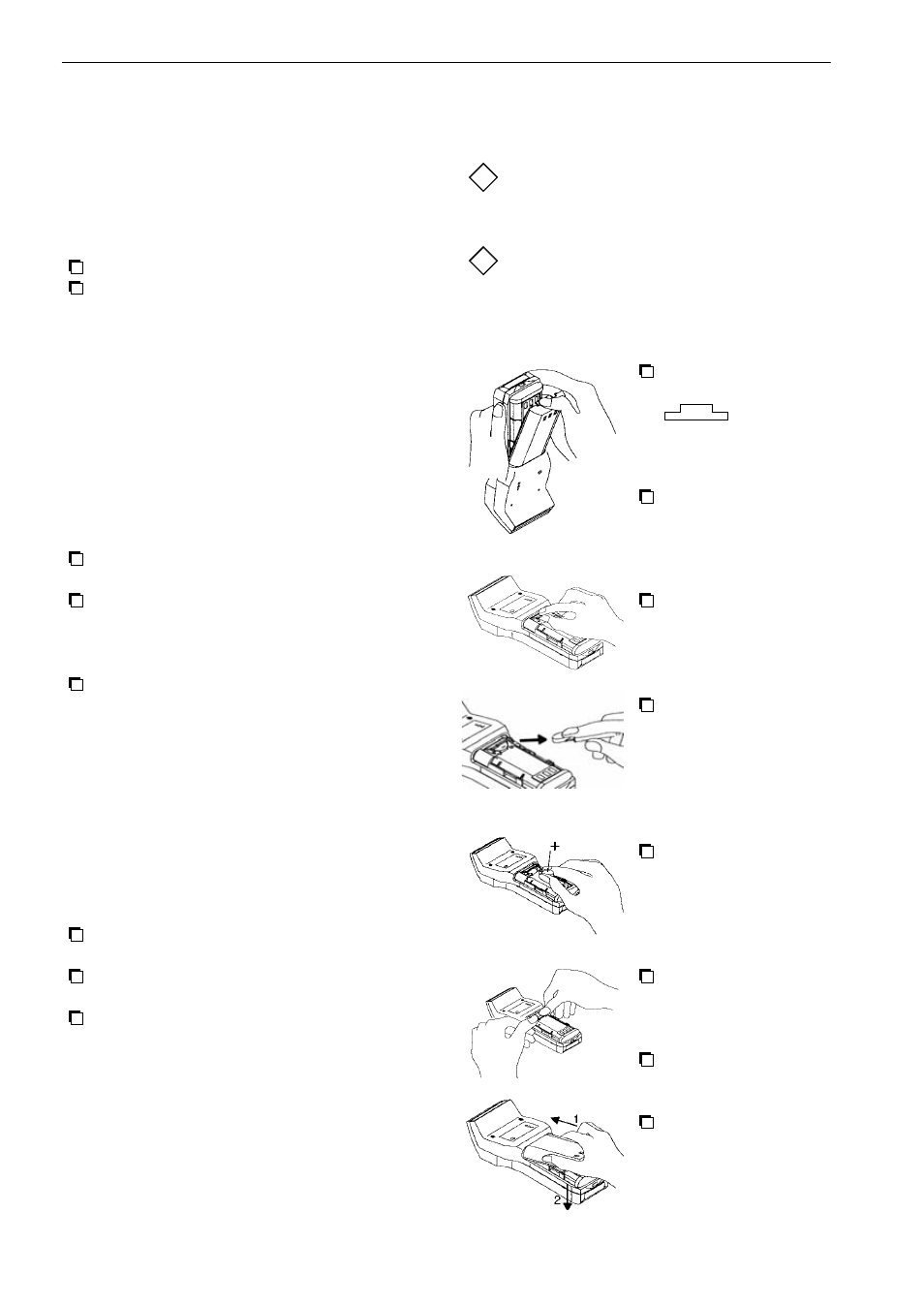

2.5.7 How to (re)place the backup battery
in the terminal?
Make sure that the main battery
is full enough while changing the
backup battery.
Only use CR2032 Li
(Lithium, button type) battery.
Remove the battery
case cover. Press the
shaped part
with some force, and
pull it up.
Remove the entire
battery case cover.
Open the lid of the
holder for the backup
battery.
If applicable:
Remove old battery,
using a pointed
object for easy
removal.
Make sure that the
positive side of the
(new) backup battery
is pointed upwards.
Place the backup
battery.
Close the holder
Close the battery
case cover.
!
!
U
SER
’
S MANUAL
PHL 1700
LASER TERMINAL
/ IRU 1700
CRADLE
12
2.5.6 How to recharge the rechargeable
battery pack in the cradle?
Charging battery pack inside terminal
Applicable for cradle model SV and TC:
Place the terminal in the cradle.
The battery will be charged during approx.
4 hours.
The application in the terminal determines the
indication of the charging procedure as (if
applicable) shown to the user.
Charging separate battery pack in cradle’s
spare slot
Applicable for cradle model TC:
Quick charge
Place the rechargeable battery pack in the
battery holder on the cradle.
After checking the battery status (indicated
by blinking green LED), the recharging
starts (indicated by by a solid blinking red
LED).
After approx. 1 hour the charging is
completed. (indicated by a solid blinking
green LED)
Refresh discharge
A rechargeable battery has an so called ‘memory
effect’, which deteriorates full charging when
recharging is executed before the battery
capacity becomes empty. When the memory
effect is recognised, activate the refresh
discharge. Use this feature sparingly, when too
often used, it may damage the battery.
Place the rechargeable battery pack in the
battery holder on the cradle.
Press the refresh switch and discharging
starts (indicated by an orange LED)
The discharge completes in approx. 4 hours,
and the quick charge follows immediately.
