Maintenance
When performing maintenance on the screed or engine,
follow all safety messages and rules for safe operation
stated at the beginning of this manual.
See the engine manual supplied with your machine for
appropriate engine maintenance schedule and
troubleshooting guide for problems
warning
Accidental starts can cause severe injury
or death.
always place the ignition switch in the
OFF position before performing any
maintenance.
Disconnect negative battery cable from
battery before servicing.
always allow the engine to cool
before servicing. never attempt any
maintenance work on a hot (muffler,
radiator, etc.) power unit.
warning
Certain maintenance operations or machine adjustments
require specialized knowledge and skill. Attempting
to perform maintenance operations or adjustments
without the proper knowledge, skills or training could
result in equipment damage or injury to personnel. If
in doubt, consult your dealer.
air cleaner (daily)
The Vanguard 26.5 hp diesel engine is equipped with a
replaceable, high-density papaer air cleaner element.
Check the air cleaner (Figure 39) daily or before starting
the engine. Check for and correct heavy buildup of dirt and
debris along with loose or damaged components..

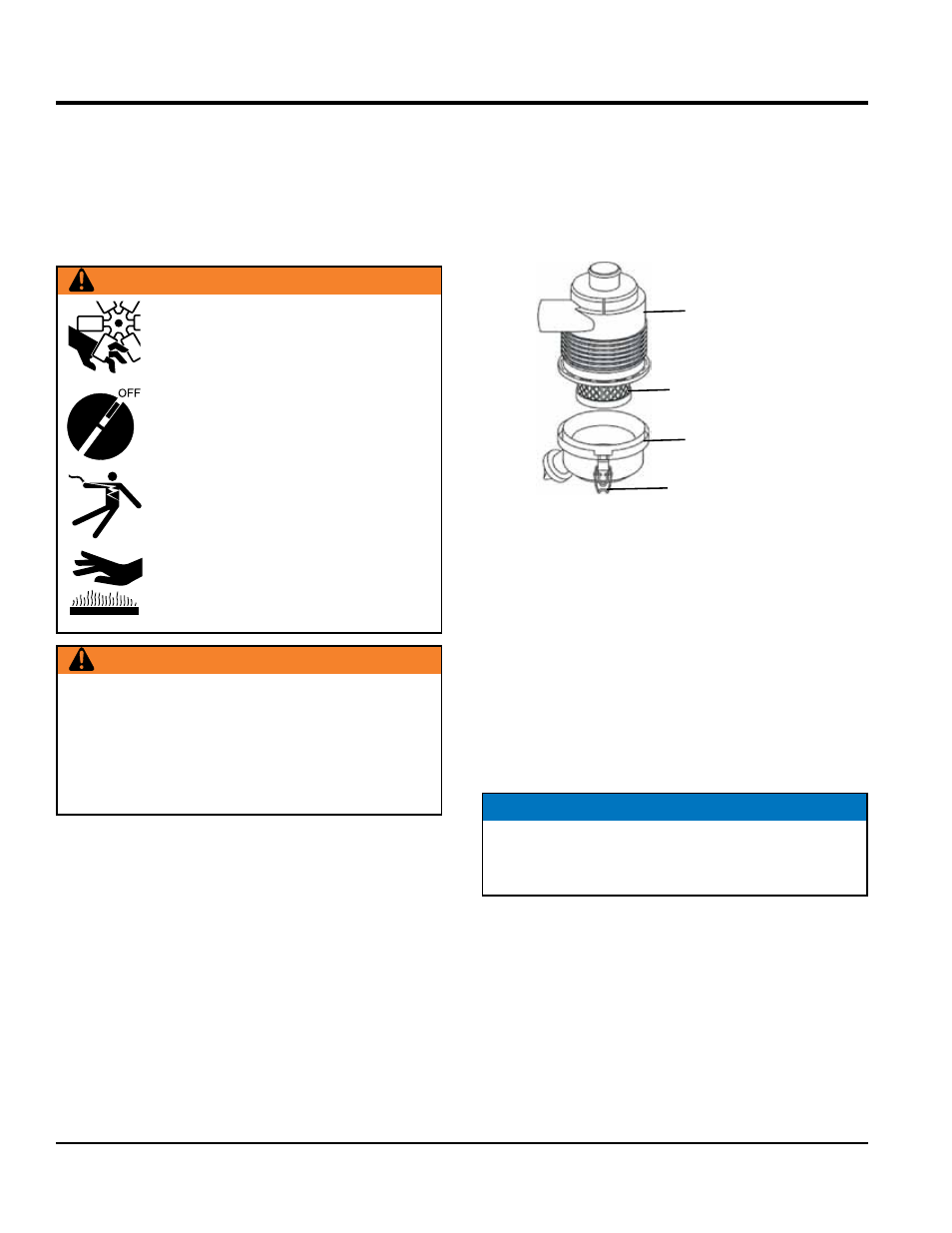

Figure 39. Air Cleaner Components
1. Unlock the cover clamps and remove cover.
2. Remove cartridge from air cleaner body.
3. Clean cartridge by gently tapping the end with the
handle of a screwdriver. Replace cartridge if very dirty
or damaged.
4. Carefully clean out the air cleaner cover.
5. Instal cartridge in body.
6. Install cover and lock cover clamps.
AIR CLEANER
BODY
CARTRIDGE
COVER
LATCHES
(COVER CLAMPS)
NOTICE
Operating the engine with loose or damaged air cleaner
components could allow unfiltered air into the engine
causing premature wear and failure.
