tranSpOrtinG anD liftinG prOceDureS
lifTing The screed
The following procedure and Figure 1 describe how to lift
the screed.
1. Utilize a spreader bar of proper length and lifting
capacity. Secure lifting straps from both ends of the
spreader bar to each of the four (4) lift loops on the
warning
never lift the screed with the power unit attached.
always remove the power unit from the screed before
lifting or transporting.
screed. There are two (2) lift loops on the operator
end and two (2) lift loops on the engine end of the
screed.
2. Connect five (5) lifting cables from the spreader bar
to the lifting hook of a crane or forklift. Ensure that
the lifting hook and chain are of appropriate lifting
capacity.
3. Use crane or forklift to hoist screed onto a flatbed truck
for transporting.
SPREADER BAR

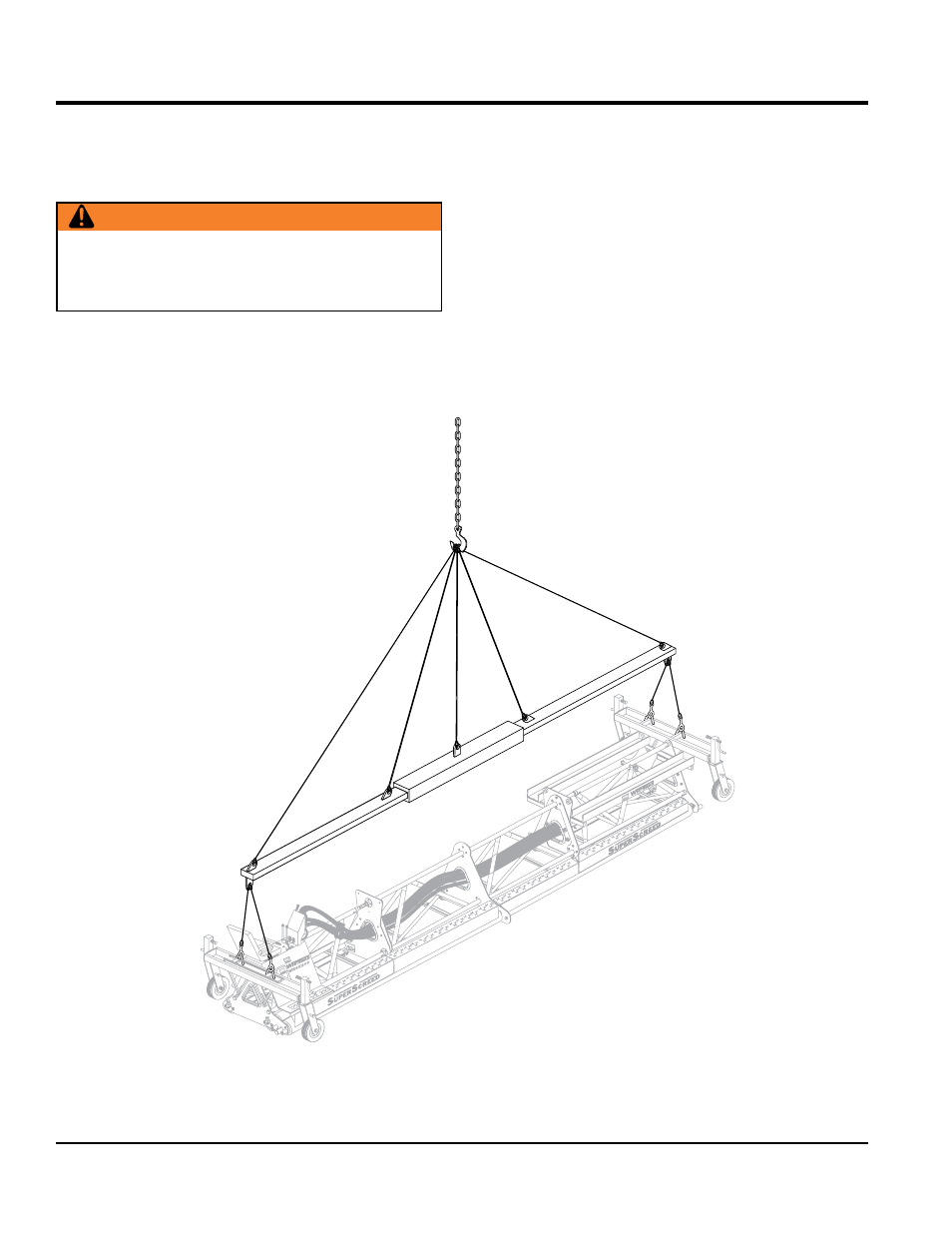

Figure 1. Lifting the Screed
