page 46 — wrs5200 hydraulic roller screed • operaTion manual — rev. #0 (10/22/10)
OperatiOn
The following instructions are intended as a basic guide
for machine start-up and operation. Following these
instructions will help preserve and maintain the life of this
equipment.
Before sTarTing
fuel check
do noT smoke while refuling, diesel fuel is highly
flammable and can be dangerous if mishandled.
1. To check the engine fuel level, place the power unit on
a secure flat surface with the engine stopped.

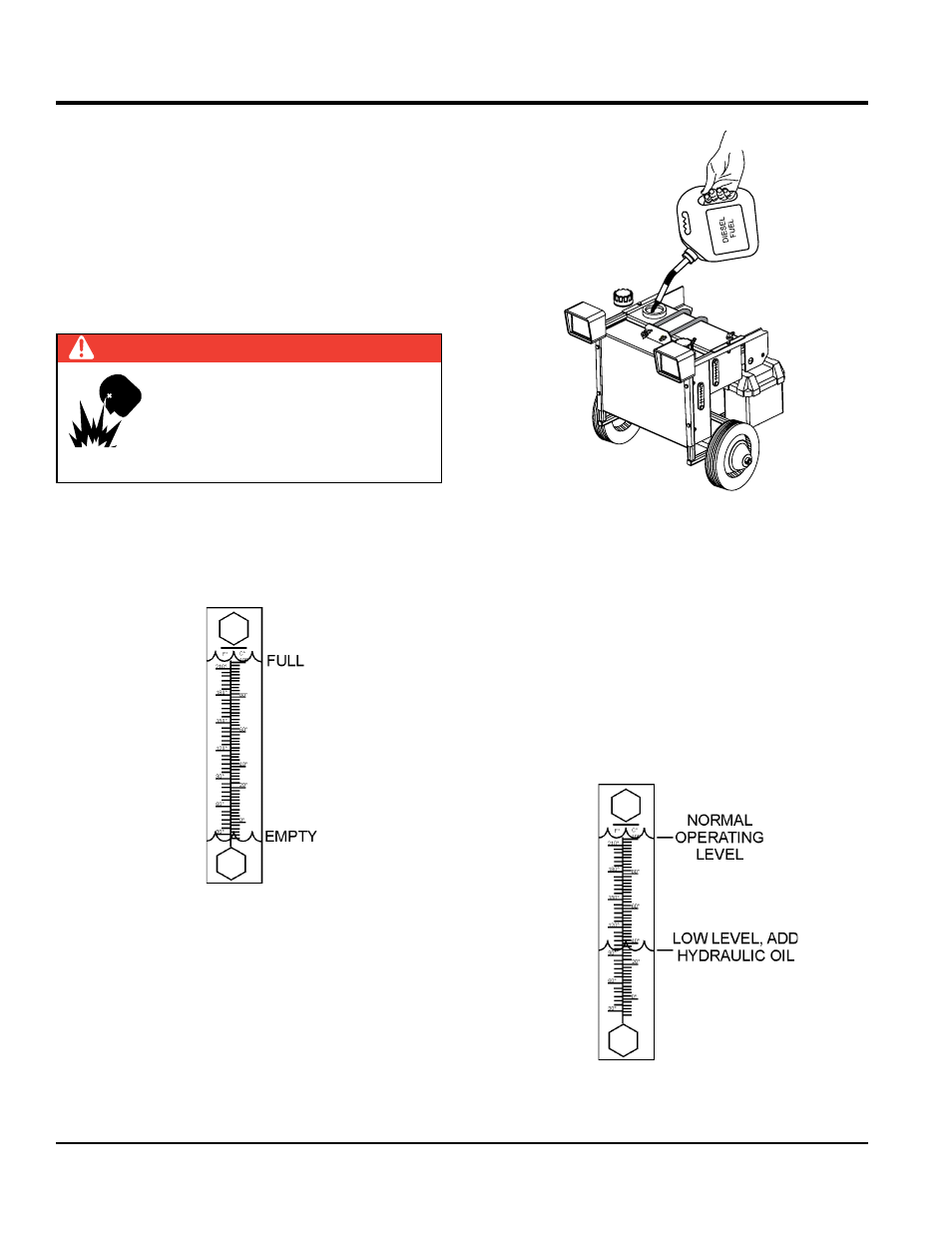

2. Read the fuel gauge (Figure 34) located on the side of
the fuel tank.
Figure 34. Fuel Sight Gauge
3. If fuel level is low, remove fuel filler cap (Figure 35) and
fill with #2 clean fresh diesel fuel. Wipe up any spilled
fuel immediately.
danger
Fuel spillage on a hot engine can cause
a fire or explosion. If fuel spillage occurs,
wipe up the spilled fuel completely to
prevent fire hazards. never smoke
around or near the generator.
Figure 35. Adding Fuel
4. After replenishing fuel, make sure cap is securely
tighten to fuel tank.
hydraulic oil check
1. To check the hydraulic oil level, place the power unit on
a secure flat surface with the engine stopped.
2. Visually inspect the hydraulic oil sight gauge (Figure
36) located on the side of the hydraulic oil tank. For
normal operation the fluid level should be visiable at
the top of the sight glass.
Figure 36. Hydraulic Sight Gauge
